Product Overview

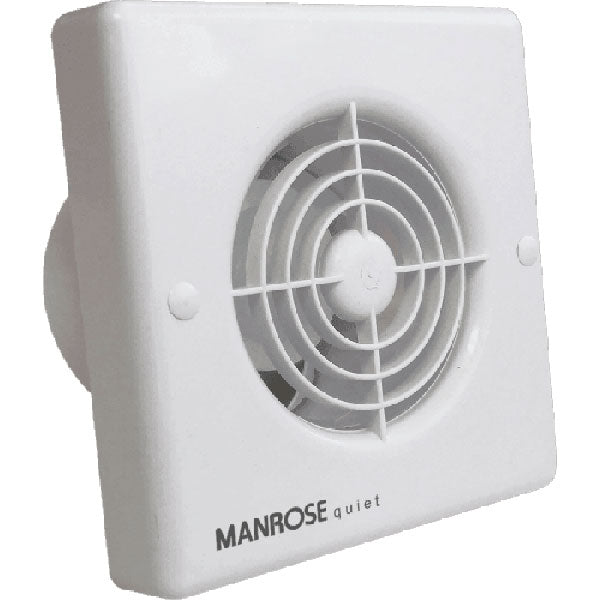

Manrose QF100P 4.8W Quiet Axial Bathroom Extractor Fan with Pullcord Switch

The Manrose Quiet Fan is the latest in domestic ventilation to incorporate a high extraction whilst producing an incredibly quiet running volume. Designed for wall and ceiling mounting, this comprehensive range is ideal for bathrooms and toilets. The unit also comes complete with a performance enhancing turning vane system located in the spigot to improve performance by maintaining a high output.

Specification

• Mounting: Wall
• Noise: 27 dB(A)
• Pull Cord: Yes
• Hole Size: 4"
• Type of Extractor: Axial
• Number of Speeds: 1
• Extraction Rate: 21 litres per second
• Maximum Pressure: 23 p.a.
• Fan Speed: 2300 r.p.m.
• Maximum Operating Temperature: 40°C
• High quality ball bearing, long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years
• Manufactured using high ABS thermoplastics for strength and durability
• Decibel Level of ONLY 27dB(A) at 3m. Over 60% reduction in comparison to standard 4” (100mm) domestic fans
• An impressive extraction rate of 75m³/hr, 21 litres per second
• Low energy motor with a maximum consumption of 4.8 Watts
• The most environmentally friendly fan in the Manrose range with an SFP of 0.24W/l/s
• Complete with integral backdraught shutters
• Complies with both Part F & L
• Dimensions: Height: 163mm x Width: 163mm x Depth: 111mm
•


Downloads

Download QF100P Product Datasheet

Specification

Airflow	75m³/h
Applicable Area	Bathroom, Toilet
Backdraft Shutter	Yes
Extraction Rate Litres Second	21L/s
Extractor Type	Axial
Fan Size Diameter	4in
Finish Or Colour	White
IP Rating	IP44
Lip Depth	28mm
Minimum Voltage	220V
Mounting	Ceiling, Wall
MPN	QF100P
Number Of Speeds	1
power consumption	7W
Pull Cord	Yes
Timer	No
Voltage	240V
Height	163mm
Length	111mm
Weight	0.67kg
Width	163mm
