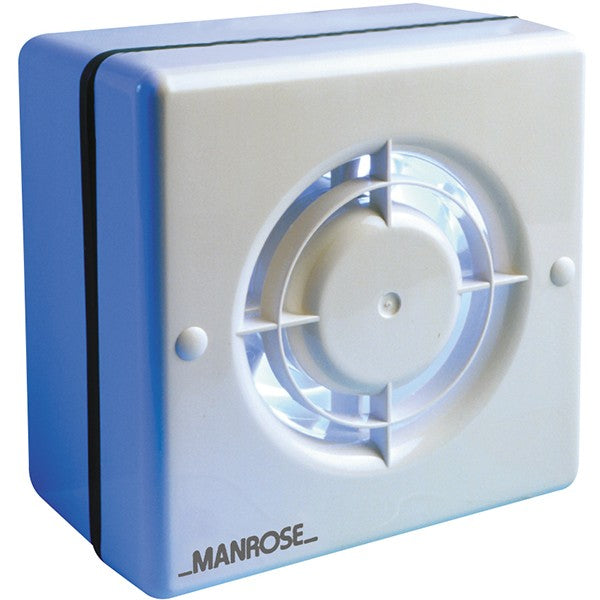

Manrose WF100P 100mm Axial Extractor Window Fan with Pullcord - Return Unit

Quick Find Code: WF100P/RETA

3 Year Warranty
Free Delivery on orders over £50 (excluding Highlands and Islands)

Specifications

Airflow85m³/h
Applicable AreaBathroom, Toilet
Backdraft ShutterYes
Extraction Rate Litres Second23L/s
Extractor TypeAxial
Fan Size Diameter4in

Manrose WF100P 100mm Axial Extractor Window Fan with Pullcord - Return Unit

Quick Find Code: WF100P/RETA

3 Year Warranty
Free Delivery on orders over £50 (excluding Highlands and Islands)

Specifications

Airflow85m³/h
Applicable AreaBathroom, Toilet
Backdraft ShutterYes
Extraction Rate Litres Second23L/s
Extractor TypeAxial
Fan Size Diameter4in

£39.95
£33.95 (inc. VAT)

Show ex. VAT

Buy more, save more!

Looking for a new one?

Manrose 100mm Axial Extractor Window Fan with Pullcord - WF100P

Used Grades Explained

Grade A Unit in excellent condition, possible light use, all extras included, packaging intact but may be marked. full warranty
Grade B Unit used but fully functional, possible light cosmetic damage to unit, all accessories included, packaging may be damaged. 6 months warranty
Grade C Unit used with cosmetic damage or dents, possible missing accessories, packaging damaged or unoriginal. 6 months warranty

Product Overview

This comprehensive range of 4" fans from Manrose have been designed for Wall, Ceiling or Window mounting for use in bathrooms, toilets or kitchens. Quiet and efficient the 100mm (4") series has an impressive extract rate of 85m³/hr, 23 litres per second. The units are are all manufactured using high ABS thermoplastics for strength, durability, aesthetics and easy cleaning. WF100 Series designed for window mounting through a standard 115-155mm Ø hole.

  • Single phase consuming 15 Watts
  • Designed for wall, ceiling or window mounting, this comprehensive range offers a wide selection of models for use in bathrooms and toilets
  • Quiet and efficient, the 100mm (4") series has an impressive extract rate of 85m3/hr, 23 litres per second, and is available in the eleven options detailed opposite
  • The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning
  • Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance- free life
  • Designed to comply with the Building Regulations on Ventilation (F1)
  • Mounting: Wall
  • Noise: 41.0 dB(A)
  • Pull Cord: Yes
  • Hole Size: 4"
  • Type of Extractor: Axial
  • Number of Speeds: 1
  • Extraction Rate: 23 litres per second
  • XF/WF100 Series 85m3/hr, 23 l/s
  • 100mm (4")
  • Maximum pressure: 20 p.a.
  • Fan speed: 2400 r.p.m.
  • Maximum operating temperature: 40ºC.
  • Dimensions: Height: 163mm x Width: 163mm x Depth: 90mm

Criteria
  • Application: Bathroom
  • Warranty: 3 Years
  • Wattage: 15
  • Voltage: 220-240V - AC. 50Hz
  • Guarantee: 3 Years
  • Width: 163
  • Height: 163
  • Colour: White
  • Manufacturer Code: WF100P

Specification

Airflow85m³/h
Applicable AreaBathroom, Toilet
Backdraft ShutterYes
Extraction Rate Litres Second23L/s
Extractor TypeAxial
Fan Size Diameter4in
Finish Or ColourWhite
Installation KitYes
IP RatingIP24
Lip Depth30mm
Minimum Voltage220V
MountingWindow
MPNWF100P
Number Of Speeds1
power consumption14W
Pull CordYes
Voltage240V
Height163mm
Weight1kg
Width163mm
