Product Overview

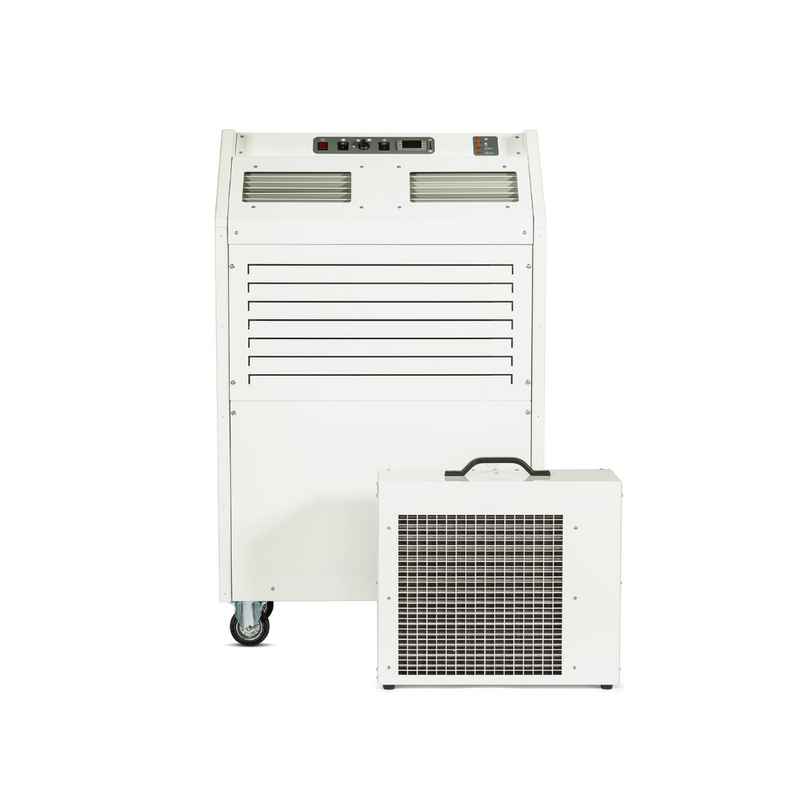

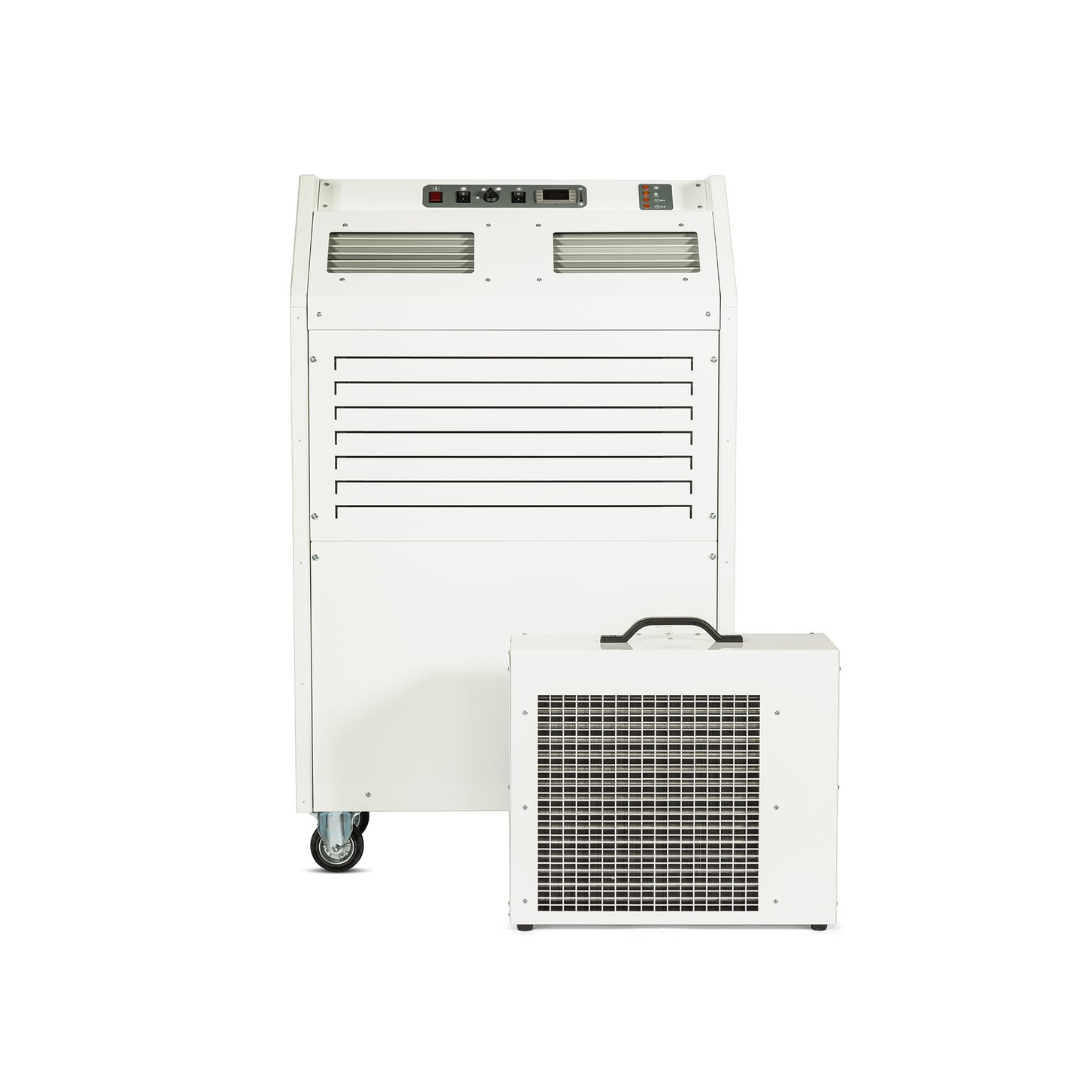

As a water cooled split air conditioner, the MCSe7.3 is one of the most efficient and effective form of portable air conditioning available, as it removes the de rating effect of the condenser by using a plate heat exchanger instead. This split unit also helps to lower the sound as it moves one of the fans outside of the area that requires cooling.

This low GWP air conditioner has been upgraded to see it meet modern environmental standards while still promising up to 7.4kW of cooling without the need for ducting. This makes the MCSe7.3 ideal for use in data centres when taking into consideration that the main unit and outdoor section can be up to 35M apart.

For great usage, the digital thermostatic control, twin louvre directional and variable speed control can delivered completely tailored cooling exactly where you need it, while a status panel lets you know what the units is doing at a glance and low temperature operation is also included as standard.

Specifications:

• Nominal duty 7.4kW
• Nominal running current 12.5A
• Digital thermostatic control
• Max umbilical length 35m
• Lockable castors
• Supply 13A 230v
• Weight indoor unit 90kg (wet)
• Weight heat exchanger 22kg (wet)
• Dimensions 1308x805x382mm
• Operating range 15°c-35°c
• Main unit airflow (max) 1,100m³
• Heat exchanger airflow (max) 3,100m³
• Ideal for server rooms and data centres
• Noise (Indoor/Outdoor) 65/64dB
• Max water temp 50c
• High efficiency EC fan technology
• IP Rating (Indoor/Outdoor): IP2X/IP24
