Product Overview

Please note, additional warranty information:

• The Compressor = 5 years warranty
• The rest of system = 3 years warranty

THIS WARRANTY IS AN EXTENSION TO THE STANDARD MANUFACTURER’S WARRANTY OF 1 YEAR. PROVIDED THE CONDITIONS BELOW ARE MET, THE WARRANTY CAN BE EXTENDED WITH AIR CONDITIONING CENTRE WITHIN THE FIRST YEAR OF PURCHASE.



Warranty applies to Installed systems only. Please see conditions below:

• Must be installed by qualified F Gas Engineer, with Installation Certificate & receipt.
• Must have an annual service with a valid Invoice.
• Copy of Installation Certificate and each annual service invoice must be lodged with us as soon as available to uphold warranty conditions.

·         Remote control

·         Adjustable fan speeds for rapid cooling or minimum noise

·         Heat-pump model provides heating as well as cooling

·         Oscillating air vanes for dissipation of cold air

·         A timer feature that will turn the unit on and off automatically

·         High efficiency air filters to remove odours and particles

·         Anti-mould coating for hygienic operation

·         Digital display to show operational settings and temperature

·         A “Smart Air” feature that will recall previous settings at the push of a button

• Model No: KFR-26YW/X1C
• Power supply (Ph-V-Hz): 220-240V~50Hz¸ 1Ph
• Power Rating (Ph-V-Hz): 1¸ 220-240¸ 50
• Capacity Max BTU/h (Cooling) Kw: 9000 / 2.8 (3.3)
• Capacity Max BTU/h (Heating) Kw: 9000 / 2.9 (3.4)
• Power Input (W) (Cooling~Heating): 800~820
• Current Input (A) (Cooling~Heating): 3.8~3.9
• EER (BTU/hr W): 6.1
• COP (W/W): 4.0
• Dehumidification L/h: 1
• Indoor Noise Level dB (A) (Max) Hi/Med/Lo: 30-38
• Outdoor Noise Level dB (A) (Max): 52
• Indoor Airflow (m3/h) (Hi/Med/Lo): 500 Max
• Max. Current Rating (A) Fuse Rating (Type D): 3.9
• Net Dimension (mm) Indoor (WxDxH): 800x190x280
• Unit Dimension (mm) Outdoor (WxDxH): 715x235x540
• Net/Gross Weight Indoor (Kg): 10
• Net/Gross Weight Outdoor (Kg): 30
• Max Room Size (m2): 13-25
• Max Conservatory Size (m2): 12
• Connecting Pipe Length (m): 4
• Pipe Diameter Liquid/Gas (Inch): 1/4″ & 3/8″
• Selectable Temp Range °C: 17-30
• Minimum Operating Temp (Cooling/Heating) °C: -5 / -10
• Automatic Restart after Power Failure: Yes
• Automatic Refrigerant Leak Detection & Self Diagnosis Systems: Yes

Short Description

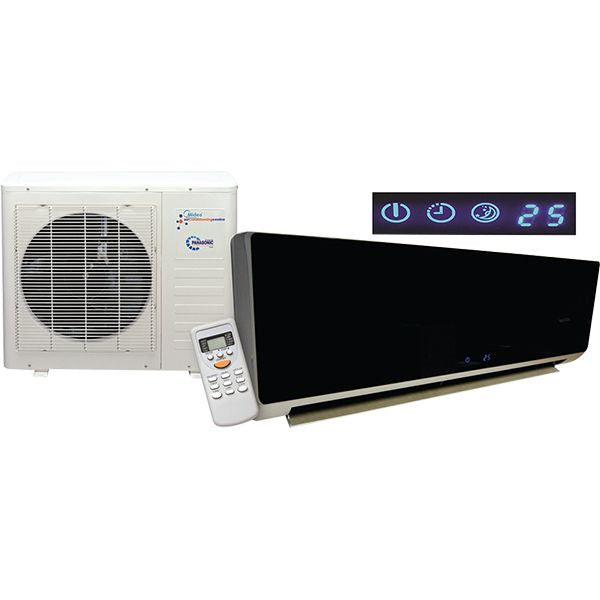

KFR-26YW/X1C Y Series Inverter Air Conditioning Unit - 9000 BTU

Downloads

Download ACCKFR26YWA Product Manual

Specification

Airflow	500
BTU	9000
Cost Pence Per Hour	21.6
Finish Or Colour	Black
Fixed Or Portable	Fixed
For Conservatories Upto m2	12 M²
For Rooms Upto m2	25 M²
Heating Function	No
LCD Display	Yes
Louvre	Yes
Minimum Voltage	220 v
Mounting	Wall
Noise Level	52 Db
Noise Level Maximum	52 Db
Noise Level Minimum	30 Db
power consumption	0.8 kW
Power Output	2.6 kW
Refrigerant	R410a
Remote Control	Yes (Supplied)
Smart Home Compatible	No
Timer	Yes
Voltage	240 v
Depth	235 mm
Height	540 mm
Weight	30 KG
