Product Overview

Please note, additional warranty information:

• The Compressor = 5 years warranty
• The rest of system = 3 years warranty

THIS WARRANTY IS AN EXTENSION TO THE STANDARD MANUFACTURER’S WARRANTY OF 1 YEAR. PROVIDED THE CONDITIONS BELOW ARE MET, THE WARRANTY CAN BE EXTENDED WITH AIR CONDITIONING CENTRE WITHIN THE FIRST YEAR OF PURCHASE.



Warranty applies to Installed systems only. Please see conditions below:

• Must be installed by qualified F Gas Engineer, with Installation Certificate & receipt.
• Must have an annual service with a valid Invoice.
• Copy of Installation Certificate and each annual service invoice must be lodged with us as soon as available to uphold warranty conditions.



Features

• Remote control
• Adjustable fan speeds for rapid cooling or minimum noise
• Heat-pump model provides heating as well as cooling
• Oscillating air vanes for dissipation of cold air
• A timer feature that will turn the unit on and off automatically
• High efficiency air filters to remove odours and particles
• Anti-mould coating for hygienic operation
• Digital display to show operational settings and temperature
• A “Smart Air” feature that will recall previous settings at the push of a button


Short Description

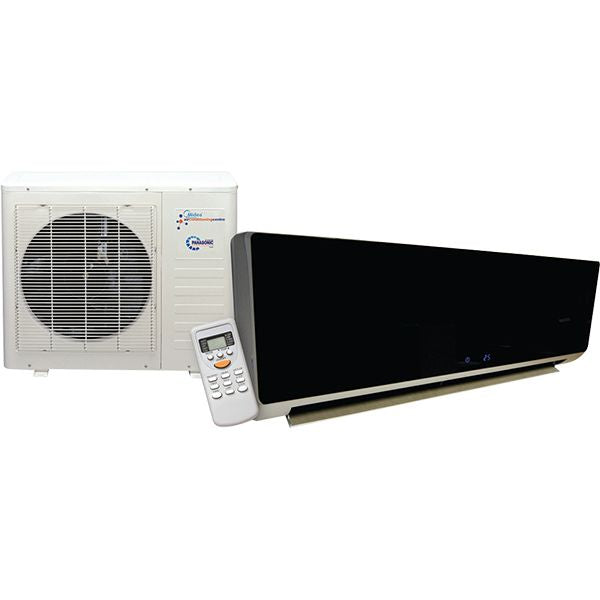

KFR-56YW/X1C 18,000 BTU Y Series Black Gloss Inverter Wall Split Air Conditioning Unit

Specification

• Model No: KFR-56YW/X1C
• Power supply (Ph-V-Hz): 220-240V~50Hz¸ 1Ph
• Power Rating (Ph-V-Hz): 1¸ 220-240¸ 50
• Capacity Max BTU/h (Cooling) Kw: 18000 / 5.1 (5.5)
• Capacity Max BTU/h (Heating) Kw: 18000 / 5.2 (5.7)
• Power Input (W) Cooling~Heating: 1580~1440
• Current Input (A) Cooling~Heating: 7.2~6.6
• EER (BTU/hr.W): 6.1
• COP (W/W): 4.0
• Dehumidification L/h: 1.9
• Indoor Noise Level dB (A) (Max) Hi/Med/Lo: 42-46
• Outdoor Noise Level dB (A) (Max): 55
• Indoor Airflow (m3/h) (Hi/Med/Lo): 850 Max
• Max. Current Rating (A) Fuse Rating (Type D): 7.2
• Net Dimension (mm) Indoor (WxDxH): 900x215x292
• Unit Dimension (mm) Outdoor (WxDxH): 850x295x605
• Net/Gross Weight Indoor (Kg): 14
• Net/Gross Weight Outdoor (Kg): 45
• Max Room Size (m2): 25-45
• Max Conservatory Size (m2): 25
• Connecting Pipe Length (m): 4
• Pipe Diameter Liquid/Gas (Inch): 1/4″ & 1/2″
• Selectable Temp Range °C: 17-30
• Minimum Operating Temp (Cooling/Heating)°C: -5 / -10
• Automatic Restart after Power Failure: Yes

Specification

Airflow	850
Auto Restart	Yes
BTU	18000
Cost Pence Per Hour	43.2
Finish Or Colour	Black
Fixed Or Portable	Fixed
For Conservatories Upto m2	22 M²
For Rooms Upto m2	45 M²
Hose Length	4 Meter
LCD Display	Yes
Louvre	Oscillating
Minimum Voltage	240 v
Mounting	Wall
Noise Level	55 Db
Noise Level Average	46 Db
Noise Level Maximum	55 Db
Noise Level Minimum	42 Db
power consumption	1.6 kW
Power Output	5 kW
Refrigerant	R410a
Remote Control	Yes (Supplied)
Timer	Yes
Voltage	240 v
Depth	900 mm
Height	605 mm
Weight	45 KG
