Product Overview

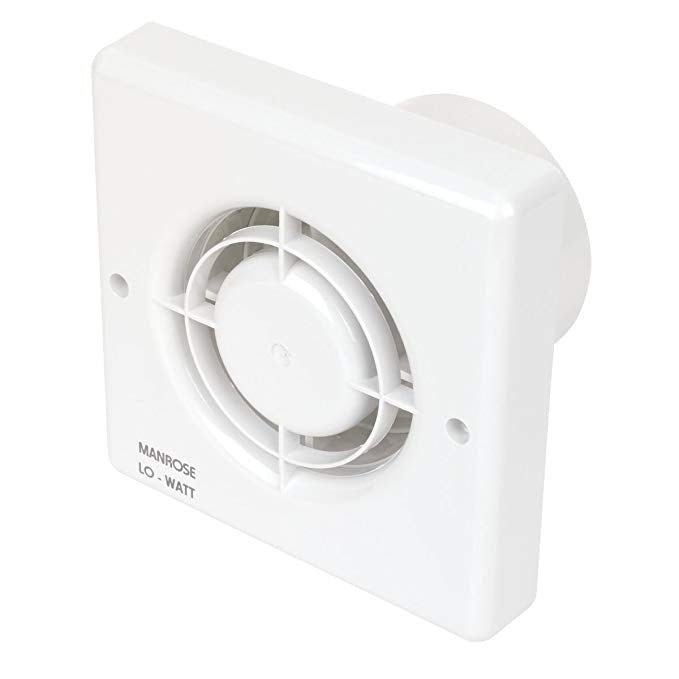

The Manrose Lo-Watt range of 100mm (4") Bathroom/ Toilet Fans has been designed with energy saving in mind. Using brushless motors the Lo-Watt uses just 4.3 watts but still extracts an impressive 75m³/hr.Attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning, designed for easy installation and can be wall or ceiling mounted.There are several options available; Standard model for remote switching, integral Pullcord units, and Timer models which incorporate an electronic over-run timer which may be set up to 20 minutes. Humidistat Control models are also available which are designed to switch on the fan as the humidity rises in the bathroom and off as it drops.

Features

• The Lo-Watt fan is Designed for wall mounting only
• Standard/timer/humidity versions available
• Reduces power consumption
• Uses up to 80% less energy compared to a standard fan
• Lower running costs
• SELV (Safety Extra Low Voltage) models also available
• Quiet and efficient, the 100mm (4”) series has an impressive extract rate of 75m³/hr, 21 litres per second
• The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning
• Designed to comply with the Building Regulations on Ventilation (F1)
• SFP (Specific Fan Power) 0.29

Short Description

Manrose 4.3W LoWatt Axial Bathroom Extractor Fan with Humidity Timer

Specification

• Single Phase consuming 4.3 Watts.
• Voltage: 220-240V - AC. 50Hz
• Maximum pressure: 20 p.a
• 75m3/hr at 21 litres per second
• Fan speed: 3123 r.p.m
• Sound volume: 38.0 dB(A)
• Maximum operating temperature: 45ºC
• Colour: White
• Mounting: Wall
• Application: Bathroom
• Hole Size: 4"
• Type of Extractor: Axial
• Number of Speeds: 1
• Extraction Rate: 21 litres per second
• Dimensions: Height: 163mm x Width: 163mm x Depth: 97mm

Specification

Applicable Area	Bathroom, Toilet
Extractor Type	Axial
Fan Size Diameter	100 mm
Fan Speeds	1
Finish Or Colour	White
Humidistat	Yes
IP Rating	IP24
Lip Depth	30 mm
Minimum Voltage	220 v
Mounting	Wall
power consumption	4.3 w
SELV	Yes
Timer	Yes
Voltage	240 v
Height	163 mm
Weight	0.6 KG
Width	163 mm
