Manrose Backdraught Shutter 4" 100mm With One Spring And Two Shutters - 1230

Product Overview

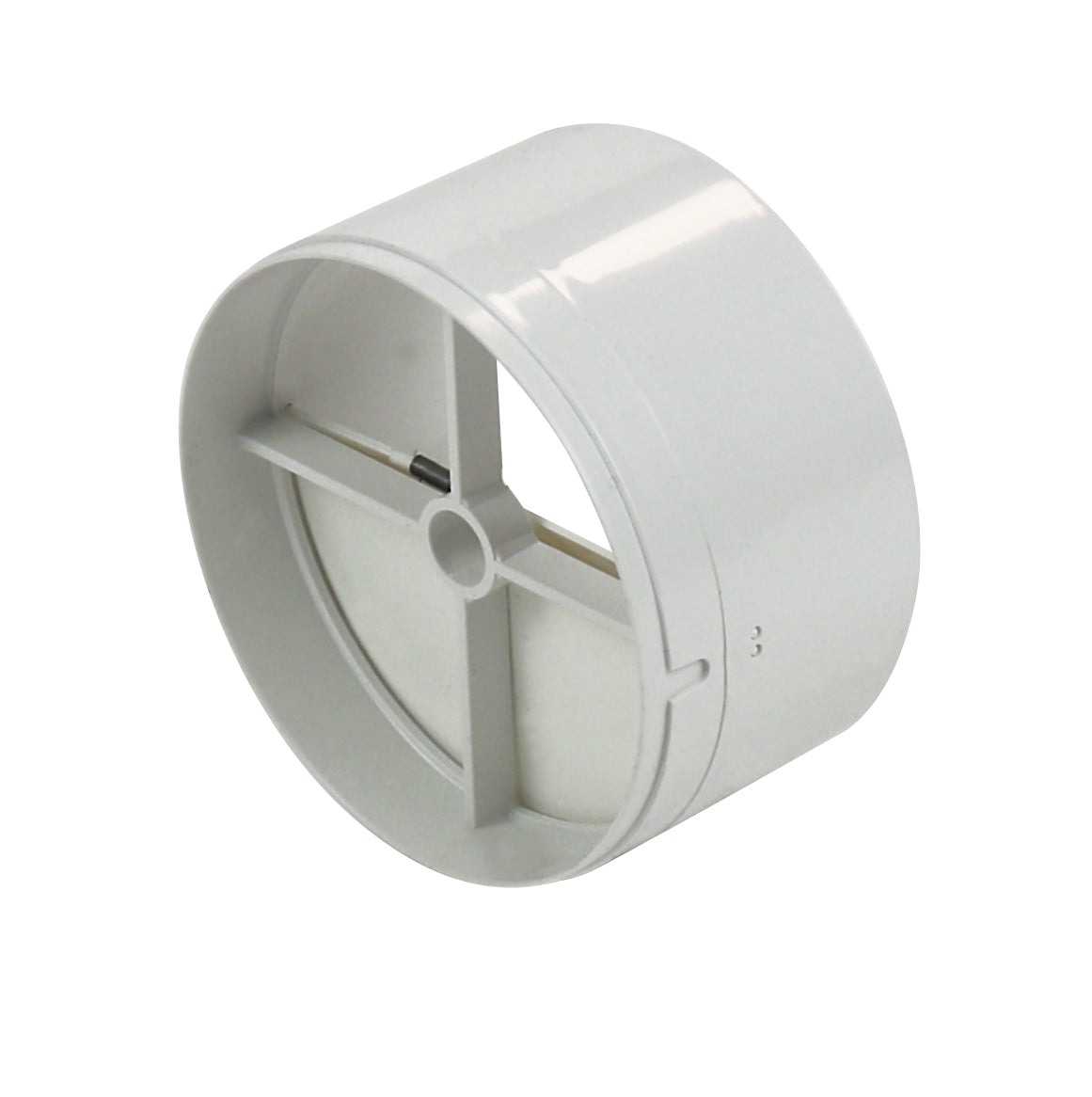

Manrose 1230 Backdraft Shutter Non-Return Valve 100mm

The Manrose 1230 In-Line Backdraught Shutter is an essential component for any efficient ventilation system. Designed to prevent backflow of air when the fan is not in use, this shutter ensures that your ventilation system operates smoothly and effectively. Its robust construction and reliable performance make it a valuable addition to both residential and commercial ventilation setups.

This backdraught shutter is designed for easy installation, fitting seamlessly into standard 100mm ducting systems. It features a spring-loaded mechanism with two shutters that open and close automatically, allowing air to pass in only one direction. This prevents unwanted drafts and helps maintain a comfortable indoor environment. The Manrose 1230 is compatible with a range of Manrose fans, including the XF100 and SF100 series, providing versatility and convenience.

Constructed from high-quality materials, the Manrose 1230 In-Line Backdraught Shutter is built to last. Its low-profile design allows it to be concealed when installed, maintaining the aesthetic appeal of your space. Whether you are upgrading your existing ventilation system or installing a new one, this backdraught shutter offers a perfect blend of functionality and durability.

Downloads

Download 1230 Product Datasheet

Specification

Cutout Diameter	100 mm
Duct Size Diameter	100 mm
Finish Or Colour	White
Material	Plastic
MPN	1230
Old GTIN	5020953306122
Diameter	100 mm
Length	56 mm
Weight	0.05 kg
