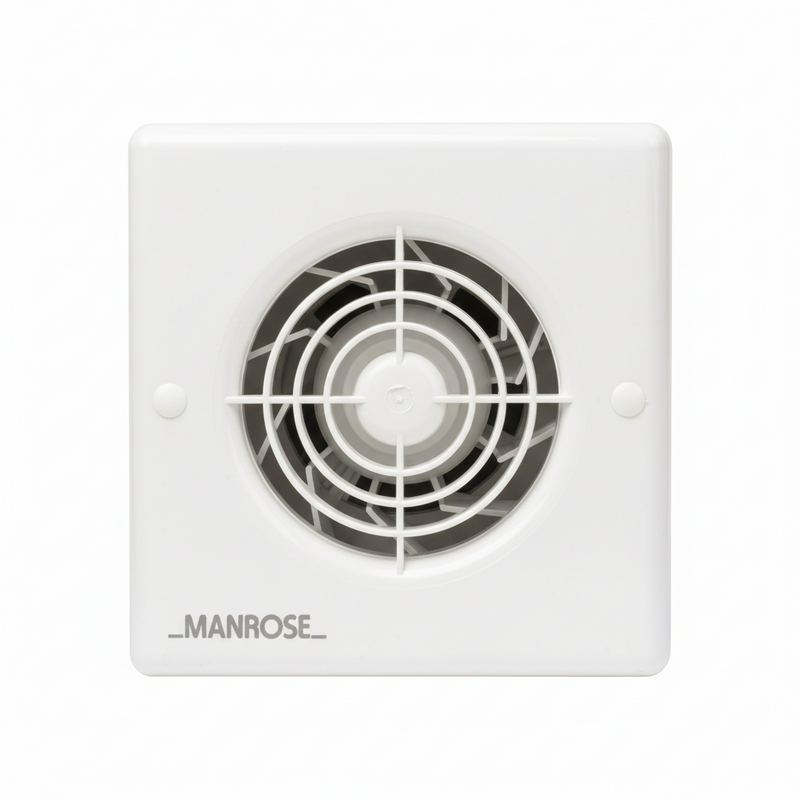

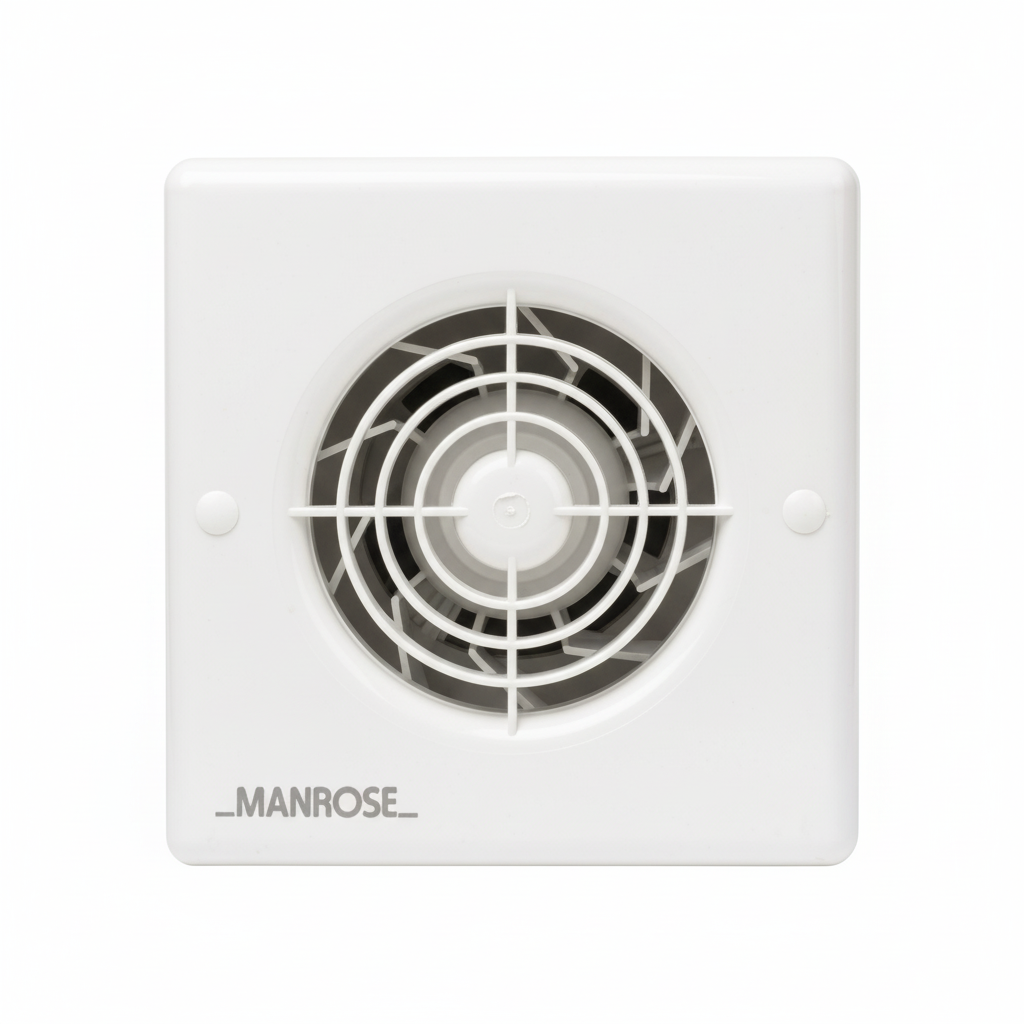

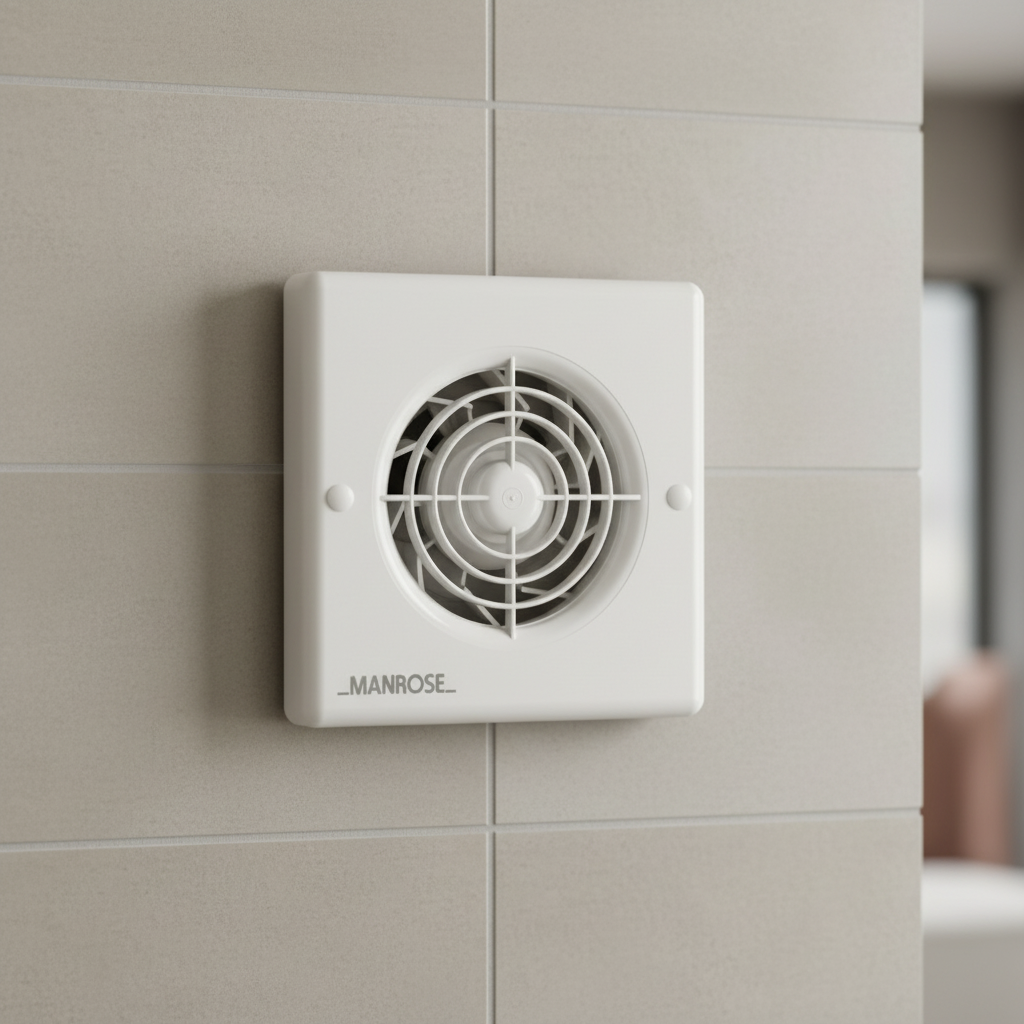

Manrose CF100T 100mm 4inch. Centrifugal Extractor Fan with Timer - Return Unit

Quick Find Code: CF100T/RETA

3 Year Warranty
Free Delivery on orders over £50*

Specifications

Airflow90m³/h
Applicable AreaBathroom, Kitchen, Laundry Room, Toilet
Backdraft ShutterYes
Extraction Rate Litres Second25L/s
Extractor TypeCentrifugal
Fan Size Diameter4in

Manrose CF100T 100mm 4inch. Centrifugal Extractor Fan with Timer - Return Unit

Quick Find Code: CF100T/RETA

3 Year Warranty
Free Delivery on orders over £50*

Specifications

Airflow90m³/h
Applicable AreaBathroom, Kitchen, Laundry Room, Toilet
Backdraft ShutterYes
Extraction Rate Litres Second25L/s
Extractor TypeCentrifugal
Fan Size Diameter4in

£32.95
£25.40 (inc. VAT)

Show ex. VAT

Buy more, save more!

Looking for a new one?

Manrose CF100T 100mm 4 Centrifugal Extractor Fan with Timer

Used Grades Explained

Grade A Unit in excellent condition, possible light use, all extras included, packaging intact but may be marked. full warranty
Grade B Unit used but fully functional, possible light cosmetic damage to unit, all accessories included, packaging may be damaged. 6 months warranty

Product Overview

The CF100 centrifugal fans use the latest technology to provide extremely powerful, yet very quiet and vibration free ventilation. The CF100 ranges are designed for bathrooms, toilets, cloakrooms, utility rooms.

Designed to move air over long distances, these units will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles.

All models are fitted with a built-in spring operated non-return flap into the discharge spigot to stop backdraughts.

There are seven models in each series. The CF100 has an extract rate of 90m3/hr 25 litres per second.

The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power to the CF100 range is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.

Designed to comply with the Building Regulations on Ventilation (F1).

Features:

  • Timer model incorporating integral adjustable electronic timer (1-20 mins)
  • 100mm / 4" standard rigid or flexible duct
  • These fans are double insulated and do not require an earth
  • All wiring must comply with current IEE regulations
  • A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3amp fuse fitted
  • The fan should not be accessible to a person using either the shower or bath and mounted to a minimum of 1.8 metres from the floor


Specifications:

  • Maximum pressure: 80 p.a.
  • Fan speed: 1600 r.p.m.
  • 90m3/hr, 25 litres per second
  • Diamensions: Height: 163mm x Width: 163mm x Depth: 90mm

Criteria
  • Noise Level: 42.0 dB(A)
  • Wattage: 19
  • Voltage: 220-240V - AC. 50Hz
  • Width: 163
  • Height: 163
  • Manufacturer Code: CF100T
  • Barcode: 5020953550570

Specification

Airflow90m³/h
Applicable AreaBathroom, Kitchen, Laundry Room, Toilet
Backdraft ShutterYes
Extraction Rate Litres Second25L/s
Extractor TypeCentrifugal
Fan Size Diameter4in
Finish Or ColourWhite
Installation KitYes
IP RatingIP44
Lip Depth90mm
Minimum Voltage220V
MountingCeiling, Wall
MPNCF100T
Number Of Speeds1
power consumption17W
TimerYes
Voltage240V
Height163mm
Weight0.96kg
Width163mm
