Product Overview

Megger EVCA210 EV Charge-Point Adaptor - 1012-732

The Megger EVCA210 electric vehicle charge-point adaptor is a compact, easy-to-use adapter that is designed to perform all the functions required by the electrical contractor to fully test Mode 3 AC Electric Vehicle Charge points. Specially designed to comply with UK, European and other international wiring regulations and standards, the EVCA210 may be used on all single and three phase electric vehicle charge points with appropriate connectors.

The purpose of the device is to test the function and safety of the charging point. The adapters allow you to conduct tests using appropriate single or multifunction test instruments on EV charging points in accordance with IEC/EN 61851-1 and IEC/HD 60364-722. Charging points should be tested as part of the initial installation and repeated periodically.

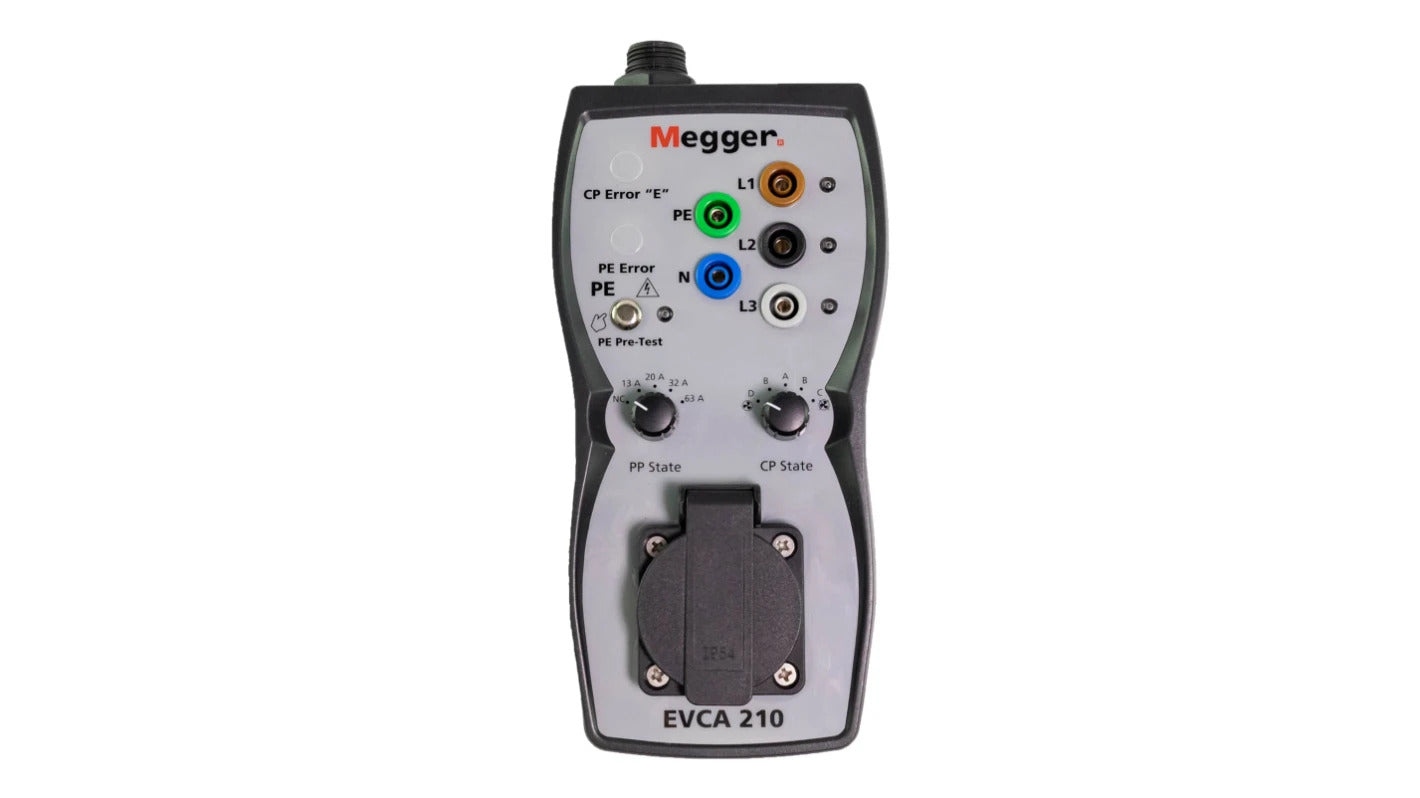

The test adaptor is designed to simulate the connection of an electrical vehicle to the charging point under test. Connection of the adapter enables the operator to trigger the charging process by selecting the appropriate Proximity Pilot (PP) and Control Pilot (CP) states. Test instruments can be connected using either the front mounted socket or the 4mm connection ports L1, L2, L3, N, PE. Two additional CP signal terminals give the operator the ability to measure the CP signal using an oscilloscope.

In addition, the adapters have a manual PE Pre-Test feature that allows the user to test for dangerous voltages present on the PE, prior to any other testing of the charge point. If this test fails, testing must cease as potentially dangerous voltages may be present on the PE and faults must be investigated and rectified before continuing.

Product Overview:

• IP54 Rated
• CATII 300V Rated
• Comes with Carry Case
• Complies with Low Voltage Directive LVD 2014/35
• (Example Mitsubishi PHEV) - option for the EVCA210/standard on the EVCA21
• Type 1 charging plug for charging points with fixed cable and vehicle connector
• Type 2 charging plug for charging points with panel mounted socket outlet or fixed cable with vehicle

Downloads

Download 1012-732-Datasheet
