Product Overview

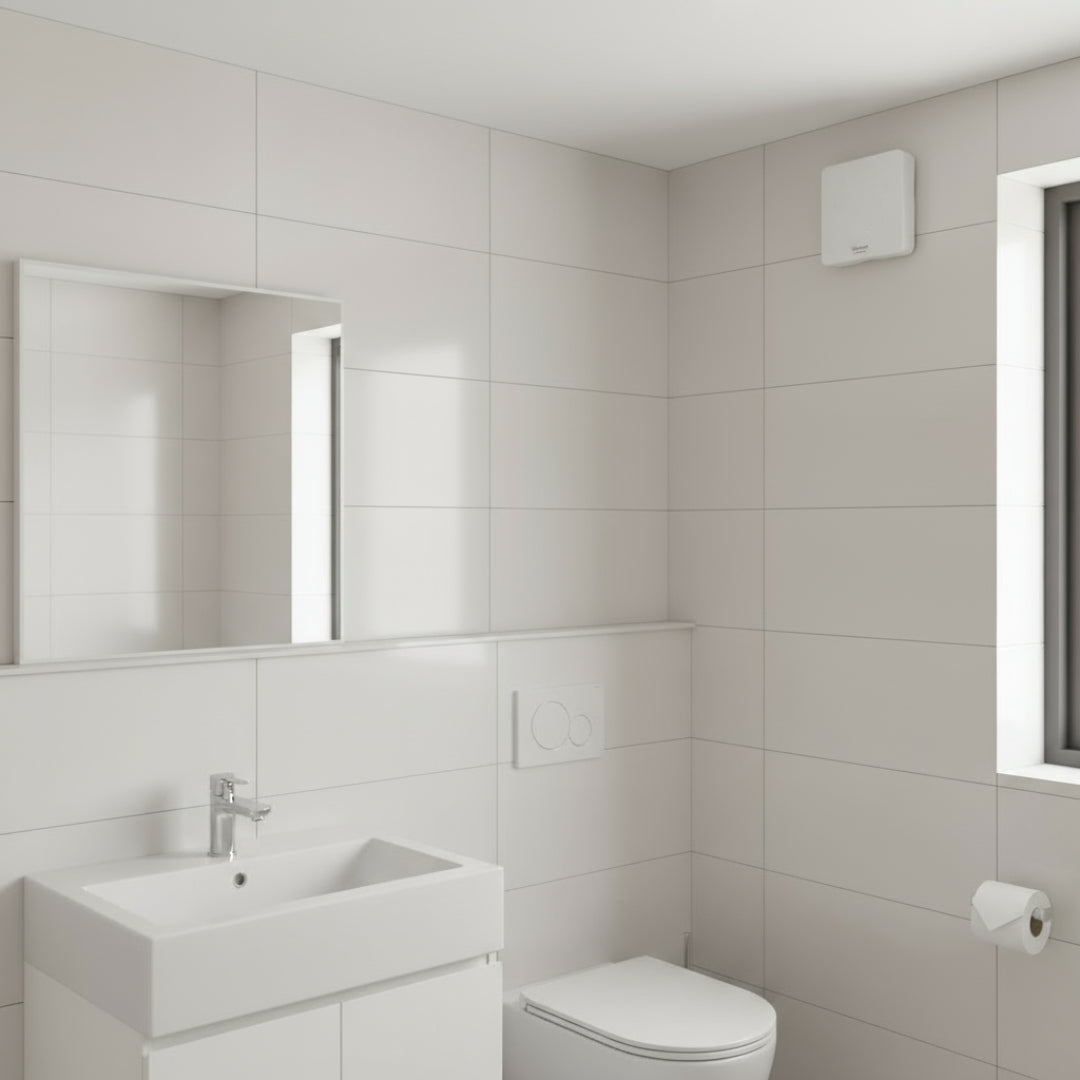

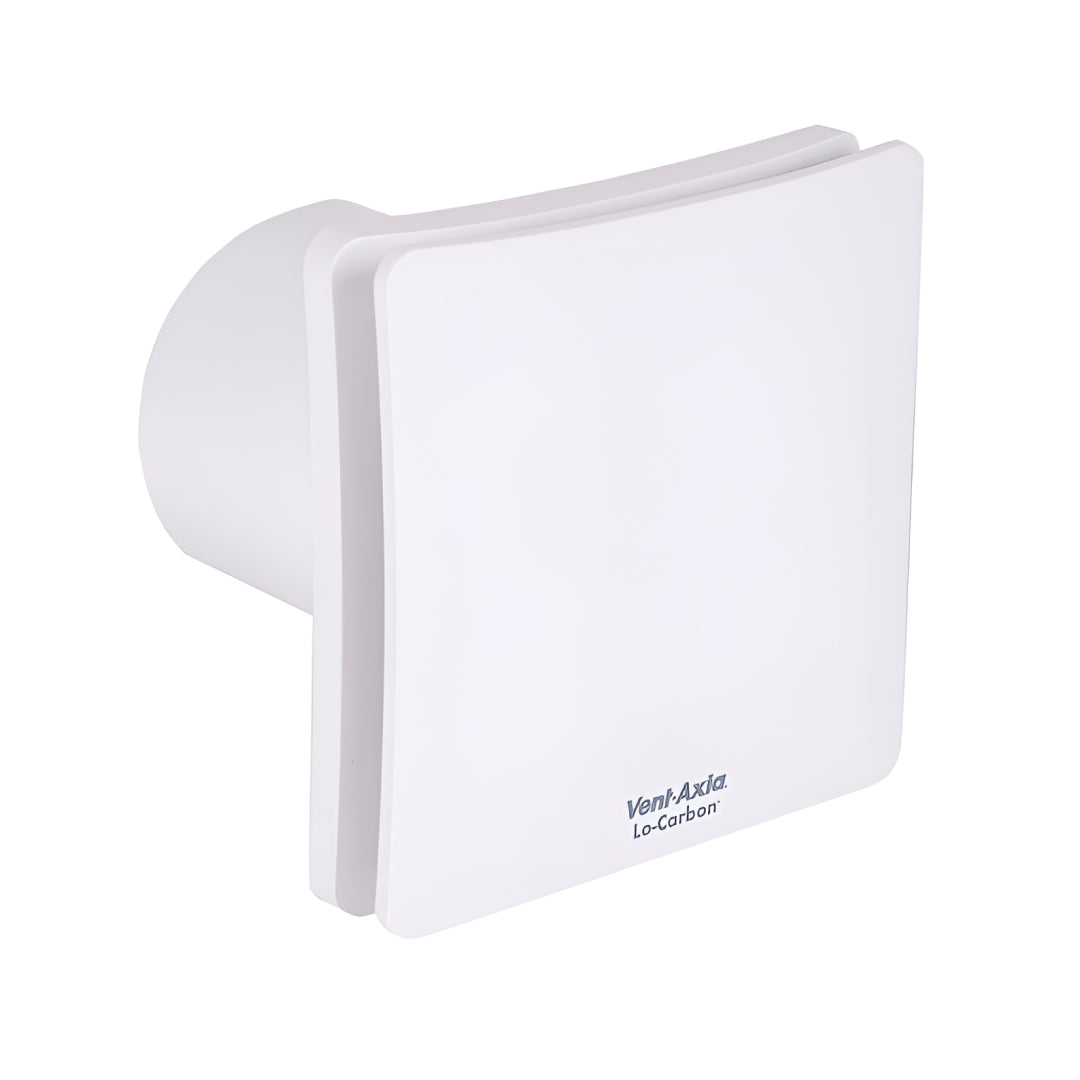

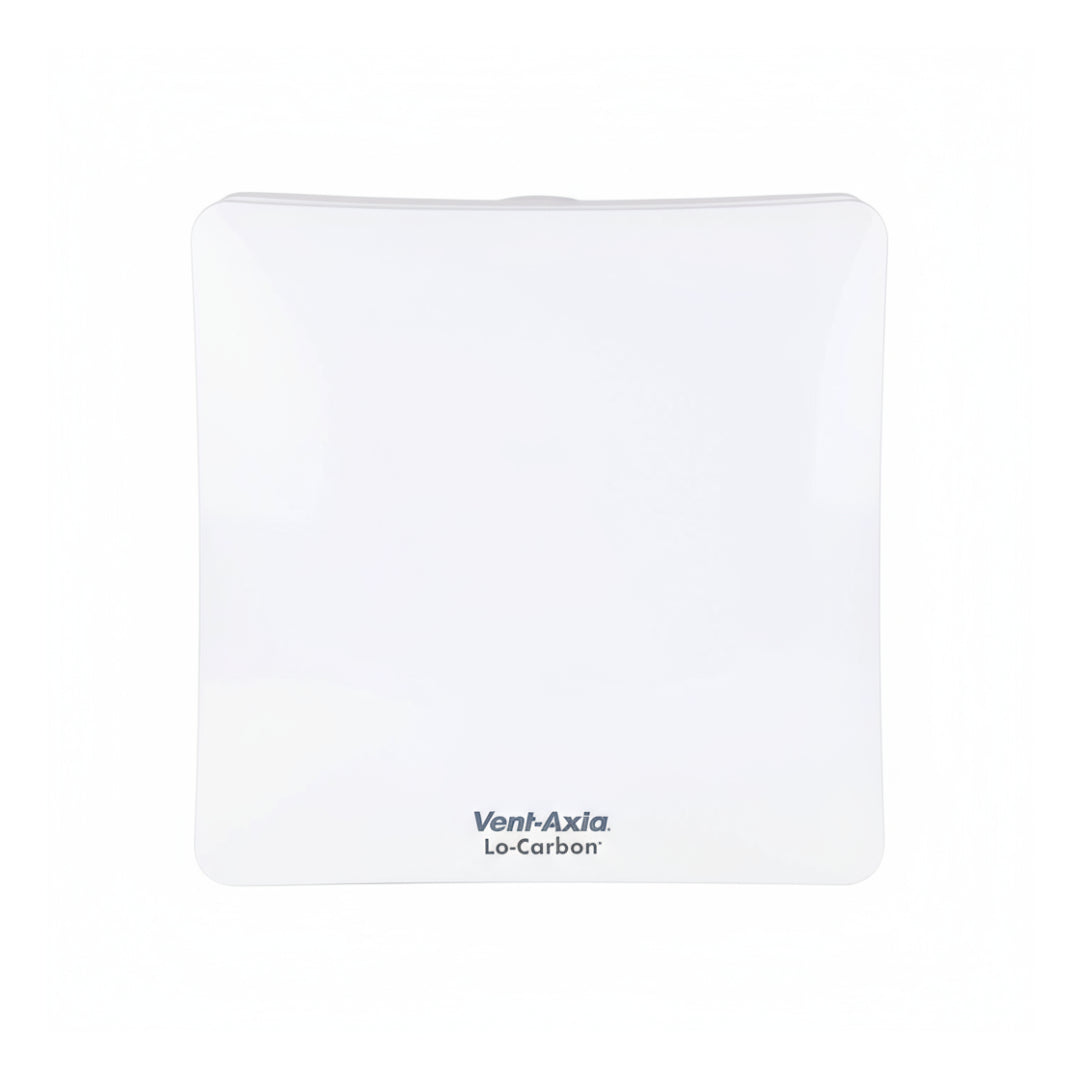

The Vent-Axia Lo Carbon Centra Extractor Fan is low voltage and has a humidistat and overrun timer. It is a dual speed continuous running fan for kitchens, utility rooms, bathrooms and toilet, with trickle speed selection at installation. Automatically boosted by the built in humidistat or by a switched live input which activates the overrun timer (adjustable up to 30 minutes). SELV (Safety Extra Low Voltage).

Criteria

• Width: 160mm
• Height: 160mm
• Manufacturer Code: 443176
• Barcode: 5015135493950

Features

• Part F compliant, System 3 Continuous mechanical extract
• SAP Appendix Q eligible - Low SFP on SAP Q
• Quietest dMEV available
• Discreet, tasteful styling
• Single fan for use in all applications
• IPX4 rated - IPX7 rated (SELV)
• Constant volume option
• Normal and Boost speeds
• Lo-Carbon motor offering 90% energy savings and long life
• 5 Year Motor Guarantee
• Suitable for wall, ceiling, panel and window mounting
• SELV Models - Supplied with a remote transformer
• Suitable for ‘Zone 1’ installation

Short Description

Vent Axia Lo-Carbon Centra SELV Humidistat Timer Fan 443176

Specification

• Specification:
  • Extract Performance (l/s) Low: 6
  • Extract Performance (l/s) High: 9
  • Power consumption Low: 1.4W
  • Power consumption High: 1.6W
  • Power consumption Boost: 15W
  • Sound dB(A)@ 3m Low: 10.8
  • Sound dB(A)@ 3m High: 15.5
  • Sound dB(A)@ 3m Boost: 2.4
  • Boost: 25.2
  • Dimensions: H: 160mm x W: 160mm x D: 150mm
• Features:
  • Part F compliant, System 3 Continuous mechanical extract
  • SAP Appendix Q eligible - Low SFP on SAP Q
  • Quietest dMEV available
  • Discreet, tasteful styling
  • Single fan for use in all applications
  • IPX4 rated - IPX7 rated (SELV)
  • Constant volume option
  • Normal and Boost speeds
  • Lo-Carbon motor offering 90% energy savings and long life
  • 5 Year Motor Guarantee
  • Suitable for wall, ceiling, panel and window mounting
  • SELV Models - Supplied with a remote transformer
  • Suitable for ‘Zone 1’ installation
• Guarantee: 5 Years
• Manufacturer Code: 443176

Downloads

Download 443176 Product Manual

Specification

Applicable Area	Bathroom, Toilet
Bathroom Zones	Zone 1
Collection Name	Lo-Carbon Centra
Duct Size Diameter	105 mm
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	3
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX7
Mounting	Ceiling, Panel, Wall, Window
Noise Level	15.5 Db
Noise Level Average	15.5 Db
Noise Level Maximum	25 Db
Number Of Speeds	3
power consumption	3.5 w
Pull Cord	Yes
Timer	Yes
Voltage	12 v
Depth	168 mm
Height	162 mm
Weight	0.01 KG
Width	168 mm
