Vent-Axia ACM100 Mixed Flow 100mm (4") In-line Extractor Fan - 17104010 has a rating of 5 stars based on 1 reviews.

SALE

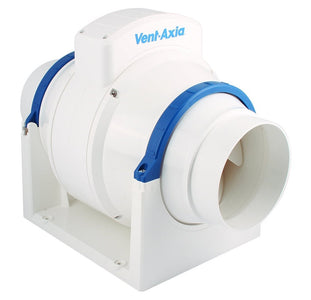

Vent-Axia ACM100 Mixed Flow 100mm (4") In-line Extractor Fan - 17104010

Quick Find Code: 17104010

2 Year Warranty

Free Next Day Delivery!*

for Next Working Day Delivery

Three speed motor
Removable motor core
Rotating motor chassis
Running speed selected on installation
Designed and manufactured in the UK

Vent-Axia ACM100 Mixed Flow 100mm (4") In-line Extractor Fan - 17104010

Quick Find Code: 17104010

2 Year Warranty

Free Next Day Delivery!*

for Next Working Day Delivery

Three speed motor
Removable motor core
Rotating motor chassis
Running speed selected on installation
Designed and manufactured in the UK

Regular price ~~£183.75~~
£119.13 (inc. VAT)

Regular price ~~£153.13~~
£99.28 (ex. VAT)

You save: £64.62

Show ex. VATShow inc. VAT

Quantity

You May Also Need

100mm Adjustable Worm Drive Hose Clamp - 1100

£2.63 (inc. VAT)

Add

100mm 4 Gravity Grille - Brown - 1162B

£3.10 (inc. VAT)

Add

100mm 4 PVC Flexible Ducting 6m - 1024

£7.88 (inc. VAT)

Add

Manrose 100mm/4 Internal Round Circular Air Diffuser with Round Spigot and Adjustable Central Disc - 1250

£7.88 (inc. VAT)

Add

Please add quantity to a product to add it to cart

Product

Fan
Speeds

IP
Rating

Extraction
Rate Ltr/Sec

Timer

Humidistat

Status

Price

Qty

Vent-Axia ACM100 Mixed Flow 100mm (4") In-line Extractor Fan - 17104010

17104010Current Product

Fan
Speeds 3

IP
Rating IP44

Extraction
Rate Ltr/Sec 71 L/s

Timer

Humidistat

In Stock

£119.13

(inc. VAT)

Attribute Value

Vent-Axia ACM150 Mixed Flow 150mm (6") In-line Extractor Fan - 17106010

17106010

Fan
Speeds 3

IP
Rating IP44

Extraction
Rate Ltr/Sec 145 L/s

Timer

Humidistat

In Stock

£183.23

(inc. VAT)

Attribute Value

Vent-Axia ACM315 315mm (12") In-line Mixed Flow Extractor Fan - 17112010

17112010

Fan
Speeds 3

IP
Rating IP54

Extraction
Rate Ltr/Sec

Timer

Humidistat

In Stock

£513.98

(inc. VAT)

Attribute Value

Add To Cart

Information & Specification
Delivery Information

Product Overview

The ACM100 from Vent‑Axia is a 100 mm (4″) in-line mixed-flow extractor designed for ducted ventilation installations. It uses a mixed-flow impeller, which gives it around two and a half times the pressure of a conventional axial fan, making it well-suited for longer duct runs or installations where duct resistance is higher.

In terms of specifications, the fan delivers roughly 52-71 litres per second (≈187-255 m³/hour) on its selectable three speeds, while maintaining a low noise level of about 16-22 dB(A) at 3m. It draws a modest power of about 20-23 W and is rated IP44, meaning it is suitable for many internal applications including bathrooms and ceiling voids.

Installation-wise, the ACM100 is built with flexibility in mind: the motor core is removable for maintenance, the chassis can rotate to allow connection in tight or awkward spaces, and it supports both horizontal and vertical orientation. Its compact dimensions (for an in-line fan of its capability) and its wipe-clean polymer casing add practicality for domestic and light commercial use.

Downloads

Download 17104010 Product Manual

Specification

Applicable Area	Bathroom, Commercial, Laundry Room, Office, Toilet, Warehouse
Collection Name	ACM
Domestic or Commercial	Domestic, Commercial
Duct Size Diameter	100 mm
Extraction Rate Litres Second	71 L/s
Extractor Type	Inline
Fan Size Diameter	4 in
Finish Or Colour	White
IP Rating	IP44
Material	Polycarbonate
Maximum Airflow	252 m³/h
Minimum Airflow	36 m³/h
Minimum Voltage	220 V
Mounting	Ceiling
MPN	17104010
Noise Level Maximum	22 dB
Number Of Speeds	3
Old GTIN	5015135093952
power consumption	20 W
Voltage	240 V
Depth	298 mm
Height	220 mm
Weight	1.75 kg
Width	178 mm

We always aim to dispatch your order for delivery on the next working day. Simply place your order before the same-day dispatch cut-off time. The countdown timer on the product page shows this cut-off time. While we work with trusted couriers, delivery times cannot be guaranteed.

Free UK Delivery on All Qualifying Orders Over £50. Orders under £50 will incur a £5.90 Delivery Fee.

This Excludes Delivery to the Scottish Highlands, Offshore Islands and Northern Ireland. These will be charged at an extra rate, which will be calculated at the checkout.

Heavier Items may also incur an extra fee.

Compare the range

Applicable area

Bathroom,Commercial,Laundry Room,Office,Toilet,Warehouse

Collection name

ACM

Domestic or commercial

Domestic,Commercial

Duct size diameter

100 mm

Extraction rate litres second

71 L/s

Extractor type

Inline

Fan size diameter

4 in

Finish or colour

White

Ip rating

IP44

Mounting

Ceiling

Mpn

17104010

Noise level maximum

22 dB

Number of speeds

Old gtin

5015135093952

Power consumption

20 W

Voltage

240 V

17106010

£183.23

Bathroom,Commercial,Laundry Room,Office,Toilet,Warehouse

ACM

Domestic,Commercial

150 mm

145 L/s

Inline

6 in

White

IP44

Ceiling

17106010

36 dB

5015135093990

48 W

240 V

17112010

£513.98

Bathroom,Commercial,Laundry Room,Office,Toilet,Warehouse

ACM

315 mm

Inline

12 in

White

IP54

Ceiling

17112010

34 dB

5015135454890

300 W

240 V
