Product Overview

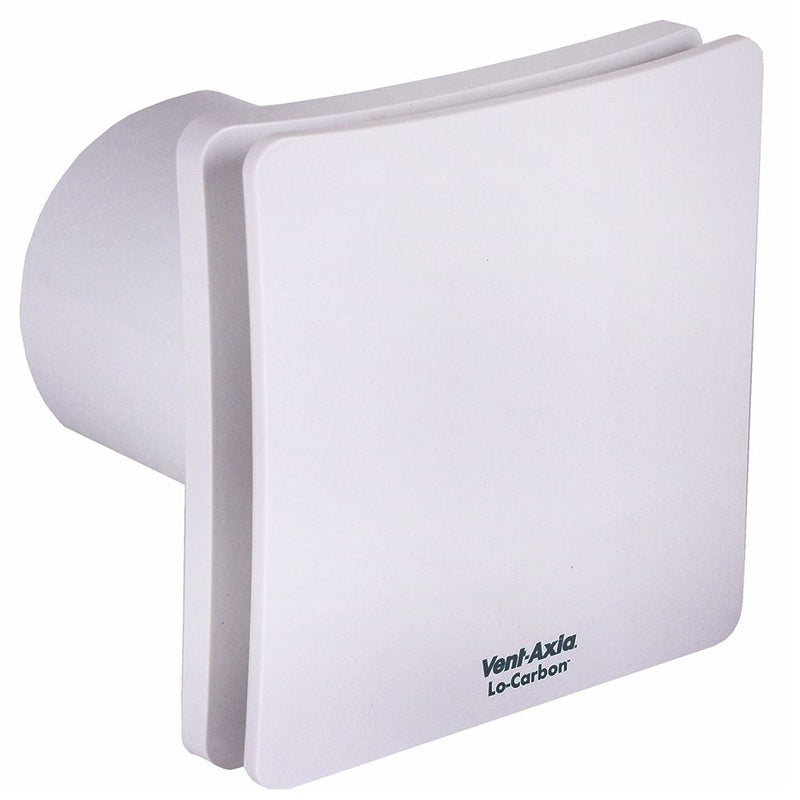

The Vent-Axia Lo-Carbon Centra SELV Timer Pullcord Fan is a 100mm continuously running extract fan for kitchens, utility rooms, bathrooms and toilets, with a trickle speed to be selected at time of installation. The unit has a switch live or pullcord to boost together with an integral overrun timer which is adjustable up to thirty minutes.

The integral digital air velocity sensor monitors airflow and maintains the preset extract flow rate of either 6 litres per second, 9 litres per second or 15 litres per second thus minimising energy use and noise levels.

Criteria

• Specification:
  • Extract Performance (l/s) Low: 6
  • Extract Performance (l/s) High: 9
  • Power consumption Low: 1.4W
  • Power consumption High: 1.6W
  • Power consumption Boost: 15W
  • Sound dB(A)@ 3m Low: 10.8
  • Sound dB(A)@ 3m High: 15.5
  • Sound dB(A)@ 3m Boost: 2.4
  • Boost: 25.2
  • Dimensions: H: 160mm x W: 160mm x D: 150mm
• Features:
  • The 100mm spigot is common to traditional intermittent extract fans, simplifying the specification process
  • Safety first – IPX7 rated for installation in bathrooms
  • Adjustable overrun timer
  • Selection of the two standard flow rates is via a simple ‘jumper’ on the control board
  • Can be installed with Vent-Axia range of 110 x 54 flat ducting,100mm circular or flexible duct and accessories for internal room applications
  • The attractive and discreet styling of the Vent-Axia Centra unit will complement any new home
  • Virtually silent operation ensures optimum ventilation is peacefully achieved
  • A LoWatt motor provides running costs of less than 0.5 pence a day
  • Long life motor
  • One size fits all – no components to dispose of at installation stage – reducing wastage
  • All plastic components are 100% recyclable
• Guarantee: 5 Years
• Manufacturer Code: 447128

Features

• The 100mm spigot is common to traditional intermittent extract fans, simplifying the specification process
• Safety first – IPX7 rated for installation in bathrooms
• Adjustable overrun timer
• Selection of the two standard flow rates is via a simple ‘jumper’ on the control board
• Can be installed with Vent-Axia range of 110 x 54 flat ducting,100mm circular or flexible duct and accessories for internal room applications
• The attractive and discreet styling of the Vent-Axia Centra unit will complement any new home
• Virtually silent operation ensures optimum ventilation is peacefully achieved
• A LoWatt motor provides running costs of less than 0.5 pence a day
• Long life motor
• One size fits all – no components to dispose of at installation stage – reducing wastage
• All plastic components are 100% recyclable

Specification

• Extract Performance (l/s) Low: 6
• Extract Performance (l/s) High: 9
• Power consumption Low: 1.4W
• Power consumption High: 1.6W
• Power consumption Boost: 15W
• Sound dB(A)@ 3m Low: 10.8
• Sound dB(A)@ 3m High: 15.5
• Sound dB(A)@ 3m Boost: 2.4
• Boost: 25.2
• Dimensions: H: 160mm x W: 160mm x D: 150mm

Specification

Applicable Area	Bathroom, Toilet
Collection Name	Lo-Carbon Centra
Duct Size Diameter	105 mm
Extractor Type	Axial
Fan Size Diameter	100 mm
Fan Size Diameter Inches	4 INCH
Fan Speeds	3
Finish Or Colour	White
IP Rating	IPX7
Mounting	Ceiling, Panel, Wall, Window
Pull Cord	Yes
Timer	Yes
Voltage	12 v
Depth	168 mm
Height	162 mm
Width	168 mm
