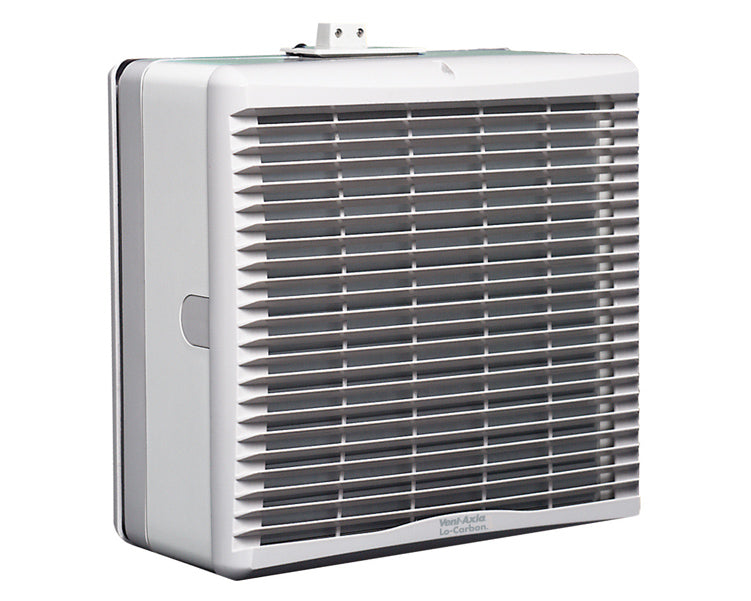

The Vent-Axia TX12WW WIRED WINDOW FAN 220/240V the UK’s No. 1 Commercial Fan.
The Lo-Carbon T-Series Fan range utilises a low energy DC motor, developed to improve performance, lower running costs and maintain T-Series’ rugged reliability. Designed for installation through single or double glazing and material up to 32mm thick. It can also be mounted in a fixing plate on walls or above ceilings.
With energy saving in mind, units are supplied complete with an integral instantaneous automatic louvre shutter concealed behind the interior grille. It operates on both extract and intake and at any angle of mounting.
The shutter is electronically controlled by an actuator with a damped action giving quiet operation during instant opening and closing. The interlocking edges of the shutter blades provide maximum back draught protection. When the fan is used with the Lo-Carbon T-Series controller, the shutter can be set open with the fan motor switched Off to provide natural ventilation without the security risk of an open window.
A connector Top Socket is standard on all T-Series fans. Allowing fast and trouble-free mains connection.
The Lo-Carbon T-Series range is fitted with a low energy DC motor, developed to improve performance, lower running costs and maintainT-Series’ rugged reliability.Features:
- Long life Lo-Carbon motor lasts twice as long conventional motors
- Reduces your carbon footprint
- Easy fit connector Top Socket, standard on all models
- Guarantee: 5 Years
- Barcode: Timer
- Power Consumption: 68.6
- Noise Level: 46
- Mounting: Window
- Hole_size: 260
- Extraction_rate: 1550
- Ceiling/Wall: Window
- Depth: 41mm
- Height: 378mm
- Speed (rrpm): 2400
- Detection Range: 10 Metres
Download Lo-Carbon Instruction Manual
