Vent-Axia TX6WL Traditional Axial Commercial Fan - W161510B

Vent-Axia TX6WL Traditional Axial Commercial Fan - W161510B

Quick Find Code: W161510B

2 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Warehouse
Collection NameTX6
Duct Size Diameter184 mm
Extractor TypeAxial
Fan Size Diameter150 mm
Fan Size Diameter Inches6 INCH

Vent-Axia TX6WL Traditional Axial Commercial Fan - W161510B

Quick Find Code: W161510B

2 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Warehouse
Collection NameTX6
Duct Size Diameter184 mm
Extractor TypeAxial
Fan Size Diameter150 mm
Fan Size Diameter Inches6 INCH

£325.44 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£318.94Save 2%
6+£315.68Save 3%

Product Overview

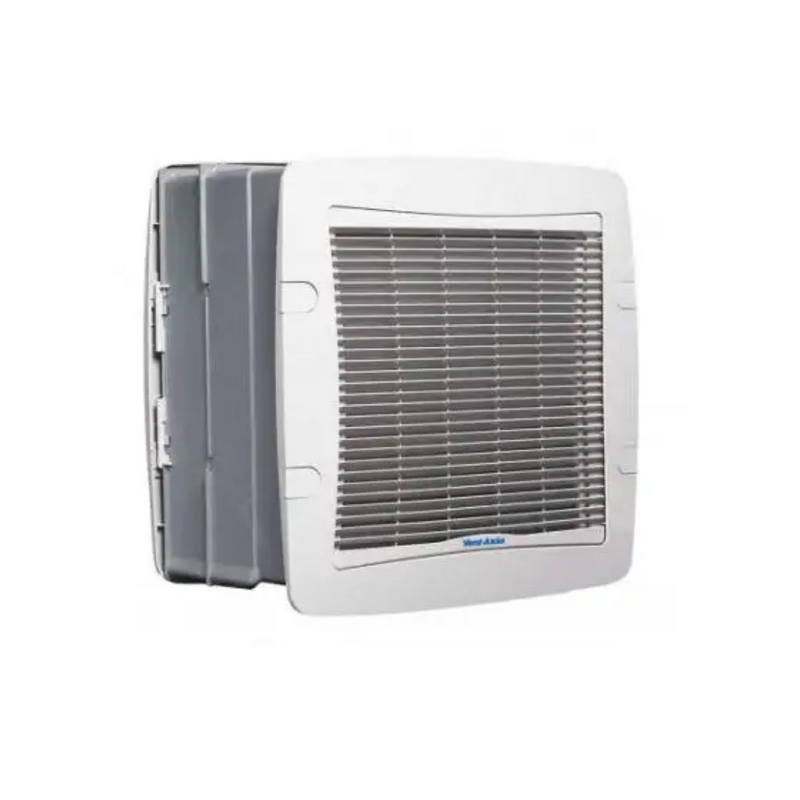

The Vent-Axia TX6WL T-Series High Performance Extractor Fan is designed to fit through most wall thicknesses using the telescopic liner supplied. T-Series also features a unique speed control pack which enables high, medium or low speed to be preset to suit room size or required duty. Conduit entry is provided for concealed wiring. TX models are supplied complete with an integral instantaneous automatic louvre shutter which will operate on both intake and extract and at any angle of mounting. Motor purpose-designed. Suitable for running at any angle. Quiet running, enclosed. Suitable for operation in ambient temperatures from -40°C to +50°C. Fitted with self resetting Standard Thermal Overload Protection (S.T.O.P.)

Criteria

  • Specification:
    • Wattage: 30 W
    • Voltage: 220-240V/1/50Hz
    • Manufacturer Code: W161510B
    • Barcode: 5015135425739
    • Extract performance m³/h (l/s) Low: 270/75
    • Extract performance m³/h (l/s) Med: 350/97
    • Extract performance m³/h (l/s) High: 395/110
    • Sound dB(A) @ 3m: 43 Med
    • Amps @240V: 0.24
    • Dimensions: H: 303mm x W: 310mm x D: 240-315mm
    • Weight: 5.54kg
  • Features:
    • Patented electronic shutter system ensures quiet, trouble free operation
    • Designed to comply with International safety standards
    • For the very best from your fan use the Ecotronic controller
    • Easy fit connector Top Socket, standard on all models
    • Suitable for solid and cavity walls
    • Outside grille removable from indoors for cleaning
    • Instant shutter operation
    • T-Series controllers require 5 core cable
  • Manufacturer Code: 140903A

Features

  • Patented electronic shutter system ensures quiet, trouble free operation
  • Designed to comply with International safety standards
  • For the very best from your fan use the Ecotronic controller
  • Easy fit connector Top Socket, standard on all models
  • Suitable for solid and cavity walls
  • Outside grille removable from indoors for cleaning
  • Instant shutter operation
  • T-Series controllers require 5 core cable

Specification

  • Wattage: 30 W
  • Voltage: 220-240V/1/50Hz
  • Manufacturer Code: W161510B
  • Barcode: 5015135425739
  • Extract performance m³/h (l/s) Low: 270/75
  • Extract performance m³/h (l/s) Med: 350/97
  • Extract performance m³/h (l/s) High: 395/110
  • Sound dB(A) @ 3m: 43 Med
  • Amps @240V: 0.24
  • Dimensions: H: 303mm x W: 310mm x D: 240-315mm
  • Weight: 5.54kg

Specification

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Warehouse
Collection NameTX6
Duct Size Diameter184 mm
Extractor TypeAxial
Fan Size Diameter150 mm
Fan Size Diameter Inches6 INCH
Fan SpeedsMulti Speed
Finish Or ColourWhite
IP RatingIPX4
Minimum Voltage220 v
MountingWall
Voltage240 v
Depth340 mm
Height345 mm
Width340 mm
