Product Overview

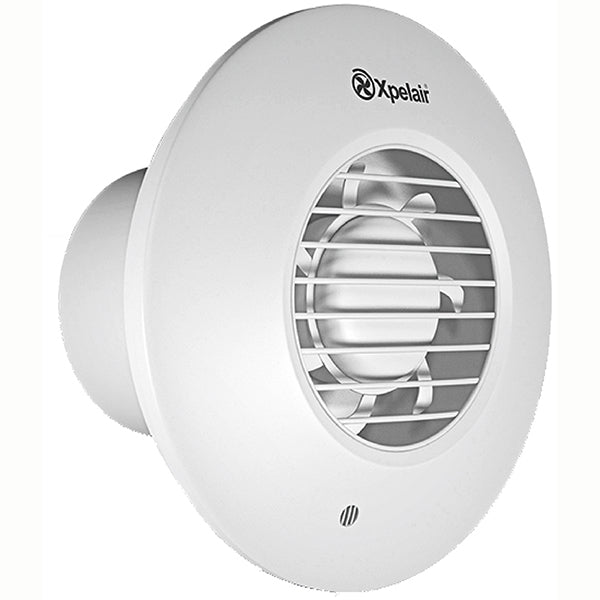

Simply Silent DX100 round grille fascia 4" 100mm extract fan, featuring Ghost Air Movement Technology for quiet running, with integral pull cord for on/off control.

Criteria

• Specification:
  • Electrical power rating (W): 6.7 / 7.7
  • Extract performance (FID, M³/h) Max/Min: 54 / 76
  • Extract performance (FID, l/s) Max/Min: 15 / 21
  • Sound pressure level db(A)@3m: 22 / 34
  • Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
  • Operation Speeds: 2
  • UK Guarantee: 2 Years
  • IPX Rating: 4
  • Pullcord: Yes
• Features:
  • Extremely quiet running - only 22dBA@3M at low speed
  • Stylish traditional grille design available in square and round
  • 2 speeds 15l/s and 21l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Complies with building regulations Part F and L
• Delivery_Info:

  Order by 7pm for Next Working Day Delivery

• Manufacturer Code: 93001AW

Features

• Extremely quiet running - only 22dBA@3M at low speed
• Stylish traditional grille design available in square and round
• 2 speeds 15l/s and 21l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Complies with building regulations Part F and L

Short Description

Xpelair 93001AW Simply Silent DX100BPR Pullcord Round Intermittent Extractor Fan

Specification

• Electrical power rating (W): 6.7 / 7.7
• Extract performance (FID, M³/h) Max/Min: 54 / 76
• Extract performance (FID, l/s) Max/Min: 15 / 21
• Sound pressure level db(A)@3m: 22 / 34
• Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
• Operation Speeds: 2
• UK Guarantee: 2 Years
• IPX Rating: 4
• Pullcord: Yes

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	No
Collection Name	Simply Silent
Duct Size Diameter	98 mm
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	2
Finish Or Colour	White
IP Rating	IPX4
Lip Depth	35.7 mm
Minimum Voltage	220 v
Mounting	Ceiling, Wall, Window
Pull Cord	Yes
Silent Running	Yes
Voltage	240 v
Width	178.1 mm
