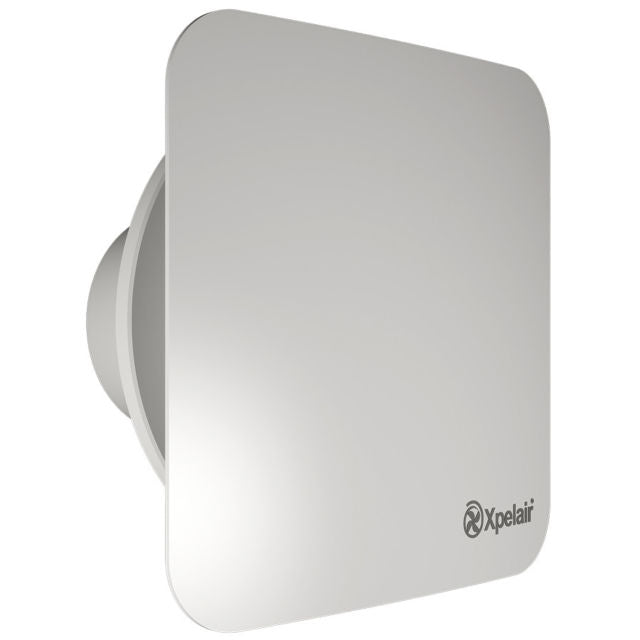

Xpelair C6TS Simply Silent Contour 6/150mm Square Extractor Fan w/ Timer - 93172AW - Return Unit, Image of 1
Xpelair C6TS Simply Silent Contour 6/150mm Square Extractor Fan w/ Timer - 93172AW - Return Unit

Quick Find Code: 93172AW/RETB

3 Year Warranty
Free Delivery on orders over £50*

Specifications

Airflow248 m3/h
Applicable AreaBathroom, Laundry Room, Office, Toilet
Collection NameSimply Silent
Duct Size Diameter148 mm
Extraction Rate Litres Second69 L/s
Extractor TypeAxial

Xpelair C6TS Simply Silent Contour 6/150mm Square Extractor Fan w/ Timer - 93172AW - Return Unit

Quick Find Code: 93172AW/RETB

3 Year Warranty
Free Delivery on orders over £50*

Specifications

Airflow248 m3/h
Applicable AreaBathroom, Laundry Room, Office, Toilet
Collection NameSimply Silent
Duct Size Diameter148 mm
Extraction Rate Litres Second69 L/s
Extractor TypeAxial

£62.95
£48.97 (inc. VAT)

You save: £13.98

Show ex. VAT

Xpelair

Notify Me When Available

Used Grades Explained

Graded Unit Unit used but fully functional, possible light cosmetic damage to unit, all accessories included, packaging may be damaged. 6 months warranty

Product Overview

Simply Silent Contour C6 square baffle fascia 6" 150mm extract fan with integral over-run timer featuring Ghost Air Movement Technology for quiet running. For use with an external switch or sensor. Is typically connected to the room lighting circuit. Fan continues to work after the fan is switched off. The timer is adjustable at installation from 30 seconds to 30 minutes.

The Simply Silent Contour C6 two-speed, intermittent extractor fan range has been designed to blend seamlessly with the surrounding decor. These fans control humidity, odours and mould growth effectively in kitchens, utility rooms, larger bathrooms and individual offices. Discover the beauty of silence.

  • Ghost Air Movement Technology enables quiet running

  • Sleek design with interchangeable fascia options available in square and round

  • 2 speeds 60l/s and 69l/s - selectable at install

  • Suitable for wall, ceiling, panel and window fitting

  • Knock-out section for side entry wiring

  • Complies with building regulations Part F and L






Criteria
  • Specification:

    Electrical power rating (W): 12.9 / 28.4
    Extract performance (FID, M³/h) Max/Min: 216 / 248
    Extract performance (FID, l/s) Max/Min: 60 / 69
    Sound pressure level db(A)@3m: 42.3 / 44.6
    Specific Fan Power (SFP) (W/l/s): 0.22 / 0.41
    Operation Speeds: 2
    UK Guarantee (Years): 2
    IPX Rating: 4


Specification

Electrical power rating (W): 12.9 / 28.4
Extract performance (FID, M³/h) Max/Min: 216 / 248
Extract performance (FID, l/s) Max/Min: 60 / 69
Sound pressure level db(A)@3m: 42.3 / 44.6
Specific Fan Power (SFP) (W/l/s): 0.22 / 0.41
Operation Speeds: 2
UK Guarantee (Years): 2
IPX Rating: 4

Downloads

Download Xpelair C6 Product Brochure

Specification

Airflow248 m3/h
Applicable AreaBathroom, Laundry Room, Office, Toilet
Collection NameSimply Silent
Duct Size Diameter148 mm
Extraction Rate Litres Second69 L/s
Extractor TypeAxial
Fan Size Diameter6 in
Finish Or ColourWhite
IP RatingIPX4
Lip Depth52 mm
Minimum Voltage220 V
MountingCeiling, Panel, Wall, Window
MPN93172AW
Number Of Speeds2
Pull CordNo
TimerYes
Voltage240 V
Height228 mm
