Product Overview

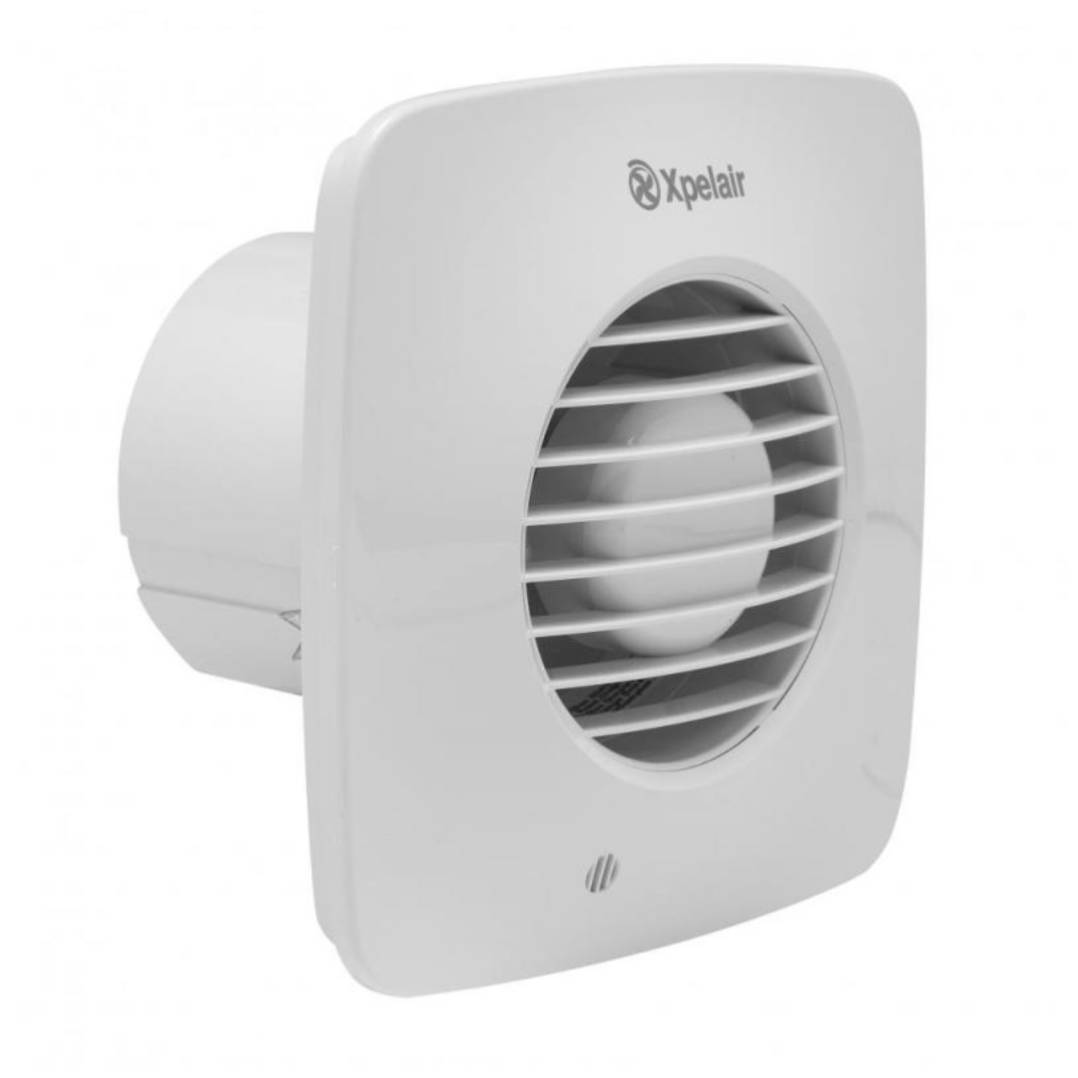

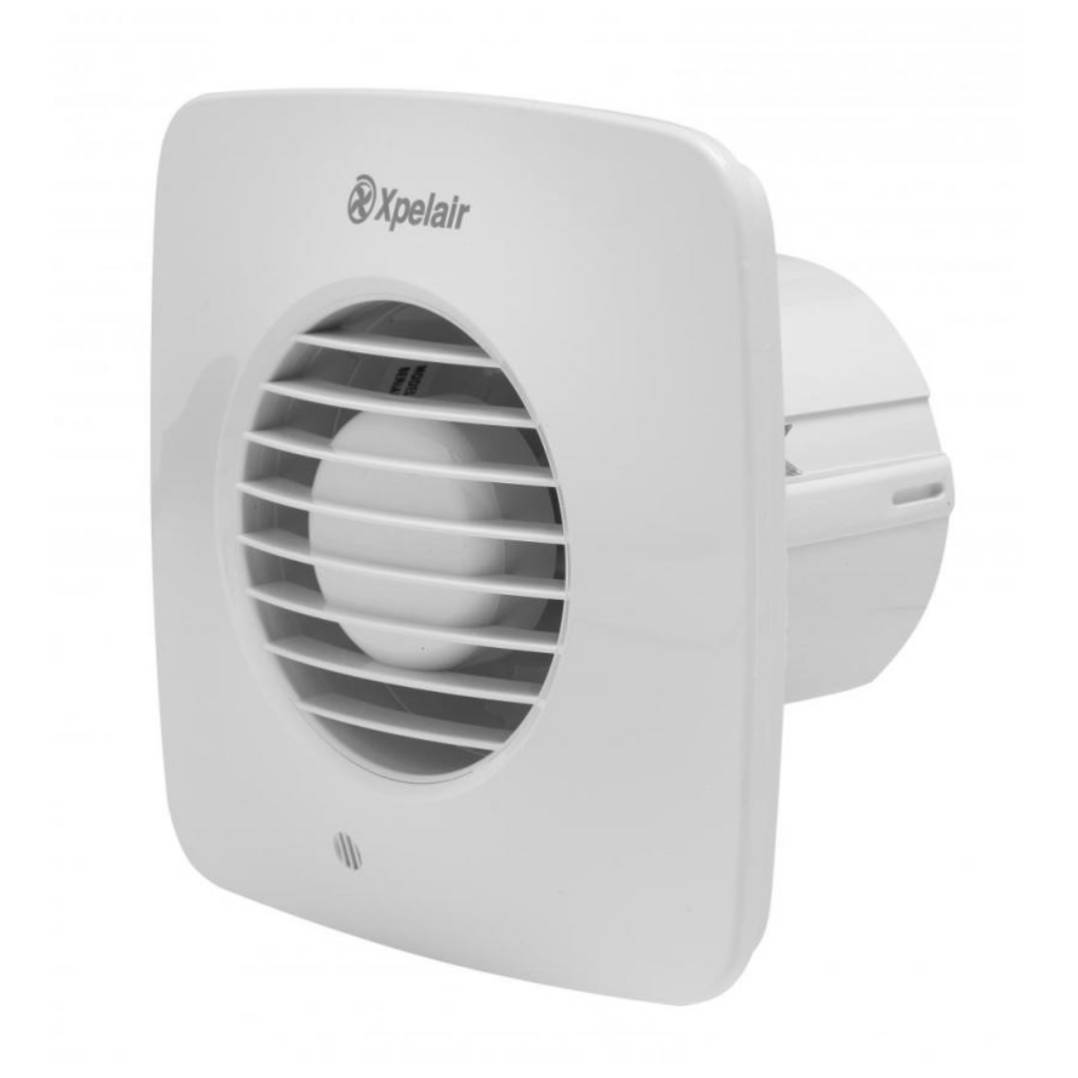

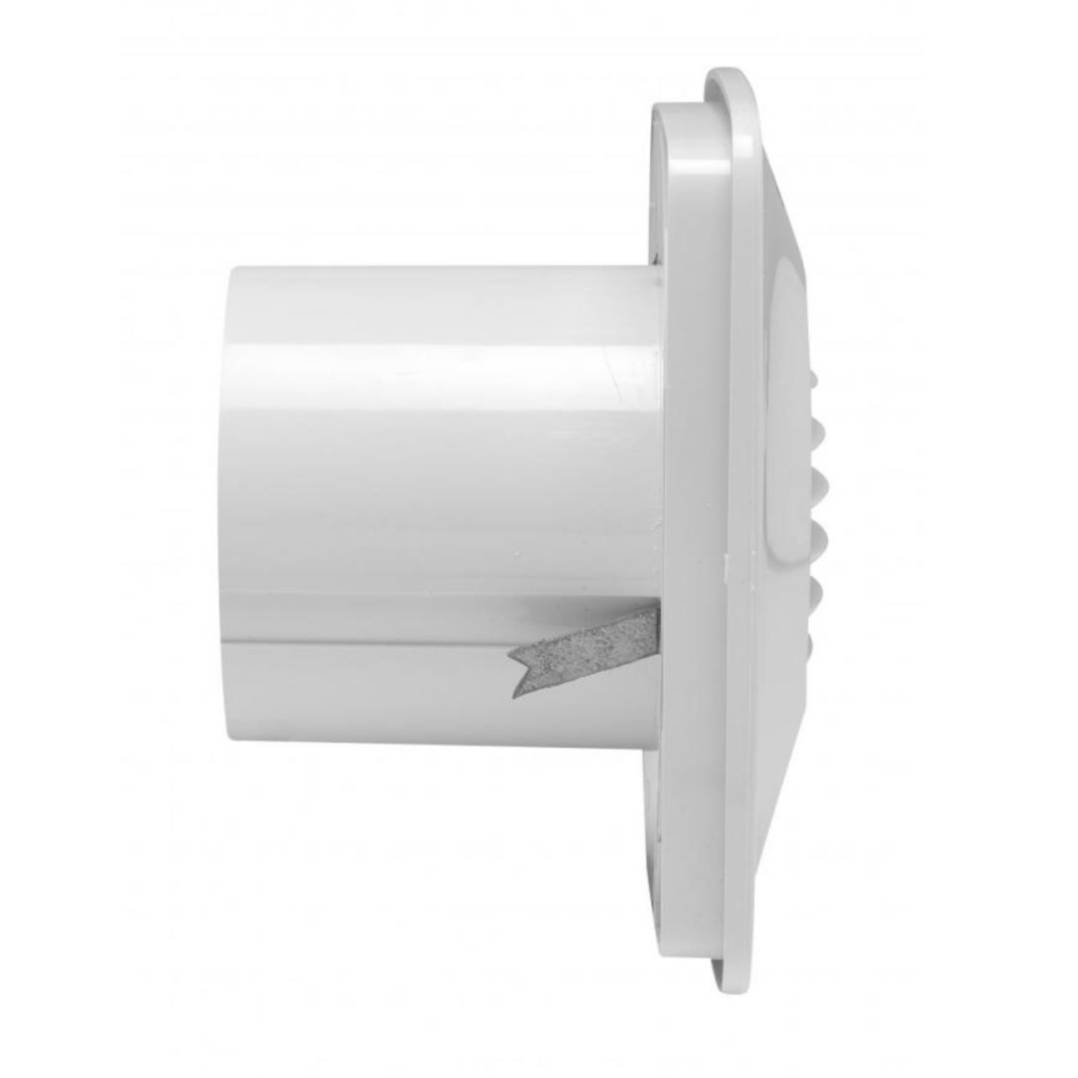

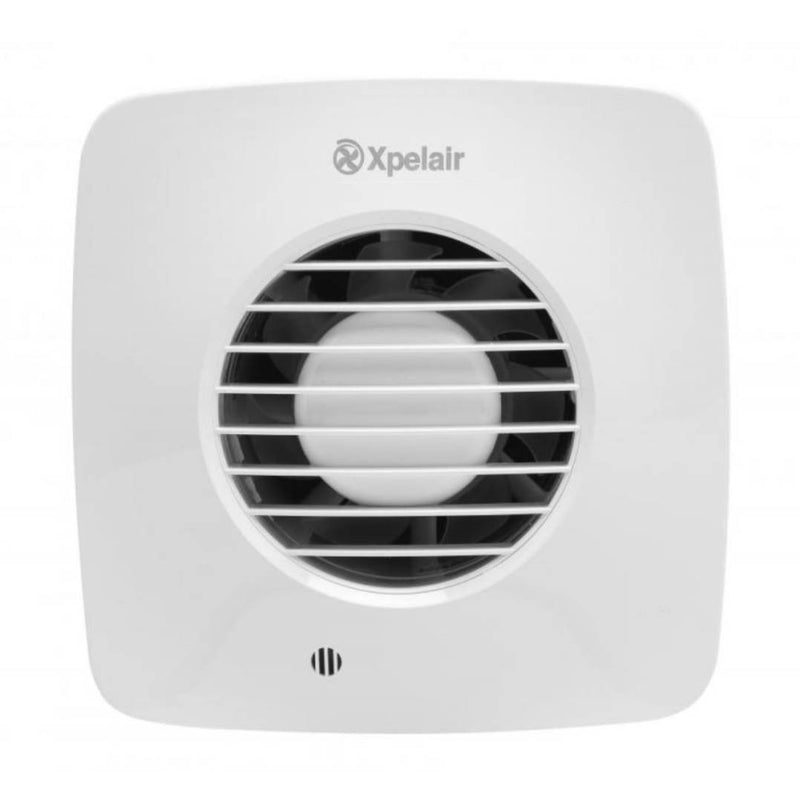

DX100HPTS 100mm 4 inch extract fan with integral humidistat, over-run timer and pullcord. Auto on/off operation via the humidity sensor adjustable for 50-90% relative humidity. Pull cord over-rides automatic function. Timer adjustable from 2 to 20 minutes.

A comprehensive range of stylish, compact and easy to install 100mm (4") single speed extractor fans. Suitable for a wide range of applications including bathrooms, shower rooms and toilets, including zones 1 and 2.

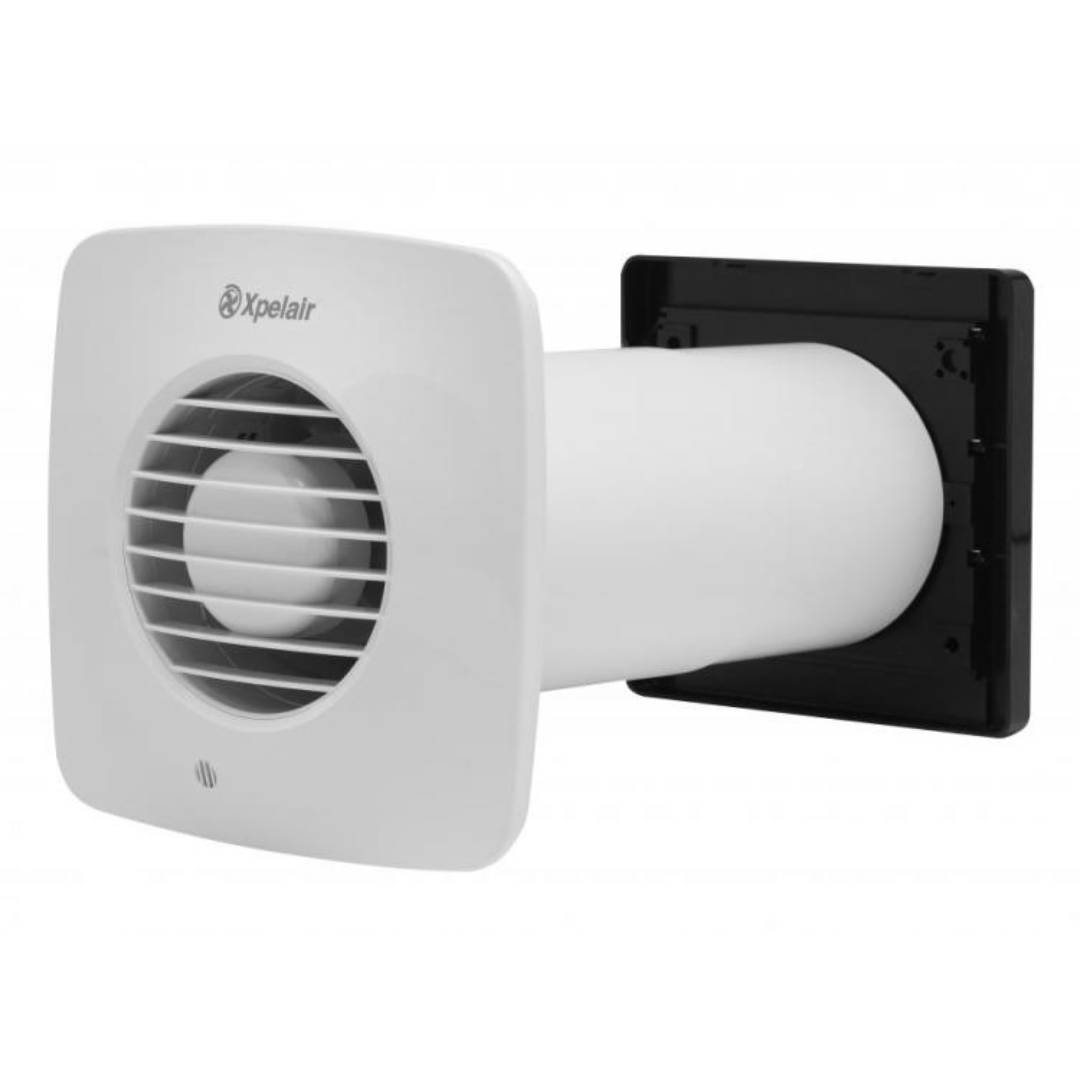

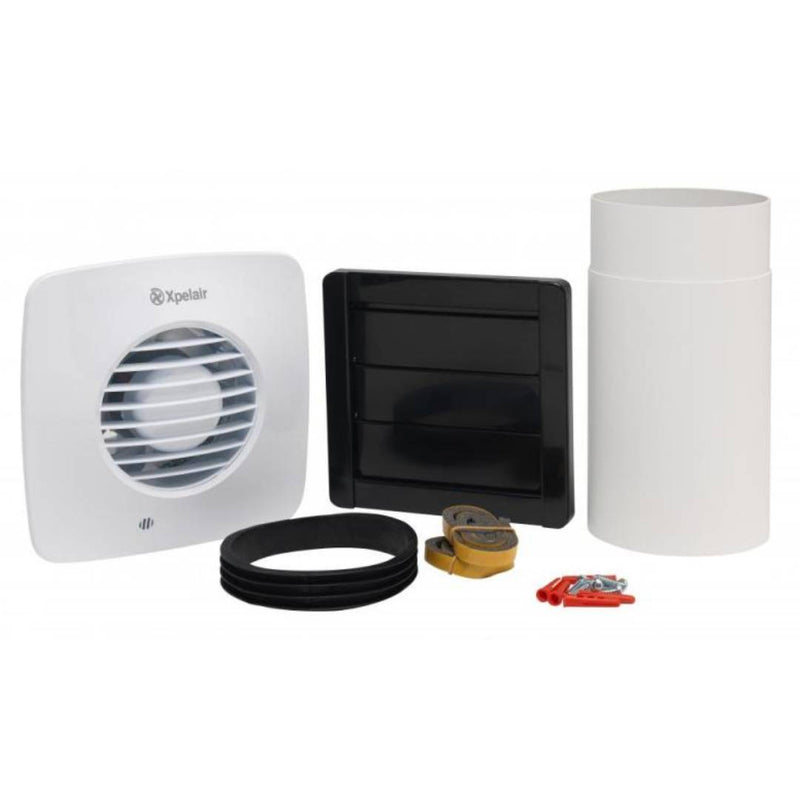

All DX100 extractor fans (except the CP clamp packed model) come complete with a universal mounting kit comprising of a wall tube, gasket x2, outer grille and skirt moulding for window mounting in single glazing up to 6mm. Also suitable for wall or ceiling mounting. DX100 models also include an outer grille and ducting.

Criteria

• Specification:
  • Diameter: 99mm
  • Depth: 30mm
  • Height: 99mm
  • Width: 30mm
  • Fan Flow Rate: 76m³/h
  • No. of Output Settings: 1
  • Sound pressure level: 35 db(A)@3m
  • Specific Fan Power: 0.57W/l/s
  • Power Rating: 12W
  • Operation Speeds: 1
  • IPX Rating: 4
  • Voltage: 240V
  • Timer: Yes
  • Pullcord: Yes
  • Humidistat: Yes
  • Universal Mounting Kit: Yes
  • Guarantee: 2 Year
  • Box Contents: Fan/Installation guide/Fixing kit/Grille/Duct/Addendum sheet
• Features:
  • Single speed 100mm (4") axial extract fans
  • Maximum fan performance 21 l/s
  • Lubricated for life motors with thermal cut-out protection
  • Clip-off front cover for ease of cleaning
• Guarantee: 2 Years
• Manufacturer Code: 93029AW

Features

• Single speed 100mm (4") axial extract fans
• Maximum fan performance 21 l/s
• Lubricated for life motors with thermal cut-out protection
• Clip-off front cover for ease of cleaning

Short Description

Xpelair DX100HPTS Square Humidistat Pullcord Timer Extractor Fan with Wall Kit (93029AW)

Specification

• Diameter: 99mm
• Depth: 30mm
• Height: 99mm
• Width: 30mm
• Fan Flow Rate: 76m³/h
• No. of Output Settings: 1
• Sound pressure level: 35 db(A)@3m
• Specific Fan Power: 0.57W/l/s
• Power Rating: 12W
• Operation Speeds: 1
• IPX Rating: 4
• Voltage: 240V
• Timer: Yes
• Pullcord: Yes
• Humidistat: Yes
• Universal Mounting Kit: Yes
• Guarantee: 2 Year
• Box Contents: Fan/Installation guide/Fixing kit/Grille/Duct/Addendum sheet

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	No
Collection Name	DX100
Duct Size Diameter	98 mm
Extractor Type	Axial
Fan Size Diameter	100 mm
Finish Or Colour	White
Humidistat	Yes
Installation Kit	Yes
IP Rating	IPX4
Lip Depth	35.7 mm
Mounting	Ceiling, Wall, Window
Number Of Speeds	2
Pull Cord	Yes
Silent Running	Yes
Timer	Yes
Voltage	240 v
Height	99 mm
Weight	0.01 KG
Width	30 mm
