Product Overview

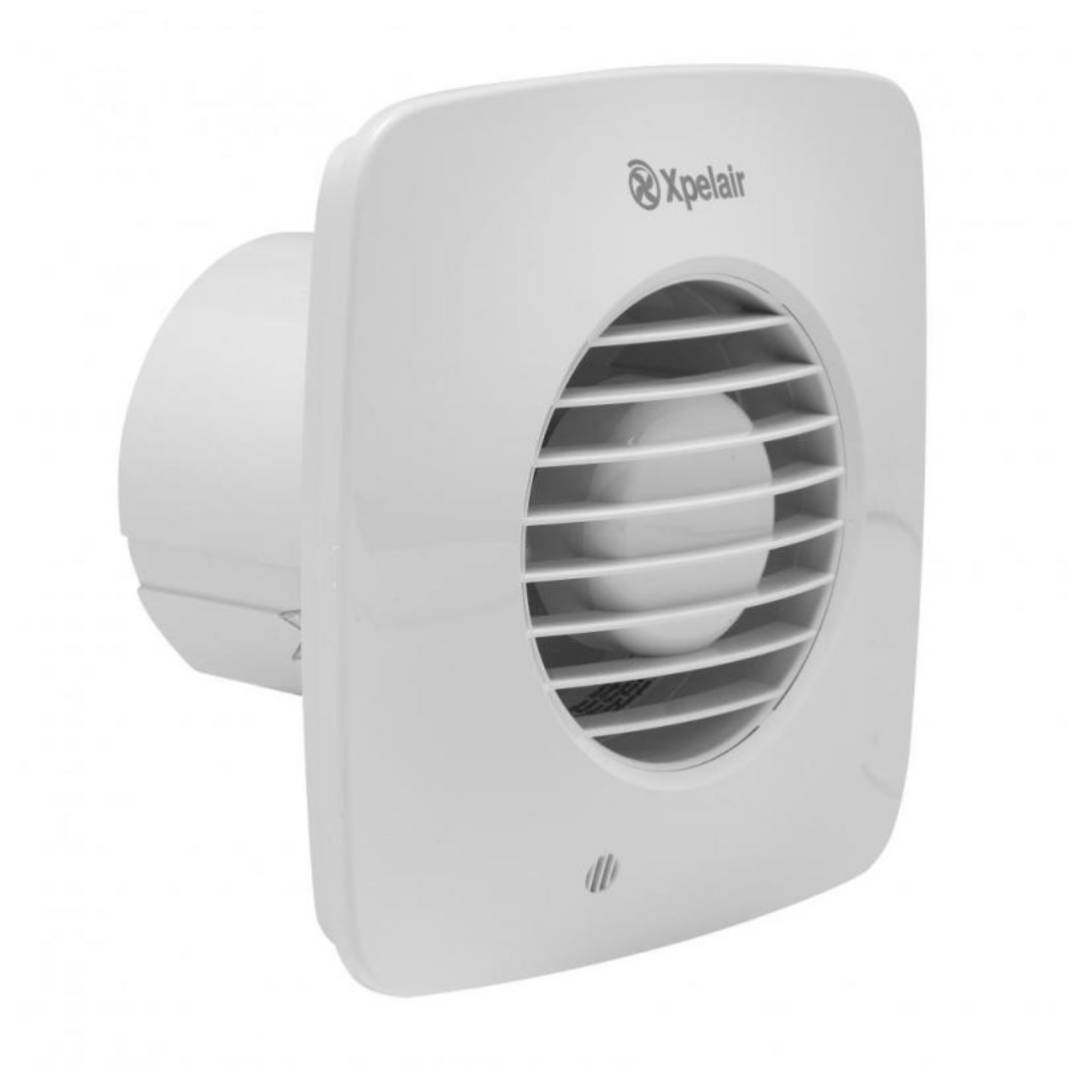

DX100HTR 100mm 4 inch extract fan Operated by built-in humidity sensor adjustable from 50-90% RH. Timer function adjustable 30 sec-30mins.

All DX100 extractor fans (except the CP clamp packed model) come complete with a universal mounting kit comprising of a wall tube, gasket x2, outer grille and skirt moulding for window mounting in single glazing up to 6mm. Also suitable for wall or ceiling mounting. DX100 models also include an air operated backdraught shutter, outer grille and ducting.

Criteria

• Specification:
  • Dimensions: 210mm x 192mm x 190mm
  • Style: Contemporary
  • Material: ABS
  • Installation Method: Screw-In
  • Sound Level: 22 dB

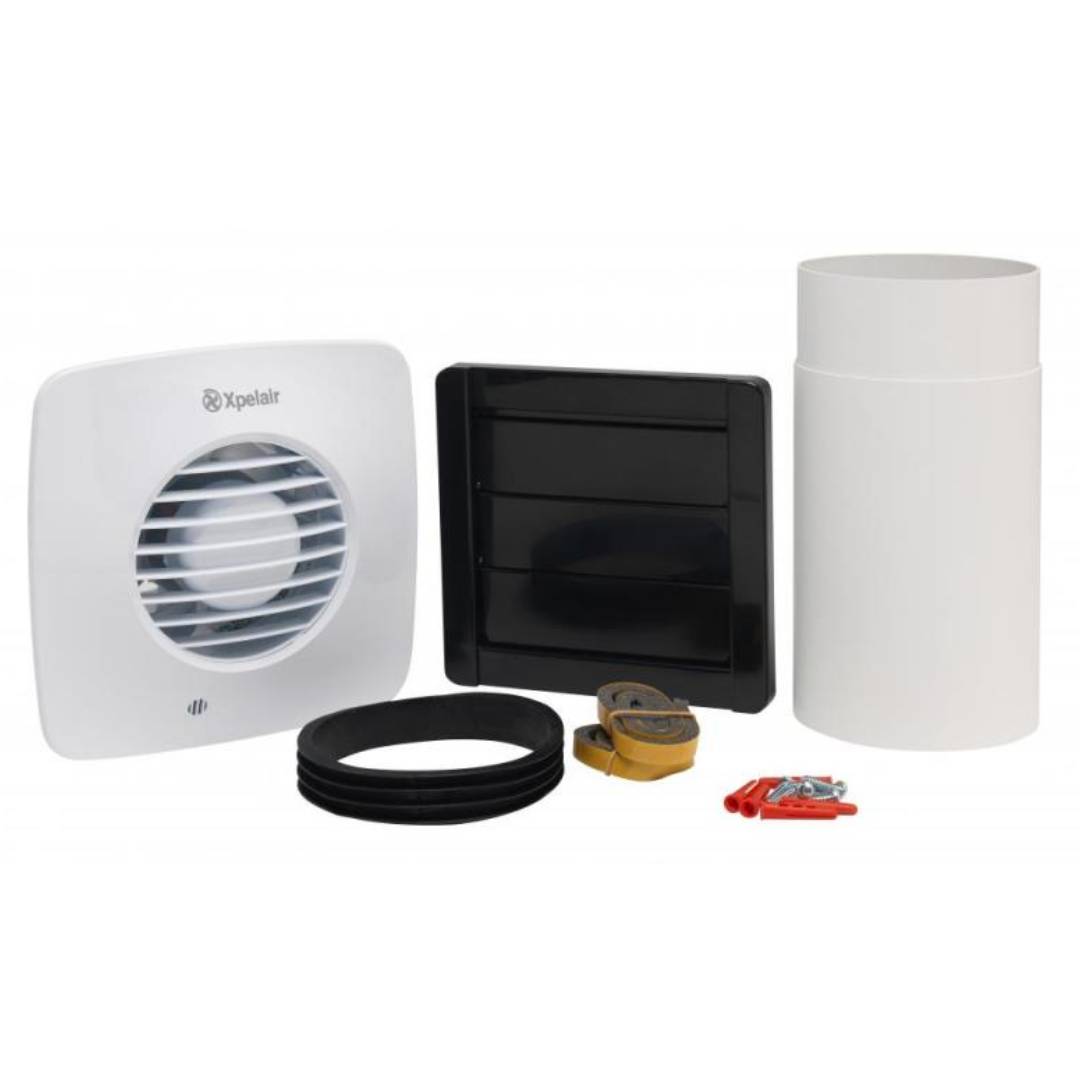

  • Box Contents: Extractor Fan/300mm telescopic wall tube/External Grille/Screws and Raw Plugs/Instruction Manual
• Features:
  • Ghost Air Movement Technology designed to deliver near-silent running
  • Twin speed extractor fan delivering selected extraction rate of 54 or 76 meters per hour

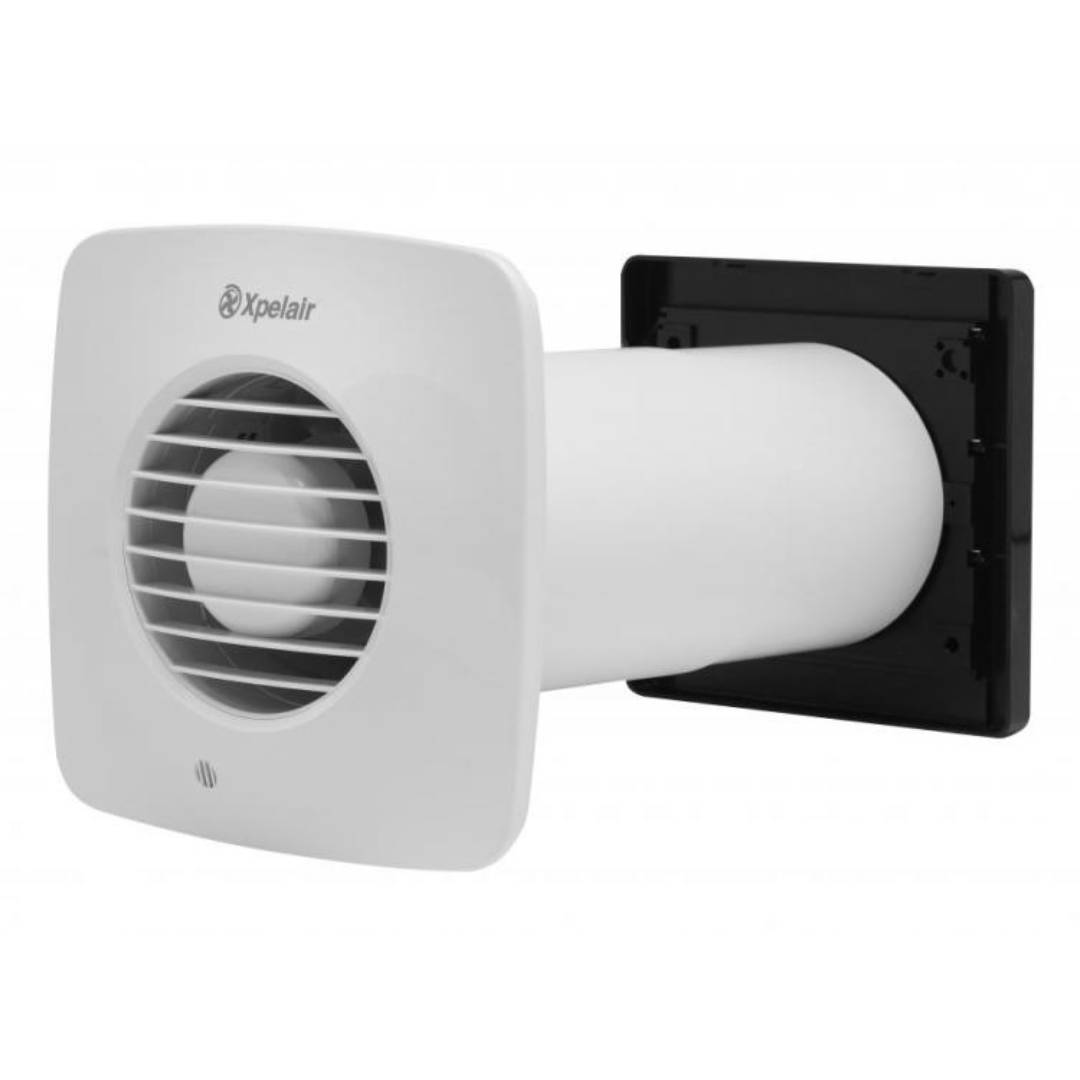

  • Wall kit with 300mm of telescopic wall tube and external grille
  • Designed for use in bathrooms and shower rooms, complies with building regulations Part F and L
• Guarantee: 3 Years
• Manufacturer Code: 93008AW

Features

• Ghost Air Movement Technology designed to deliver near-silent running
• Twin speed extractor fan delivering selected extraction rate of 54 or 76 meters per hour
• Wall kit with 300mm of telescopic wall tube and external grille
• Designed for use in bathrooms and shower rooms, complies with building regulations Part F and L

Specification

• Dimensions: 210mm x 192mm x 190mm
• Style: Contemporary
• Material: ABS
• Installation Method: Screw-In
• Sound Level: 22 dB
• Box Contents: Extractor Fan/300mm telescopic wall tube/External Grille/Screws and Raw Plugs/Instruction Manual

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	Yes
Duct Size Diameter	98 mm
Extractor Type	Axial
Fan Size Diameter	100 mm
Fan Size Diameter Inches	4 INCH
Finish Or Colour	White
Humidistat	Yes
Installation Kit	Yes
IP Rating	IPX4
Lip Depth	35.7 mm
Minimum Voltage	220 v
Mounting	Ceiling, Wall, Window
Number Of Speeds	2
Silent Running	Yes
Timer	Yes
Voltage	240 v
Height	178.1 mm
Weight	0.88 KG
