Product Overview

A comprehensive range of stylish, compact and easy to install 100mm (4") single speed extractor fans. Suitable for a wide range of applications including bathrooms, shower rooms and toilets, including zones 1 and 2.

All DX100 extractor fans (except the CP clamp packed model) come complete with a universal mounting kit comprising of a wall tube, gasket x2, outer grille and skirt moulding for window mounting in single glazing up to 6mm. Also suitable for wall or ceiling mounting. DX100 models also include an outer grille and ducting.

Criteria

• Specification:
  • Diameter: 99mm
  • Depth: 30mm
  • Height: 99mm
  • Width: 30mm
  • Fan Flow Rate: 76m³/h
  • No. of Output Settings: 1
  • Sound pressure level: 35 db(A)@3m
  • Specific Fan Power: 0.57W/l/s
  • Power Rating: 12W
  • Operation Speeds: 1
  • IPX Rating: 5
  • Voltage: 240V
  • Universal Mounting Kit: Yes
  • Guarantee: 2 Year

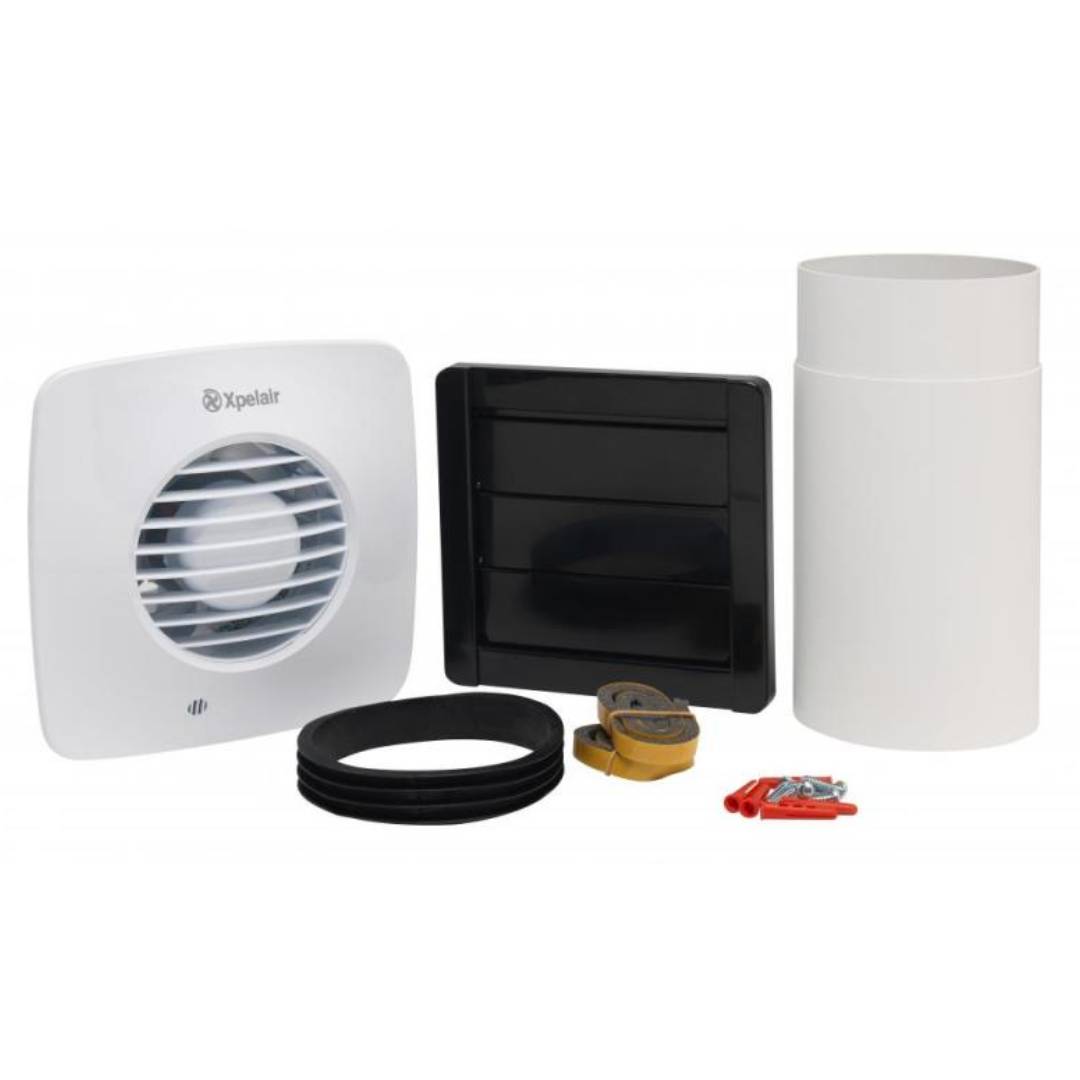

  • Box Contents: Fan/Installation guide/Wall tube/Fixing kit/Grille/Screw pack
• Features:
  • Single speed 100mm (4") axial extract fans
  • Maximum fan performance 21 l/s
  • Lubricated for life motors with thermal cut-out protection
  • Clip-off front cover for ease of cleaning
• Guarantee: 3 Years
• Manufacturer Code: 93025AW

Features

• Single speed 100mm (4") axial extract fans
• Maximum fan performance 21 l/s
• Lubricated for life motors with thermal cut-out protection
• Clip-off front cover for ease of cleaning

Short Description

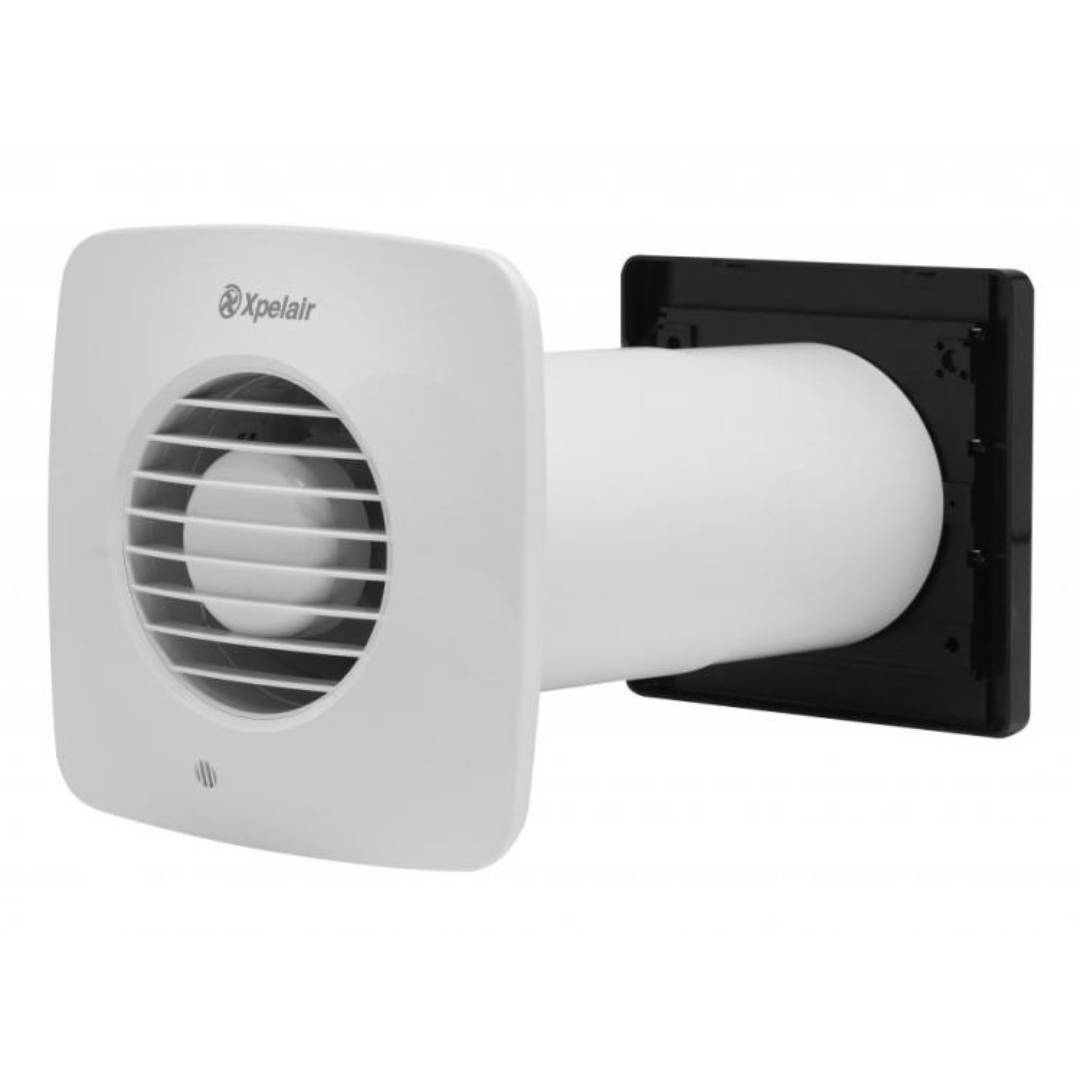

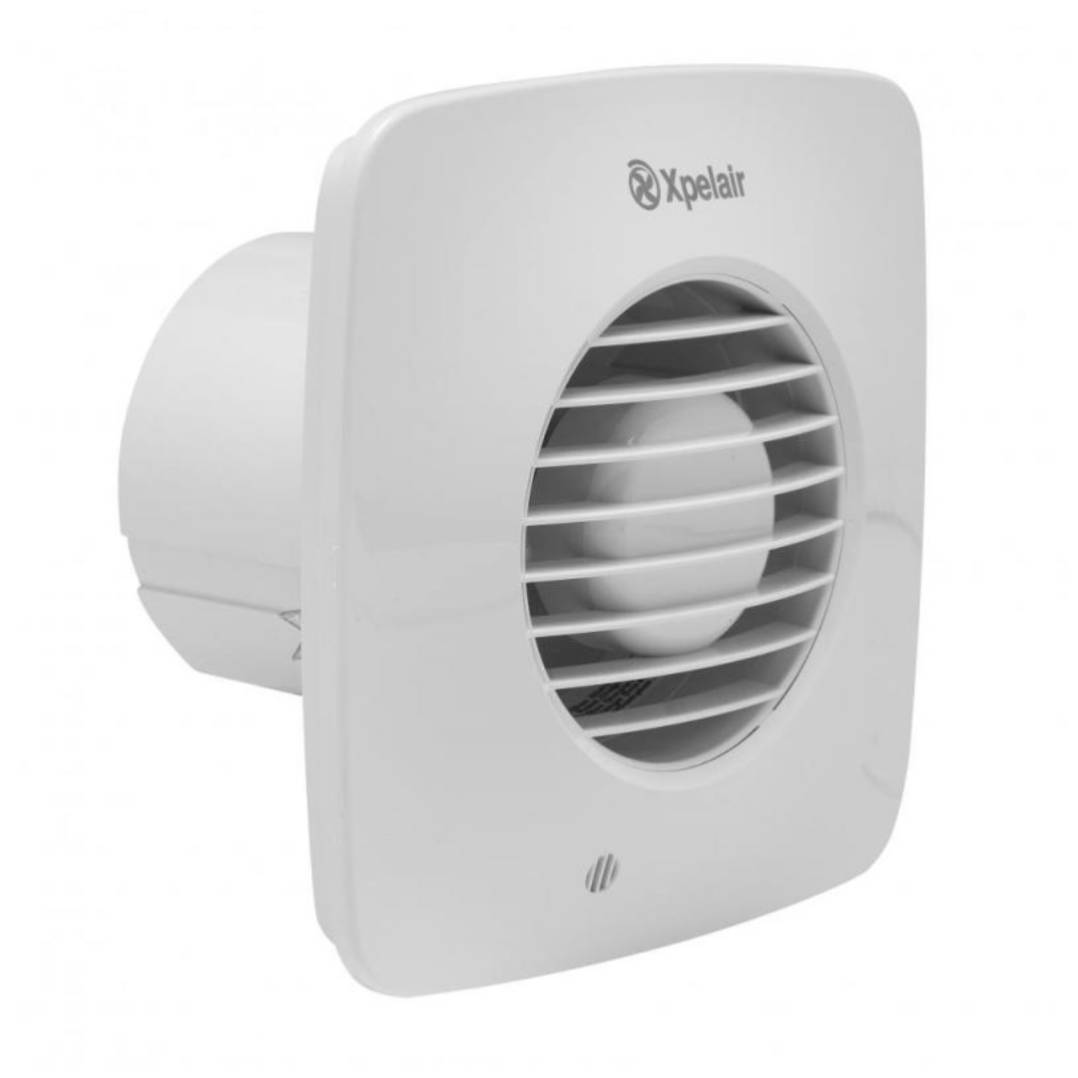

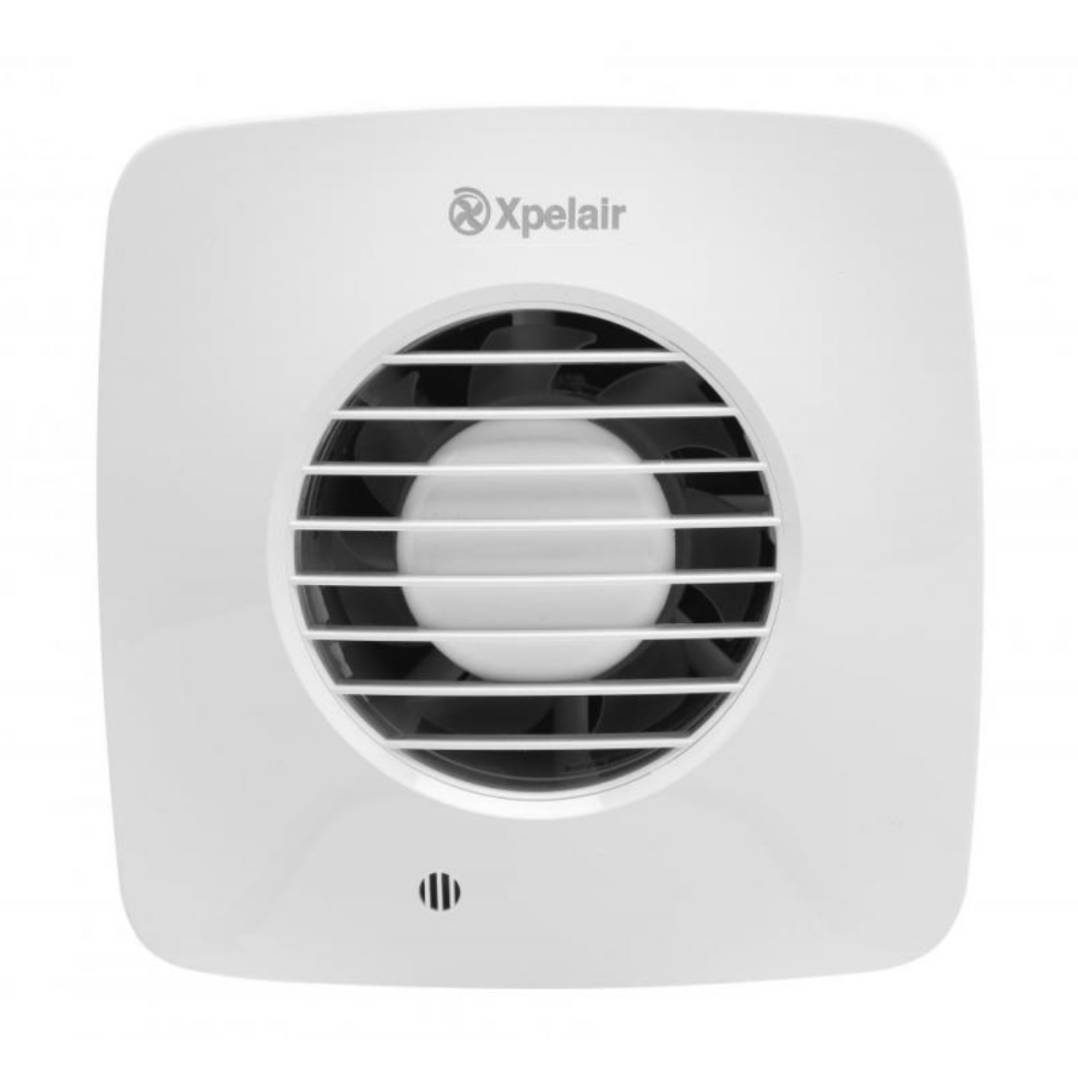

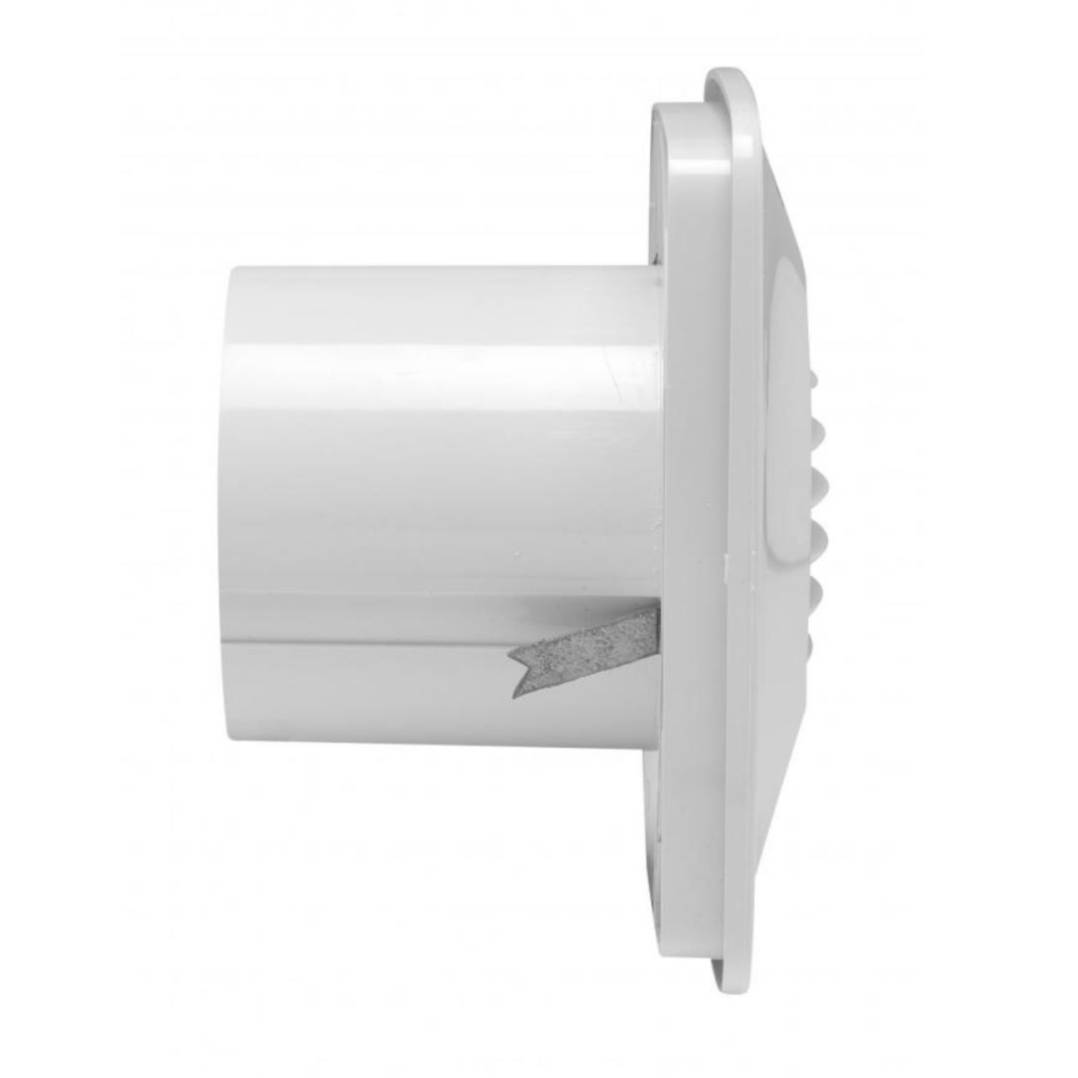

Xpelair DX100S Standard Square Extractor Fan with Wall Kit (93025AW)

Specification

• Diameter: 99mm
• Depth: 30mm
• Height: 99mm
• Width: 30mm
• Fan Flow Rate: 76m³/h
• No. of Output Settings: 1
• Sound pressure level: 35 db(A)@3m
• Specific Fan Power: 0.57W/l/s
• Power Rating: 12W
• Operation Speeds: 1
• IPX Rating: 5
• Voltage: 240V
• Universal Mounting Kit: Yes
• Guarantee: 2 Year
• Box Contents: Fan/Installation guide/Wall tube/Fixing kit/Grille/Screw pack

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Backdraft Shutter	No
Collection Name	DX100
Duct Size Diameter	98 mm
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	2
Finish Or Colour	White
Installation Kit	Yes
IP Rating	IPX4
Lip Depth	35.7 mm
Mounting	Ceiling, Wall, Window
Silent Running	Yes
Voltage	240 v
Height	99 mm
Width	30 mm
