Product Overview

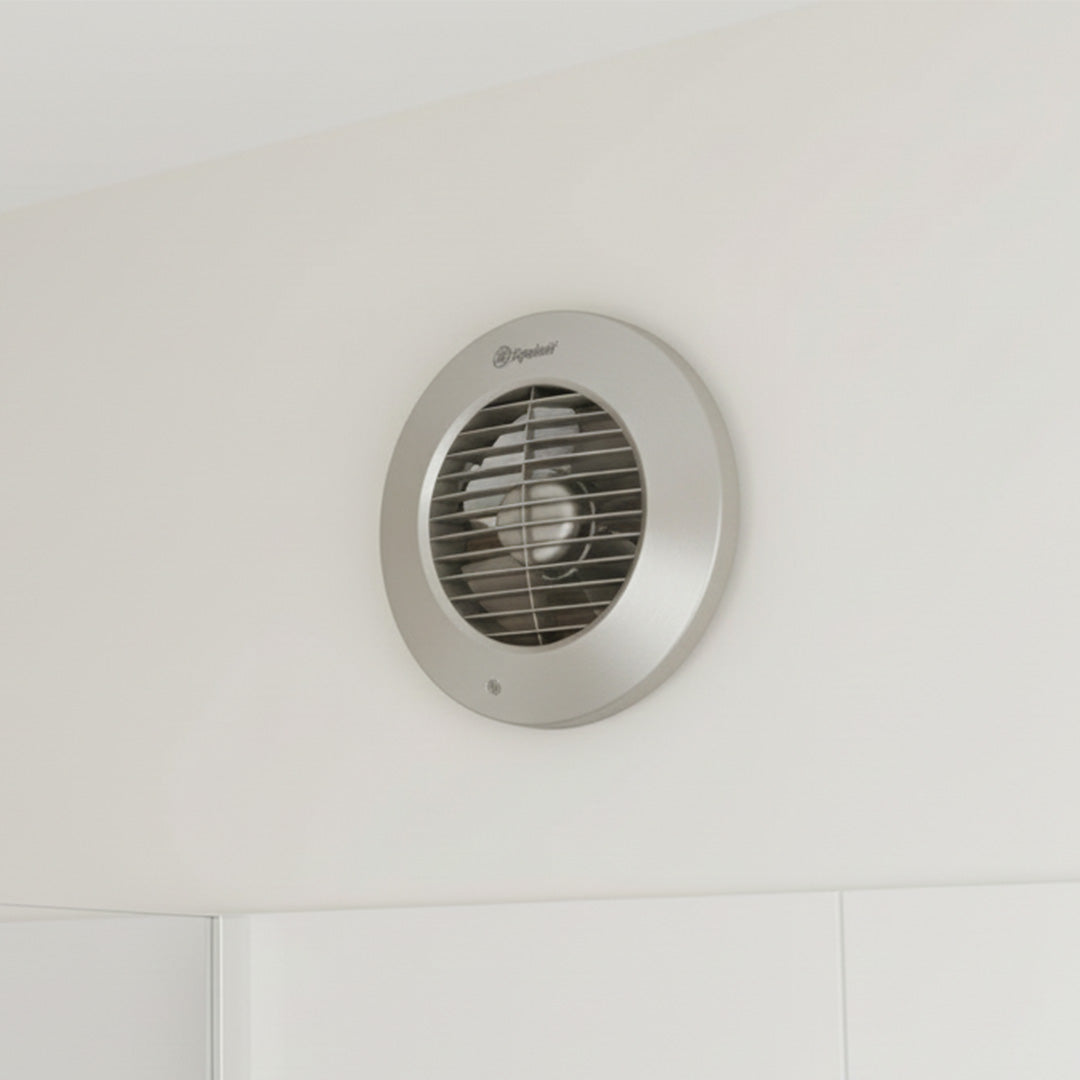

The Simply Silent DX150 two-speed, intermittent extractor fan range is designed to control humidity, odours and mould growth effectively in kitchens, utility rooms, larger bathrooms and individual offices. These fans feature a conventional grille-style fascia, are finished in cool white and available in either round or square.

The Xpelair DX150HTR requires a Xpelair Simply Silent 100mm Quick-Fit Window Kit 92996AA

Criteria

• Specification:
  • Electrical power rating (W): 12.7 / 28.1
  • Extract performance (FID, M³/h) Max/Min: 227 / 259
  • Extract performance (FID, l/s) Max/Min: 63 / 72
  • Sound pressure level db(A)@3m: 39.9 / 41.6
  • Specific Fan Power (SFP) (W/l/s): 0.20 / 0.39
  • Operation Speeds: 2
  • UK Guarantee (Years): 2
  • IPX Rating: 4
  • Timer: Yes
  • Humidistat: Yes
• Features:
  • Ghost Air Movement Technology enables quiet running
  • Stylish traditional grille design available in square and round
  • 2 speeds 63l/s and 72l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Knock-out section for side entry wiring
  • Complies with building regulations Part F and L
• Guarantee: 3 Years
• Manufacturer Code: 93077AW

Features

• Ghost Air Movement Technology enables quiet running
• Stylish traditional grille design available in square and round
• 2 speeds 63l/s and 72l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Knock-out section for side entry wiring
• Complies with building regulations Part F and L

Specification

• Electrical power rating (W): 12.7 / 28.1
• Extract performance (FID, M³/h) Max/Min: 227 / 259
• Extract performance (FID, l/s) Max/Min: 63 / 72
• Sound pressure level db(A)@3m: 39.9 / 41.6
• Specific Fan Power (SFP) (W/l/s): 0.20 / 0.39
• Operation Speeds: 2
• UK Guarantee (Years): 2
• IPX Rating: 4
• Timer: Yes
• Humidistat: Yes

Specification

Accreditations	Quiet Mark
Applicable Area	Bathroom, Kitchen, Laundry Room, Office, Toilet
Backdraft Shutter	Yes
Collection Name	Simply Silent
Duct Size Diameter	148 mm
Extractor Type	Axial
Fan Size Diameter	150 mm
Fan Size Diameter Inches	6 INCH
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX4
Lip Depth	39 mm
Minimum Voltage	220 v
Mounting	Ceiling, Panel, Wall
Number Of Speeds	2
Silent Running	Yes
Timer	Yes
Voltage	240 v
Width	229 mm
