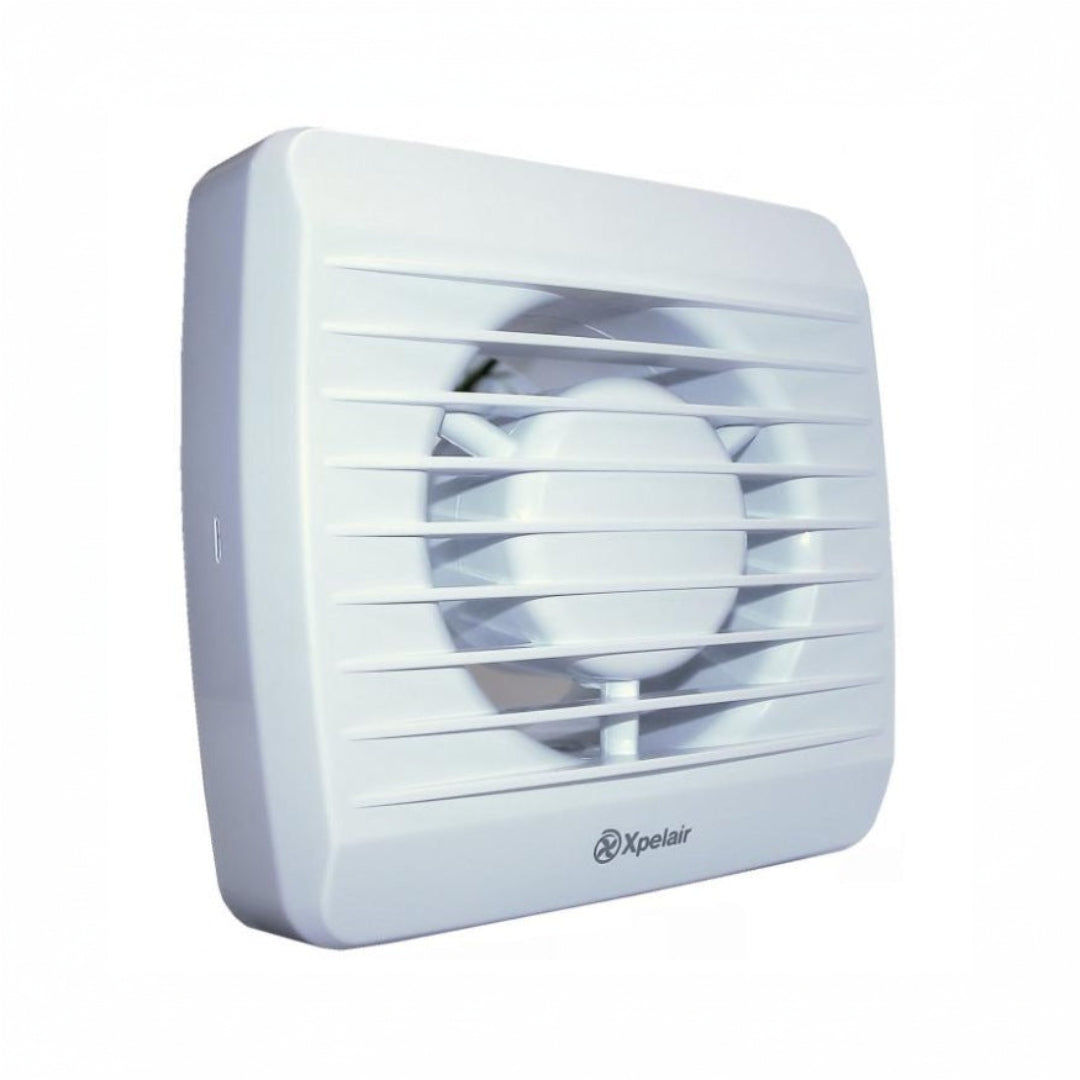

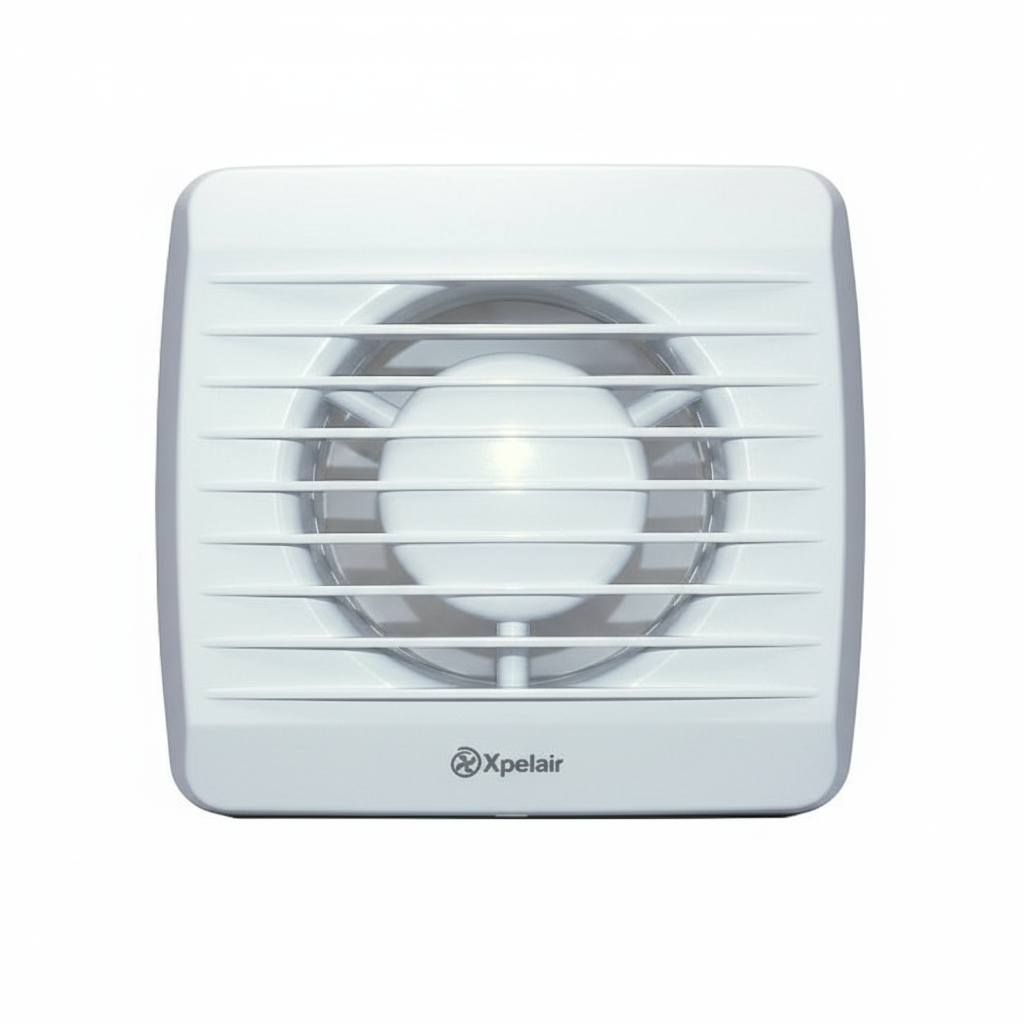

Xpelair LV100HTA Low Voltage 100mm Axial Extract Fan - 92569AW
Quick Find Code: 92569AW
- Designed for installation over the splash zone
- Comes with complete mounting kit
- W165mm x D42mm x H151mm
- Includes air-operated backdraught shutter
- Meets IPX5 and BEAB safety standards
Product Overview
The Xpelair 92569AW, also known as the LV100HTA, is a high-performance low voltage axial extractor fan designed for optimal ventilation in bathrooms and other moisture-prone areas. This 100mm fan is equipped with an integral humidistat sensor and timer, ensuring automatic operation based on humidity levels. Its sleek design and efficient performance make it a reliable choice for maintaining a fresh and comfortable environment.

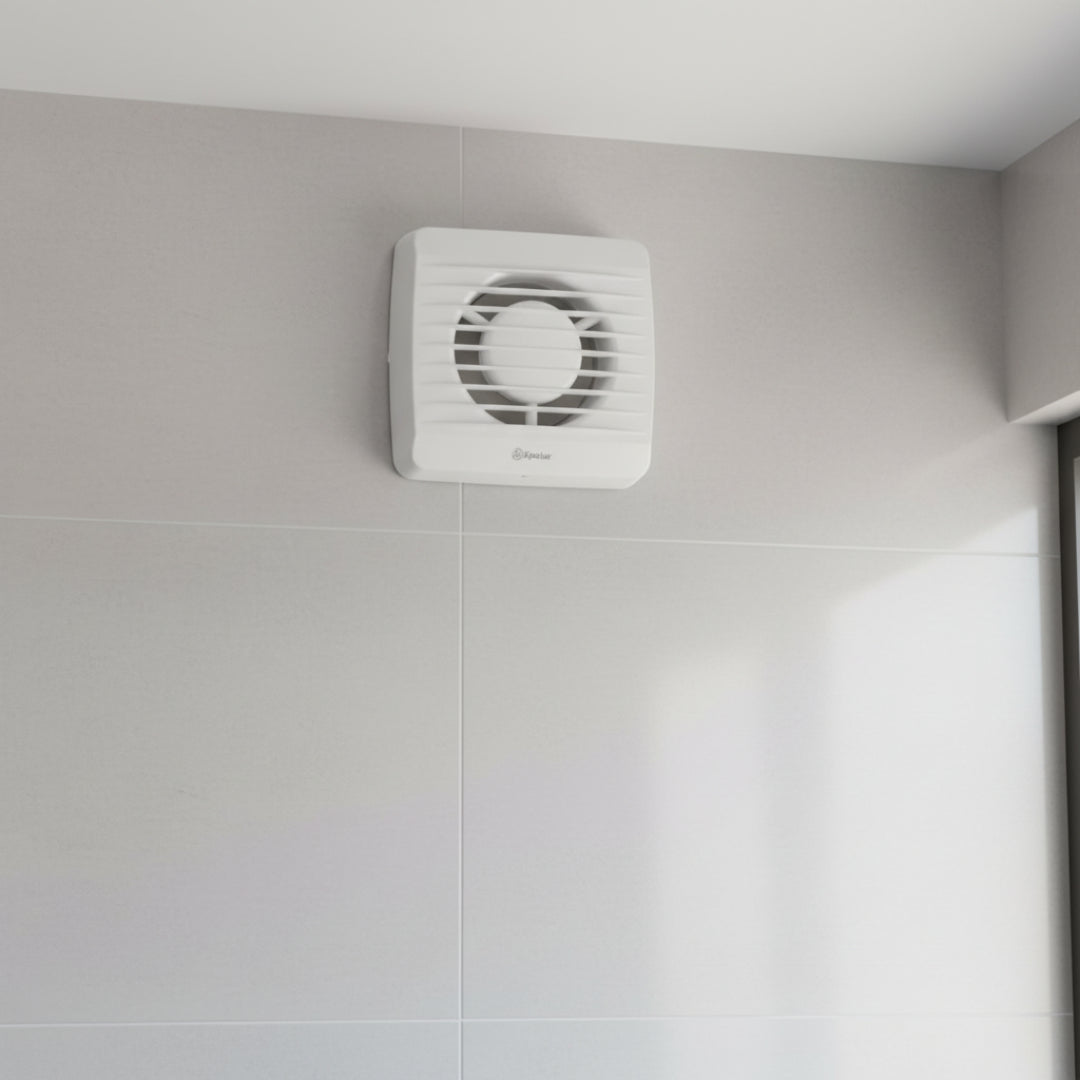

This extractor fan is specifically designed for safety and versatility, suitable for installation directly in or over the splash area (Zone 1) in bathrooms. The LV100HTA comes with a complete fitting kit, including an air-operated backdraught shutter and a 12V SELV transformer, ensuring safe and easy installation. Its compact dimensions and quiet operation (37 dB) make it an unobtrusive addition to any space.
In addition to its practical features, the Xpelair 92569AW meets rigorous safety standards, including IPX5 and BEAB approval. Its robust construction and reliable performance are backed by a two-year warranty, providing peace of mind for users. With its combination of advanced features and ease of installation, the LV100HTA is an excellent choice for effective and safe ventilation.
Downloads
Specification
Airflow | 82 m3/h |
---|---|
Applicable Area | Bathroom, Laundry Room, Toilet |
Collection Name | LV100 |
Duct Size Diameter | 99 mm |
Extraction Rate Litres Second | 23 L/s |
Extractor Type | Axial |
Fan Size Diameter | 4 in |
Finish Or Colour | White |
Humidistat | Yes |
Installation Kit | Yes |
IP Rating | IPX5 |
Lip Depth | 30 mm |
Minimum Voltage | 220 V |
Mounting | Ceiling, Panel, Wall, Window |
MPN | 92569AW |
Number Of Speeds | 1 |
Old GTIN | 5013562925693 |
Timer | Yes |
Voltage | 240 V |
Depth | 75 mm |
Height | 155 mm |
Weight | 2.2 kg |
Width | 165 mm |
