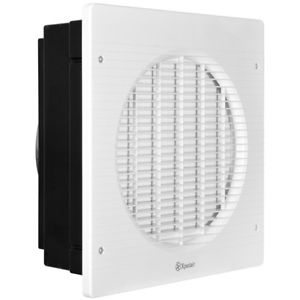

Xpelair PX12 Commercial Ceiling Fan - 91298AW

Xpelair PX12 Commercial Ceiling Fan - 91298AW

Quick Find Code: 91298AW

4 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Xpelair PX12 Commercial Ceiling Fan - 91298AW

Quick Find Code: 91298AW

4 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Warehouse
Backdraft ShutterYes
Collection NamePX12
Duct Size Diameter315 mm
Extractor TypeAxial
Fan Size Diameter300 mm

£267.94 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£262.59Save 2%
6+£259.91Save 3%

Product Overview

AirConCentre.co.uk is delighted to offer this unit with a free four year guarantee - giving you an additional year's peace of mind on top of Xpelair's standard three year guarantee.

This fan introduces a greater flexibility into the design of commercial and larger domestic ventilation systems. This fan is perfect for ceiling and panel applications in kitchens, restaurants, pubs, offices, schools, shops and kiosks. It can be installed at any angle in ceilings, voids and wall panels of any thickness. The ceiling hugging, low profile white fascia is styled to blend into any ceiling type, whether smooth, tiled or textured. For safety, a fingerguard is integrated into the ultra slim high gloss ABS fascia. An integral spigot allows the attachment of flexible ducting, such as XFlex. Installation in ceilings and wall panels is rapid thanks to the concealed fixing points provided. This fan is reversible making them ideal for ducted input systems in the hospitality industry. This unit also has a positive plug and socket assembly provides a means of isolation for service access without the safety risk of accidental disconnection.

Criteria

  • Specification:
    • 2 Speed
    • 646-1712 (FID, m3/h) Extract Performance
    • 179-476 (FID, l/s) Extract Performance
    • 845-1037 (FID, m3/h) Intake Performance
    • 235-288 (FID, l/s) Intake Performance
    • 48-54 (dB(A)@3m) Sound Pressure Level
    • 315 mm (Ducting Size)
    • 85 W (Electrical Power Rating)
    • 434 x 434mm (Hole Diameter (w x h))
    • 315 mm (Spigot Size)
    • 7.9 Kg (Weight)
    • 4 Year Guarantee
  • Features:
    • High Performance intake / extract axial flow ventilation unit.
    • Choice of optional controllers
    • Suitable for installation at any angle in ceilings, voids and wall panels of any thickness.
    • Balanced external rotor motor and sickle impeller for quiet efficiency.
    • Sealed for life maintenance free bearings, suitable for running at any angle.
    • Built in silent action electrothermal shutter cassette.
    • Ultra slim high gloss ABS fascia with integral safety finger guard.
  • Guarantee: 4 Years
  • Manufacturer Code: 91298AW

Features

  • High Performance intake / extract axial flow ventilation unit.
  • Choice of optional controllers
  • Suitable for installation at any angle in ceilings, voids and wall panels of any thickness.
  • Balanced external rotor motor and sickle impeller for quiet efficiency.
  • Sealed for life maintenance free bearings, suitable for running at any angle.
  • Built in silent action electrothermal shutter cassette.
  • Ultra slim high gloss ABS fascia with integral safety finger guard.

Specification

  • 2 Speed
  • 646-1712 (FID, m3/h) Extract Performance
  • 179-476 (FID, l/s) Extract Performance
  • 845-1037 (FID, m3/h) Intake Performance
  • 235-288 (FID, l/s) Intake Performance
  • 48-54 (dB(A)@3m) Sound Pressure Level
  • 315 mm (Ducting Size)
  • 85 W (Electrical Power Rating)
  • 434 x 434mm (Hole Diameter (w x h))
  • 315 mm (Spigot Size)
  • 7.9 Kg (Weight)
  • 4 Year Guarantee

Specification

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Warehouse
Backdraft ShutterYes
Collection NamePX12
Duct Size Diameter315 mm
Extractor TypeAxial
Fan Size Diameter300 mm
Fan Size Diameter Inches12 INCH
Finish Or ColourWhite
Lip Depth18 mm
Minimum Voltage220 v
MountingCeiling, Panel
Number Of Speeds1
Voltage240 v
Height476 mm
Weight7.9 KG
Width473 mm
