Product Overview

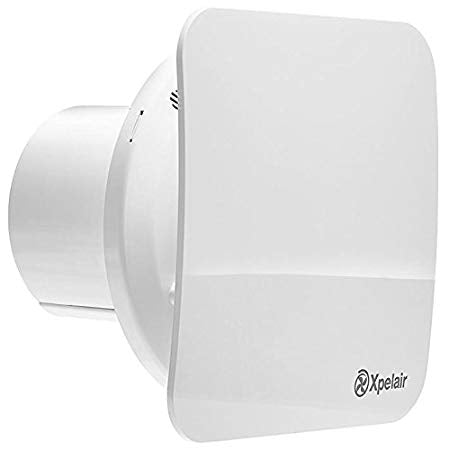

The Simply Silent C4HTS Fan from Xpelair is a two speed, silent, intermittent humidity fan with overrun timer which is suitable for wall, ceiling, window and panel mounting. This Simply Silent fan incorporates Ghost Airflow Technology which offers all of the following benefits.


•     Flow straighteners guide air through ducting which reduces turbulence, smoothing and making the air flow laminar.
•     A cone reduces turbulence in front of the fan and air is directed straight into the impellor
•     Ball-bearing motors suppress noise from the motor

For ease of installation


•     Strengthened ducting reduces duct distortion on fitting and avoids breakage
•     Radial screw slots for easy alighnment of back plate prior to final fixing
•     Features a level line at bottom of back plate for ease of alignment
•     Large cable access for ease of wiring
•     Front cover is easy to remove or replace
•     To replace  - hook at top, rotate, press and clip back into place
•     Notch to remove cover with tool - no screws
•     Easy cleaning thanks to twist and turn baffle

It is finished in white and boasts a modern discreet design which will complement even the most exacting decor and environmental requirements. The fan is IPX4 rated and meets Building Regulations Part F.

Criteria

• Specification:
  • Electrical power rating (W): 6.7 / 7.7
  • Extract performance (FID, M³/h) Max/Min: 54 / 76
  • Extract performance (FID, l/s) Max/Min: 15 / 21
  • Sound pressure level db(A)@3m: 16 / 29
  • Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
  • Operation Speeds: 2
  • UK Guarantee (Years): 2
  • IPX Rating: 4
  • Weight (kg): 0.65
  • Timer: Yes
  • Humidistat: Yes
  • Dimensions: Length: 180mm x Width: 180mm x Depth: 136.5mm
• Features:
  • The fan has two speeds
  • Intermittent and silent in operation
  • Suitable for wall, ceiling, window and panel mounting
  • Humidity control
  • Overrun timer
  • Easy to install and/or to replace an existing fan
  • 2 year warranty on the product
  • The unit is IPX4 rated
  • Meets with Building Regulations Part F
  • Quiet Mark pending
• Guarantee: 3 Years
• Manufacturer Code: 92966AW

Features

• The fan has two speeds
• Intermittent and silent in operation
• Suitable for wall, ceiling, window and panel mounting
• Humidity control
• Overrun timer
• Easy to install and/or to replace an existing fan
• 2 year warranty on the product
• The unit is IPX4 rated
• Meets with Building Regulations Part F
• Quiet Mark pending

Short Description

Xpelair Simply Silent C4HTS Square Humidity Extract Fan with Timer

Specification

• Electrical power rating (W): 6.7 / 7.7
• Extract performance (FID, M³/h) Max/Min: 54 / 76
• Extract performance (FID, l/s) Max/Min: 15 / 21
• Sound pressure level db(A)@3m: 16 / 29
• Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
• Operation Speeds: 2
• UK Guarantee (Years): 2
• IPX Rating: 4
• Weight (kg): 0.65
• Timer: Yes
• Humidistat: Yes
• Dimensions: Length: 180mm x Width: 180mm x Depth: 136.5mm

Specification

Applicable Area	Bathroom, Laundry Room, Office, Toilet
Collection Name	Simply Silent
Duct Size Diameter	98 mm
Extractor Type	Axial
Fan Size Diameter	4 INCH
Fan Speeds	2
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX4
Lip Depth	50 mm
Minimum Voltage	220 v
Mounting	Ceiling, Panel, Wall, Window
Silent Running	Yes
Timer	Yes
Voltage	240 v
Height	180 mm
Weight	0.998 KG
Width	180 mm
