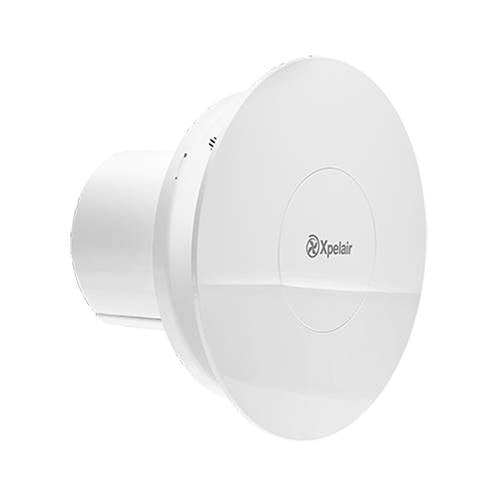

Product Overview

• Flow straighteners guide air through ducting which reduces turbulence, smoothing and making the air flow laminar.
• A cone reduces turbulence in front of the fan and air is directed straight into the impellor
• Ball-bearing motors suppress noise from the motor

For ease of installation

• Strengthened ducting reduces duct distortion on fitting and avoids breakage
• Radial screw slots for easy alignment of back plate prior to final fixing
• Features a level line at bottom of back plate for ease of alignment
• Large cable access for ease of wiring
• Backplate has only three screws not four - thus saving 25% of time at installation
• Front cover is easy to remove or replace
• To replace  - hook at top, rotate, press and clip back into place
• Notch to remove cover with tool - no screws
• Easy cleaning thanks to twist and turn baffle

Criteria

• Specification:
  • Dimensions: Diameter 200mm x Depth 131mm
• Features:
  • The fan is a constant volume fan
  • Integral hour-run on timer
  • Low running costs
  • Suitable for wall, ceiling, window and panel mounting
  • Easy to install and/or to replace an existing fan
  • 5 year warranty on the motor
  • Meets with Building Regulations Part F
  • Quiet Mark pending
• Stock: 6
• Delivery: Same Day Dispatch
• Manufacturer Code: 92969AW
• sold out: Yes

Features

• The fan is a constant volume fan
• Integral hour-run on timer
• Low running costs
• Suitable for wall, ceiling, window and panel mounting
• Easy to install and/or to replace an existing fan
• 5 year warranty on the motor
• Meets with Building Regulations Part F
• Quiet Mark pending

Specification

• Dimensions: Diameter 200mm x Depth 131mm

Specification

Duct Size Diameter	98 mm
Finish Or Colour	White
IP Rating	IPX4
Lip Depth	44.5 mm
Mounting	Ceiling, Wall
Number Of Speeds	3
Voltage	230 v
Width	200 mm
