Product Overview

Simply Silent DX100 round grille fascia 4" 100mm extract fan, featuring Ghost Air Movement Technology for quiet running. For use with an external switch or sensor. Is typically connected to the room lighting circuit.

Criteria

• Specification:
  • Electrical power rating (W): 6.7 / 7.7
  • Extract performance (FID, M³/h) Max/Min: 54 / 76
  • Extract performance (FID, l/s) Max/Min: 15 / 21
  • Sound pressure level db(A)@3m: 22 / 34
  • Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
  • Operation Speeds: 2
  • UK Guarantee: 2 Years
  • IPX Rating: 4
• Features:
  • Extremely quiet running - only 22dBA@3M at low speed
  • Stylish traditional grille design available in square and round
  • 2 speeds 15l/s and 21l/s - selectable at install
  • Suitable for wall, ceiling, panel and window fitting
  • Complies with building regulations Part F and L
• Delivery_Info:

  Order by 7pm for Next Working Day Delivery

• Manufacturer Code: 92997AW

Features

• Extremely quiet running - only 22dBA@3M at low speed
• Stylish traditional grille design available in square and round
• 2 speeds 15l/s and 21l/s - selectable at install
• Suitable for wall, ceiling, panel and window fitting
• Complies with building regulations Part F and L

Short Description

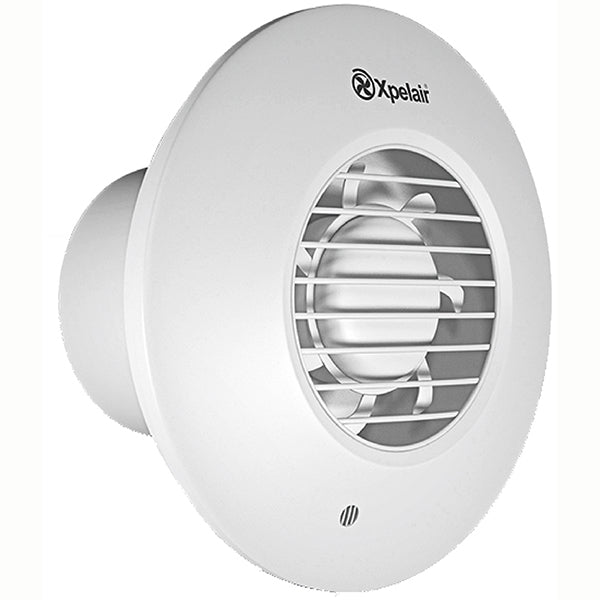

Xpelair Simply Silent DX100BR 100mm Standard Round Extractor Fan

Specification

• Electrical power rating (W): 6.7 / 7.7
• Extract performance (FID, M³/h) Max/Min: 54 / 76
• Extract performance (FID, l/s) Max/Min: 15 / 21
• Sound pressure level db(A)@3m: 22 / 34
• Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
• Operation Speeds: 2
• UK Guarantee: 2 Years
• IPX Rating: 4

Specification

Applicable Area	Bathroom, Laundry Room, Toilet
Collection Name	Simply Silent
Extractor Type	Axial
Fan Size Diameter	100 mm
Finish Or Colour	White
IP Rating	IPX4
Mounting	Ceiling, Wall, Window
Number Of Speeds	2
Silent Running	Yes
Voltage	240 v
Width	100 mm
