Xpelair WX12 Commercial Wall Fan 12" / 100mm - 90011AW

Xpelair WX12 Commercial Wall Fan 12" / 100mm - 90011AW

Quick Find Code: 90011AW

4 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Xpelair WX12 Commercial Wall Fan 12" / 100mm - 90011AW

Quick Find Code: 90011AW

4 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Collection NameWX12
Duct Size Diameter315 mm
Extractor TypeAxial
Fan Size Diameter300 mm

£266.78 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£261.45Save 2%
6+£258.78Save 3%

Product Overview

Airconcentre.co.uk offers the Xpelair 90011AW with an exclusive 4 Year manufacturer’s warranty, that is an additional 2 years warranty to the standard 2 years, giving you an amazing 4 years warranty free of charge!  Available only at Airconcentre.co.uk, we give you extra peace of mind at no extra cost!
_________________________________________________________

Slimline, hard-wearing, efficient and reliable – that's the Xpelair WX12 commercial wall fan in a nutshell. Designed specifically for application in restaurants, pubs, commercial kitchens, shops and a wide range of other business premises, this extractor fan is fitted with state of the art, pre-balanced sickle bladed impellors, ensuring a smooth and quiet operation throughout its service life.

Suitable for both brick (cavity or single) and timber walls, the WX12 is not only stylish, but also puts safety first, with a finger guard integrated with the PC-ABS fascia and exterior grille.

And the Xpelair WX12 isn't just a highly effective extractor fan, with it reversibility feature it becomes a powerful cooling system, suitable for use during the hot summer months. Equipped with a positive plug and socket assembly, the unit it easy to isolate, allowing for simple service access, and with its housing, impellors and shutter cassette all removable in seconds, cleaning the WX12 is a trouble-free exercise.

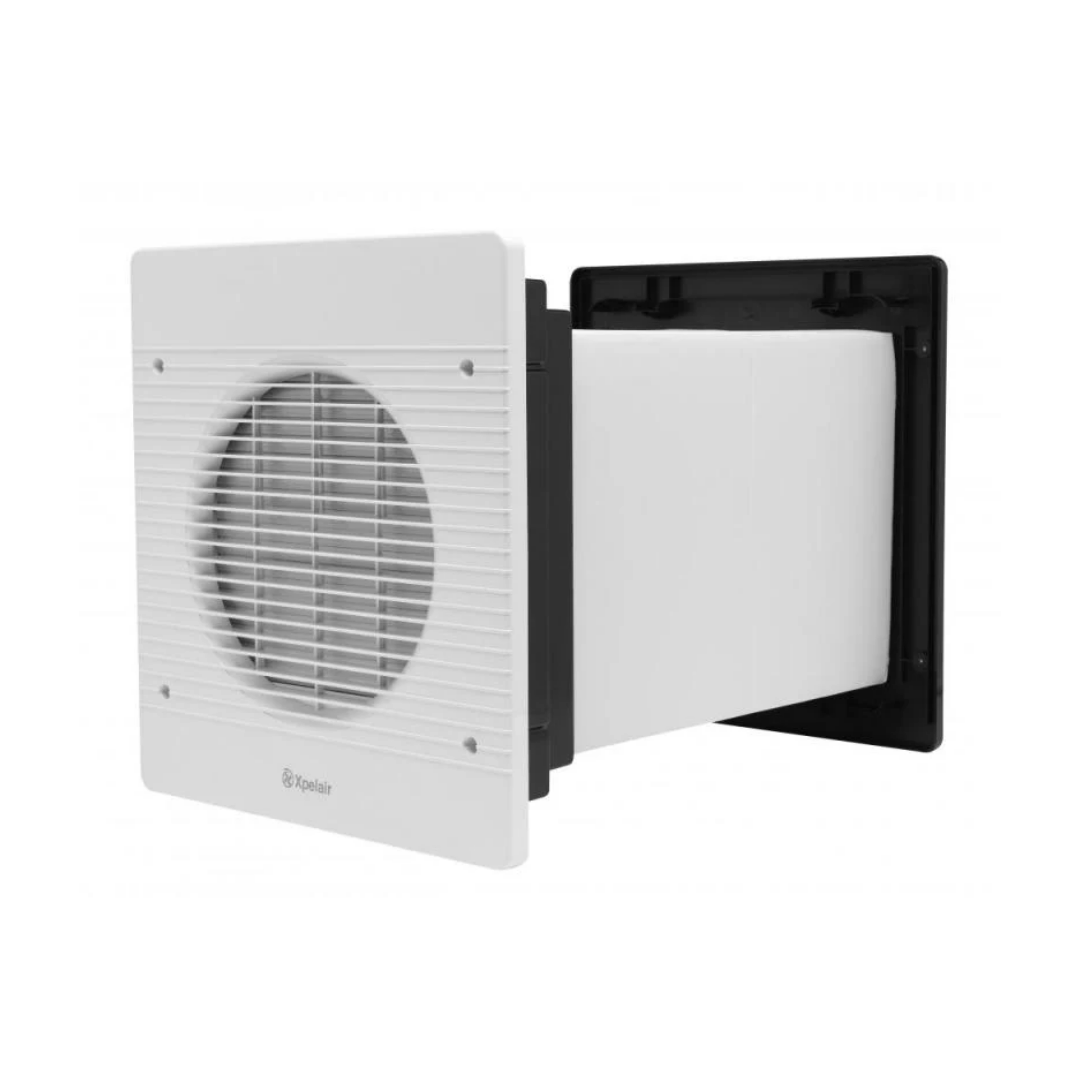

Supplied with an installation kit, including a wall liner, the unit has everything you need to get started.

Criteria

  • Specification:
    • 2 Speeds
    • 645-1715 (FID, m3/h) Extract Performance
    • 179-476 (FID, l/s) Extract Performance
    • 815-969 (FID, m3/h) Intake Performance
    • 226-269 (FID, l/s) Intake Performance
    • 48-54 (dB(A)@3m) Sound Pressure Level
    • 85 W (Electrical Power Rating)
    • 434 x 434 mm (Hole Diameter)
    • 522 mm (Max Wall Thickness)
    • 8.3 Kg Weight
    • 4 Year Guarantee
  • Features:
    • High performance intake/extract axial ventilation unit.
    • Choice of optional controllers.
    • Suitable for single, cavity brick and current timber frame walls.
    • Balanced external rotor motor and impeller for quiet efficiency.
    • Sealed for life maintenance free bearings, suitable for running at any angle.
    • Built-in silent action electro-thermal shutter cassette.
    • Passive tricklevent facility for background ventilation with fan Off.
    • Ultra slim high gloss ABS fascia with integral finger safety guard.
    • Shadow grey external grille for unobtrusive external appearance with built-in weather protection.
    • Tamperproof internal connection safety plug and socket.
    • Remote Switch (Not Supplied)
    • Selectable intake, extract or controller operation.
  • Manufacturer Code: 90011AW

Features

  • High performance intake/extract axial ventilation unit.
  • Choice of optional controllers.
  • Suitable for single, cavity brick and current timber frame walls.
  • Balanced external rotor motor and impeller for quiet efficiency.
  • Sealed for life maintenance free bearings, suitable for running at any angle.
  • Built-in silent action electro-thermal shutter cassette.
  • Passive tricklevent facility for background ventilation with fan Off.
  • Ultra slim high gloss ABS fascia with integral finger safety guard.
  • Shadow grey external grille for unobtrusive external appearance with built-in weather protection.
  • Tamperproof internal connection safety plug and socket.
  • Remote Switch (Not Supplied)
  • Selectable intake, extract or controller operation.

Specification

  • 2 Speeds
  • 645-1715 (FID, m3/h) Extract Performance
  • 179-476 (FID, l/s) Extract Performance
  • 815-969 (FID, m3/h) Intake Performance
  • 226-269 (FID, l/s) Intake Performance
  • 48-54 (dB(A)@3m) Sound Pressure Level
  • 85 W (Electrical Power Rating)
  • 434 x 434 mm (Hole Diameter)
  • 522 mm (Max Wall Thickness)
  • 8.3 Kg Weight
  • 4 Year Guarantee

Specification

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Collection NameWX12
Duct Size Diameter315 mm
Extractor TypeAxial
Fan Size Diameter300 mm
Fan Size Diameter Inches12 INCH
Finish Or ColourWhite
Installation KitYes
IP RatingIPX4
Lip Depth18 mm
Minimum Voltage220 v
MountingWall
Number Of Speeds2
Voltage240 v
Height476 mm
Weight8.3 KG
Width473 mm
