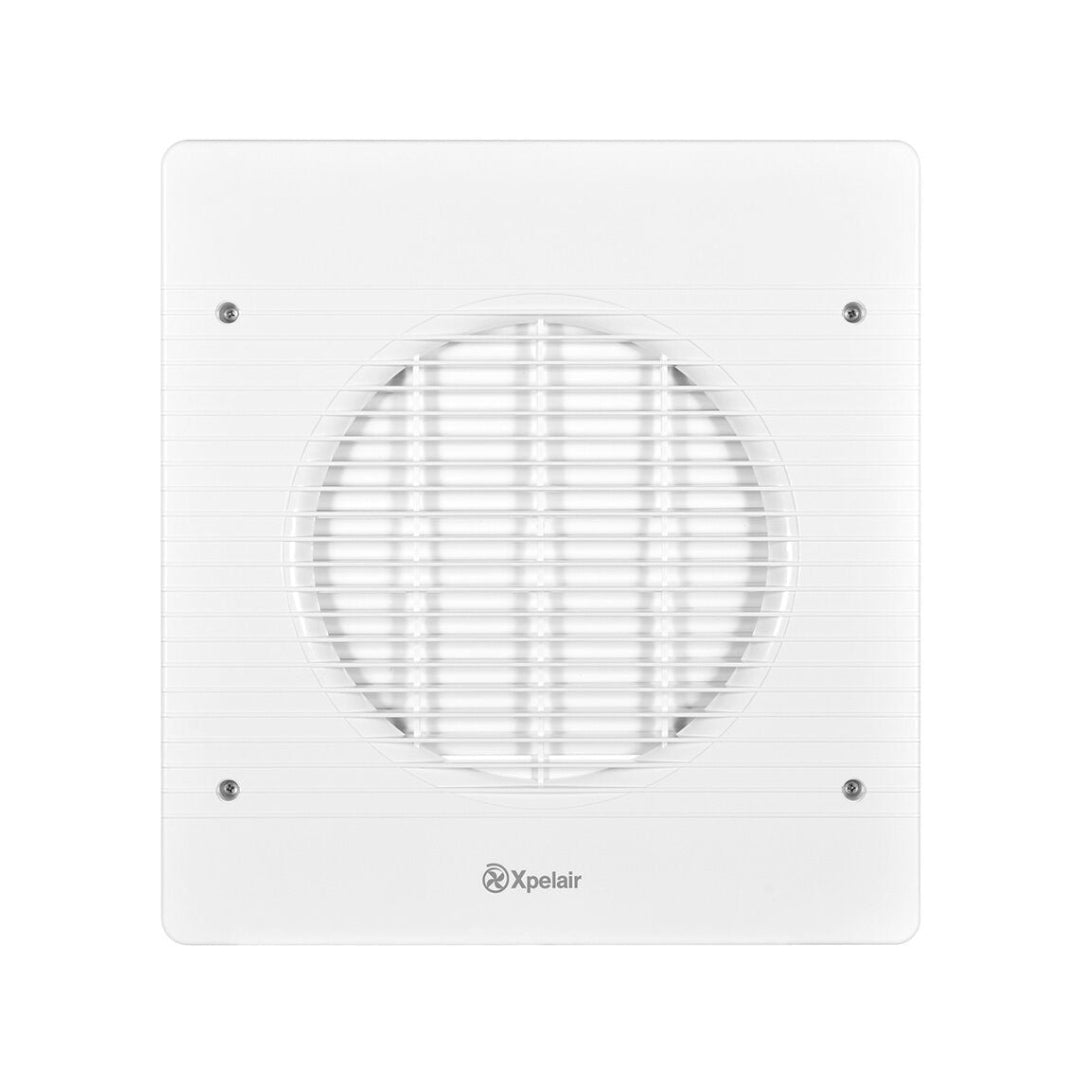

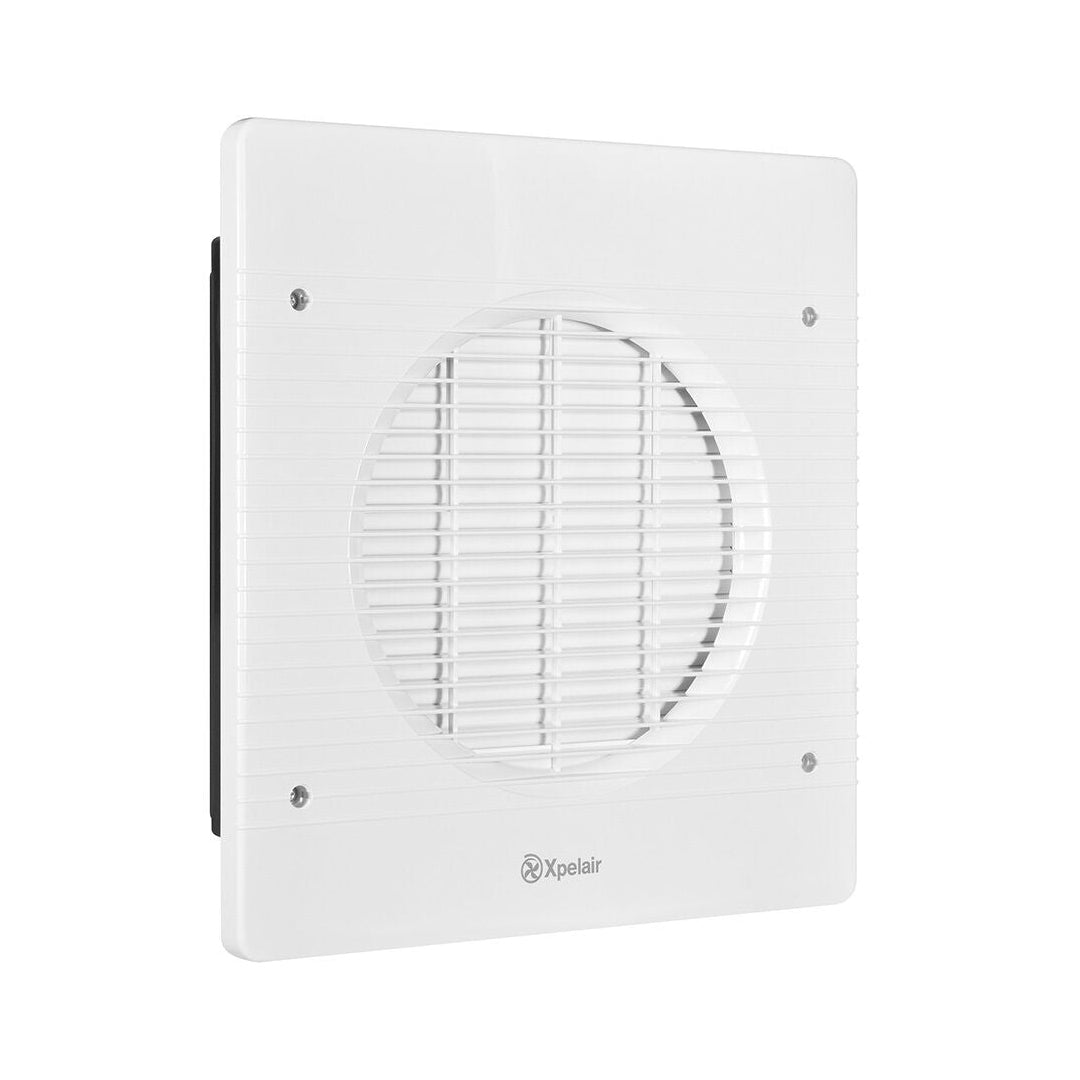

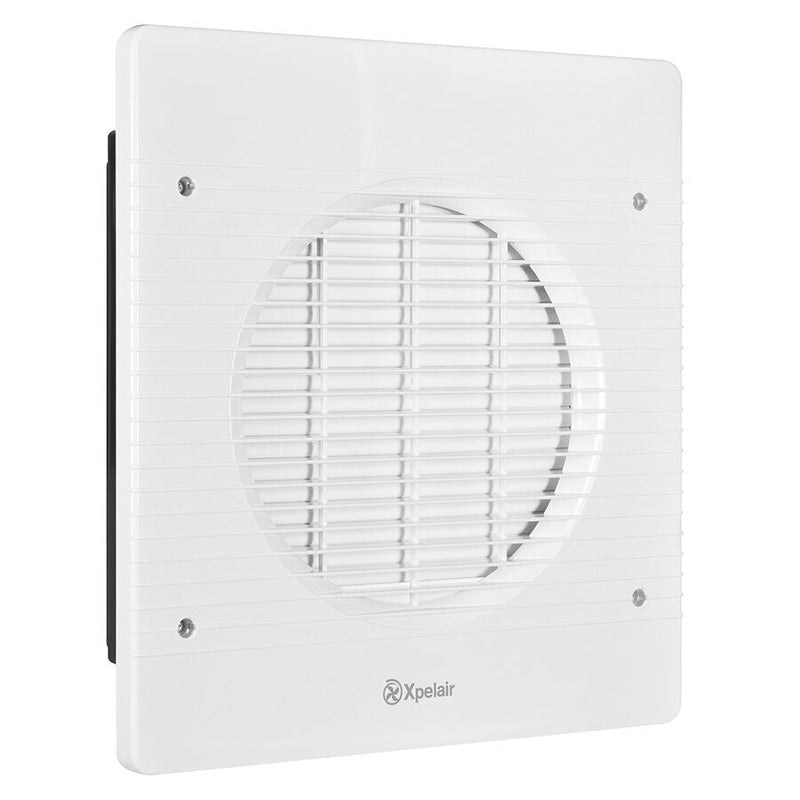

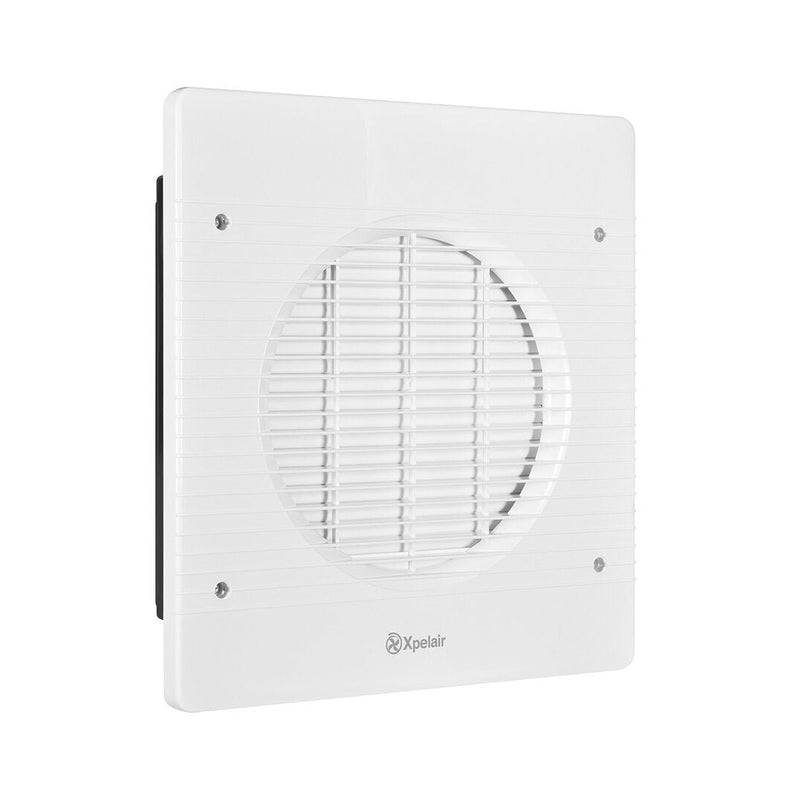

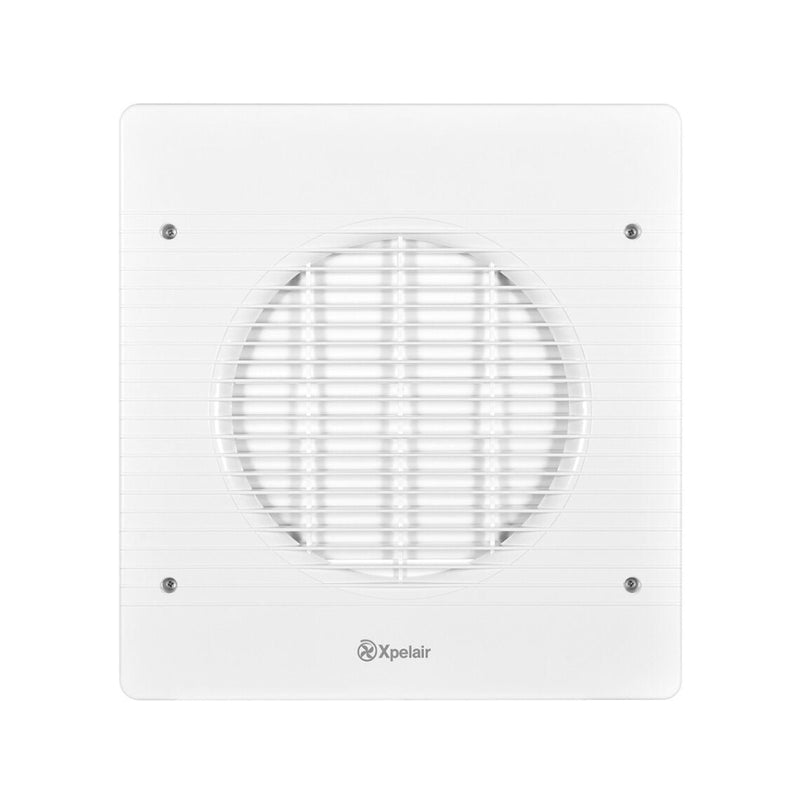

Xpelair WX9 Commercial Wall Fan - 89996AW

Xpelair WX9 Commercial Wall Fan - 89996AW

Quick Find Code: 89996AW

4 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)

Specifications

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Collection NameWX9
Extractor TypeAxial
Fan Size Diameter225 mm
Fan Size Diameter Inches9 INCH

£215.94 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£211.63Save 2%
6+£209.47Save 3%

Product Overview

Airconcentre.co.uk offers the Xpelair 89996AW with an exclusive 4 Year manufacturer’s warranty, that is an additional 2 years warranty to the standard 2 years, giving you an amazing 4 years warranty free of charge!  Available only at Airconcentre.co.uk, we give you extra peace of mind at no extra cost!
___________________________________________________________

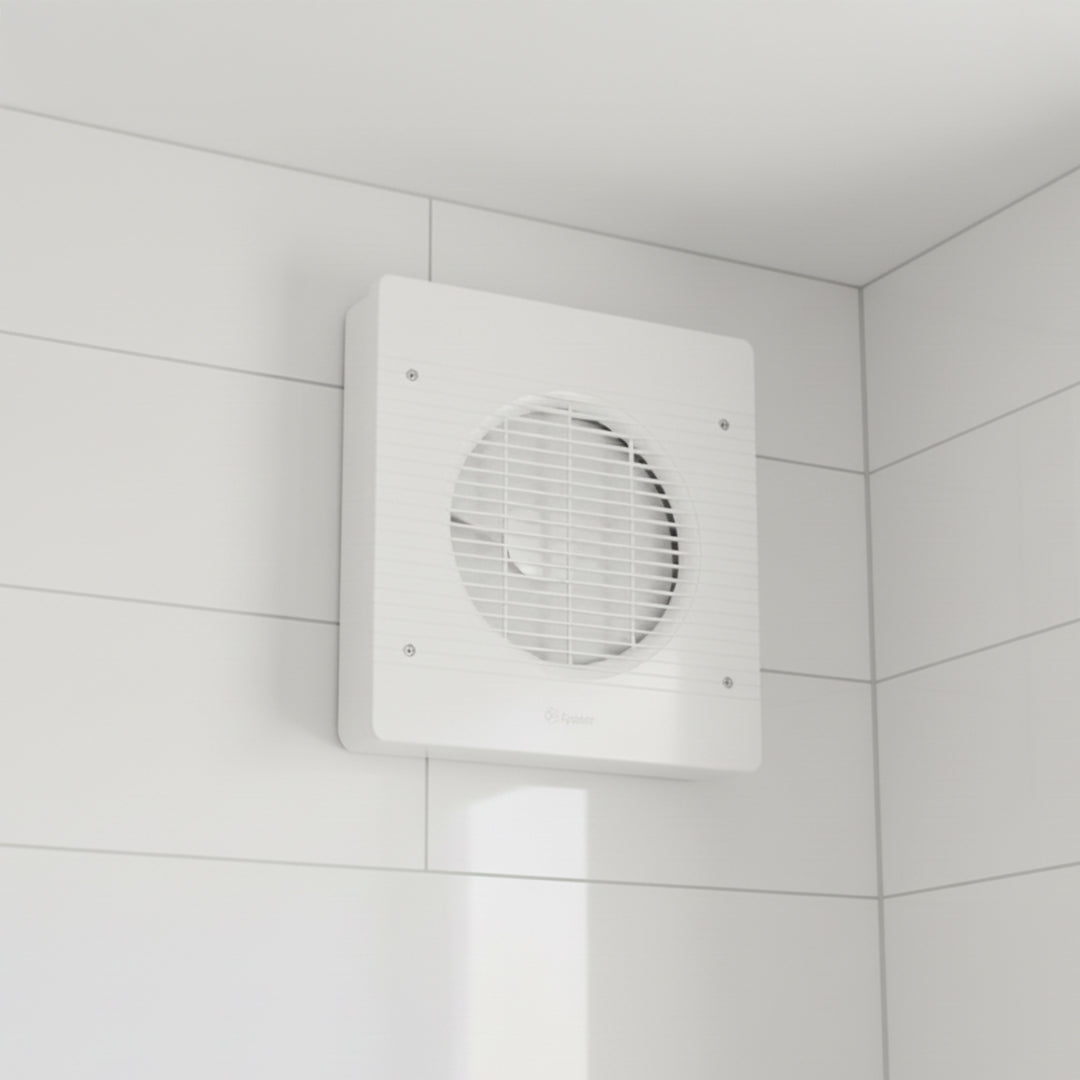

A classic commercial wall fan, the Xpelair WX9 is slender, resilient and extremely reliable. Developed for use in pubs, restaurants, factories and a vast array of other commercial premises, this extractor fan boasts pre-balanced sickle bladed rotors, ensuring a smooth operation free of 'fan judder'.

Suitable for both brick (cavity or single) and timber walls, the WX9 has an integrated finger guard in both the stylish thermoplastic fascia and the exterior grille, ensuring safety comes first when installed in public spaces.

Fully reversible, so that you can also use the unit as a powerful cooling system, the Xpelair WX9 is equipped with a positive plug and socket assembly, allowing for easy isolation in the event of service access, and cleaning is simple, with the housing, rotors and shutter cassette all removable with the minimum of fuss.

The WX9 comes supplied with an installation kit, including a wall liner, which makes fitting the unit a trouble-free process.

Criteria

  • Specification:
    • 2 Speeds
    • 663-783 (FID, m3/h) Extract Performance
    • 184-248 (FID, l/s) Extract Performance
    • 437-477 (FID, m3/h) Intake Performance
    • 121-133 (FID, l/s) Intake Performance
    • 47-50 (dB(A)@3m) Sound Pressure Level
    • 41 W (Electrical Power Rating)
    • 345 x 375 mm (Hole Diameter)
    • 508 mm (Max Wall Thickness)
    • 4.7 Kg Weight
    • 4 Year Guarantee
  • Features:
    • High performance intake/extract axial ventilation unit.
    • Choice of optional controllers.
    • Suitable for single, cavity brick and current timber frame walls.
    • Balanced external rotor motor and impeller for quiet efficiency.
    • Sealed for life maintenance free bearings, suitable for running at any angle.
    • Built-in silent action electro-thermal shutter cassette.
    • Passive tricklevent facility for background ventilation with fan Off.
    • Ultra slim high gloss ABS fascia with integral finger safety guard.
    • Shadow grey external grille for unobtrusive external appearance with built-in weather protection.
    • Tamperproof internal connection safety plug and socket.
    • Remote Switch (Not Supplied)
    • Selectable intake, extract or controller operation.
  • Dimensions
  • Manufacturer Code: 89996AW

Features

  • High performance intake/extract axial ventilation unit.
  • Choice of optional controllers.
  • Suitable for single, cavity brick and current timber frame walls.
  • Balanced external rotor motor and impeller for quiet efficiency.
  • Sealed for life maintenance free bearings, suitable for running at any angle.
  • Built-in silent action electro-thermal shutter cassette.
  • Passive tricklevent facility for background ventilation with fan Off.
  • Ultra slim high gloss ABS fascia with integral finger safety guard.
  • Shadow grey external grille for unobtrusive external appearance with built-in weather protection.
  • Tamperproof internal connection safety plug and socket.
  • Remote Switch (Not Supplied)
  • Selectable intake, extract or controller operation.

Specification

  • 2 Speeds
  • 663-783 (FID, m3/h) Extract Performance
  • 184-248 (FID, l/s) Extract Performance
  • 437-477 (FID, m3/h) Intake Performance
  • 121-133 (FID, l/s) Intake Performance
  • 47-50 (dB(A)@3m) Sound Pressure Level
  • 41 W (Electrical Power Rating)
  • 345 x 375 mm (Hole Diameter)
  • 508 mm (Max Wall Thickness)
  • 4.7 Kg Weight
  • 4 Year Guarantee

Specification

Applicable AreaCommercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Backdraft ShutterYes
Collection NameWX9
Extractor TypeAxial
Fan Size Diameter225 mm
Fan Size Diameter Inches9 INCH
Finish Or ColourWhite
Installation KitYes
IP RatingIPX4
Lip Depth120 mm
Minimum Voltage220 v
MountingWall
Number Of Speeds2
Silent RunningYes
Trickle VentilationYes
Voltage240 v
Height433 mm
Weight4.7 KG
Width409 mm
