Product Overview

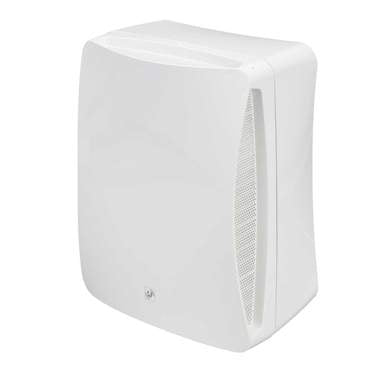

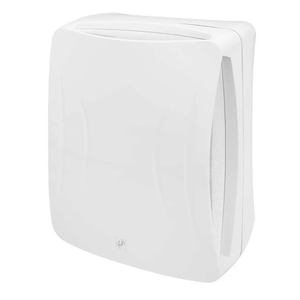

Envirovent Centrifugal Fan With Humidistat and Timer White - EBB-100N-HT The Envirovent EBB Standard Range consists of high-performance centrifugal bathroom extractor fans designed to remove excess moisture, odours, and pollutants. These fans prevent condensation-related issues and come in three models: EBB-100N, EBB-170N, and EBB-250N, with varying airflow capacity and noise levels. Key Features: Performance Powerhouse: The EBB-100N-HT is designed to handle higher system resistance pressures. It’s got a forward-curved centrifugal impeller and a single-phase motor (230V-50Hz) with Class II insulation. The fan can operate at temperatures up to 40°C. Adjustable Run-On Timer: Allows you to set the timer for 1 to 30 minutes after leaving the room. Humidity Sensor: Additionally, the humidity sensor intelligently adjusts the fan speed when the air becomes excessively steamy. Backdraught Shutter: The backdraught shutter ensures no unwanted drafts or heat leakage, it's got you covered. Building Regulations Compliance: The Envirovent EBB-100N-HT is not only compliant with local building regulations but also qualifies for the Green Homes Grant Scheme for WC/bathroom extract ventilation.

Downloads

Download EBB Product Datasheet

Specification

Applicable Area	Home
Domestic or Commercial	Commercial
Duct Size Diameter	100mm
Extraction Rate Litres Second	17L/s
Extractor Type	Axial
Fan Size Diameter	4in
Finish Or Colour	White
Fixed Or Portable	Fixed
Humidistat	Yes
IP Rating	IPX4
Luckins Code	407945111
Material	ABS
Mounting	Surface
Number Of Speeds	3
Old GTIN	5055633003101
Pull Cord	No
Timer	Yes
Depth	127mm
Height	268mm
Weight	0.57kg
Width	211mm
