KFR-23IW Split System Air Conditioning Unit (KFR23 Wall Split System) - 9000 BTU

KFR-23IW Split System Air Conditioning Unit (KFR23 Wall Split System) - 9000 BTU

Quick Find Code: KFR-23IW

3 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)


Auto RestartYes
Energy RatingA
Finish Or ColourWhite
Fixed Or PortableFixed
For Rooms Upto m225 M²

£509.95 (inc. VAT)

Show ex. VAT

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£499.76Save 2%
6+£494.66Save 3%

Product Overview

“This product is fitted with a Panasonic Compressor”

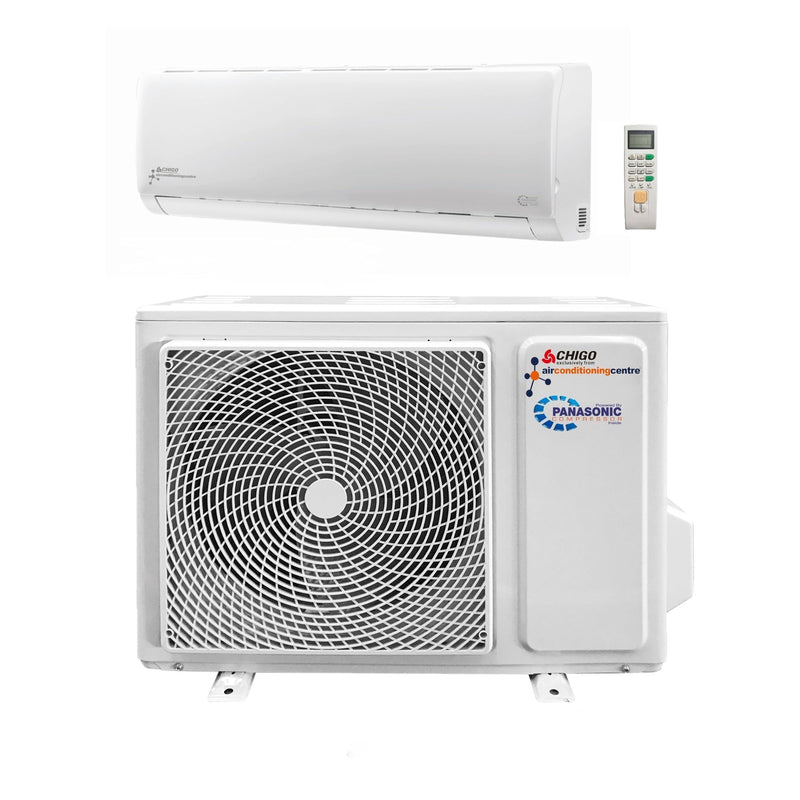

We’re proud to be selling this Easy Fit Super Inverter Air Conditioning Unit (Code: KFR-23lW/X1C) as it offers an energy-efficient, economical-to-run split air conditioning system with great features making it a best in class choice. Powered by a Panasonic Compressor inside. Also now introducing WIFI control with this unit from anywhere in the world with app controlled technology.
Ideal for both domestic and commercial premises such as hotels, clubs, hospitals, conservatories and residential, the condenser is located outside and therefore provides quiet operation that will not disturb the internal ambience. The internal Midea unit is modern, unobtrusive and stylish and operated via a remote control and LCD display. The KFR-23IW/X1c is perfect for a maximum room size of 13-25(m2) or a maximum conservatory size of 10(m2)
The unit provides double value as it also runs as a heat pump - so providing cooling in summer and heating in winter months. The KFR-23IW/X1C air con unit will give you 9000 BTU/h of cooling capacity and 9000 BTU/h of heating capacity. It is rated “A” for energy efficiency (across both heating and cooling) and uses an environmentally-friendly coolant called R410-A. (For even greater cooling capacity, please see our KFR-23W/X1C.)
Key Facts:
  • Indoor Unit Dimensions: 800mm x 190mm x 280mm

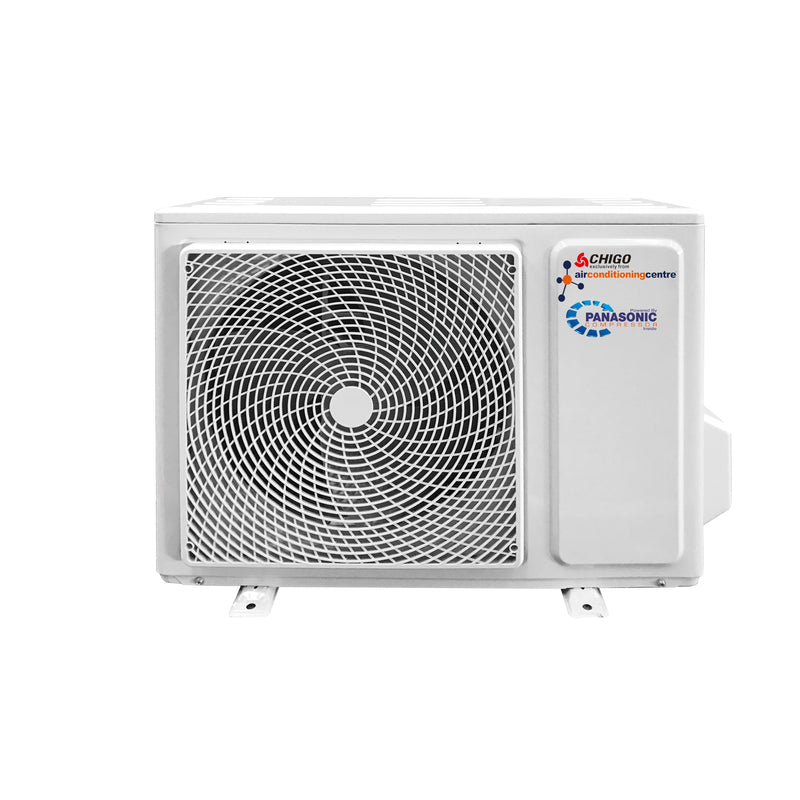

  • Outdoor Unit Dimensions: 715mm x 235mm x 540mm
  • Indoor Unit Weight: 10kg
  • Outdoor Unit Weight: 30kg
  • Energy rating: A
  • Indoor Noise Level: 30-38dB(A)
  • WiFi Control
  • Refrigerant RF410a


Please note, additional warranty information:

  • The Compressor = 5 years warranty
  • The rest of system = 3 years warranty




Warranty conditions:

  • Must be installed by a qualified F Gas Engineer, with Installation Certificate & receipt
  • Must have an annual service with a valid invoice
  • Copy of Installation Certificate and each annual service invoice must be lodged with us as soon as available to uphold warranty conditions



  • Remote control
  • WiFi Control using the downloadable app
  • Super Inverter Technology
  • Powered by Panasonic Compressor
  • Gloss white system
  • Adjustable fan speeds for rapid cooling or minimum noise
  • Heat-pump model provides heating as well as cooling
  • Oscillating air vanes for dissipation of cold air
  • A timer feature that will turn the unit on and off automatically
  • High efficiency air filters to remove odours and particles
  • Anti-mould coating for hygienic operation
  • Digital display to show operational settings and temperature
  • A “Smart Air” feature that will recall previous settings at the push of a button


  • Model No: KFR-23IW/X1C
  • Power supply: (Ph-V-Hz): 220-240V~50Hz¸ 1Ph
  • Power Rating (Ph-V-Hz): 1¸ 220-240¸ 50
  • Capacity Max BTU/h (Cooling) Kw: 9000 / 2.8
  • Capacity Max BTU/h (Heating) Kw: 9000 / 2.9
  • Power Input (W)Cooling~Heating): 910~920
  • Current Input (A) Cooling~Heating: 4.0~4.0
  • EER (BTU/hr.W) SEER: 5.5
  • COP (W/W) SCOP: 3.4
  • Dehumidification L/h: 1
  • Indoor Noise Level dB (A) (Max) Hi/Med/Lo: 30-38
  • Outdoor Noise Level dB (A) (Max): 52
  • Indoor Airflow (m3/h) (Hi/Med/Lo): 500 Max
  • Max. Current Rating (A) Fuse Rating (Type D): 3.9
  • Net Dimension (mm) Indoor (WxDxH): 800x190x280
  • Unit Dimension (mm) Outdoor (WxDxH): 715x235x540
  • Net/Gross Weight Indoor (Kg): 10
  • Net/Gross Weight Outdoor (Kg): 30
  • Max Room Size (m2): 13-25
  • Max Conservatory Size (m2): 12

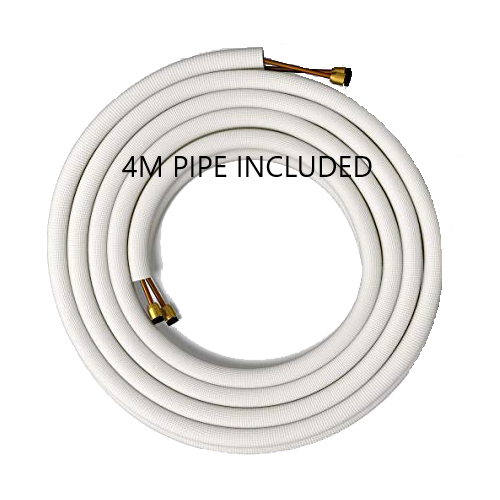

  • Connecting Pipe Length (m): 4
  • Pipe Diameter Liquid/Gas (Inch) :1/4″ & 3/8″
  • Selectable Temp Range °C: 17-30
  • Minimum Operating Temp (Cooling/Heating)°C: -5/-10
  • Automatic Restart after Power Failure: Yes
  • Automatic Refrigerant Leak Detection & Self Diagnosis Systems: Yes


Auto RestartYes
Energy RatingA
Finish Or ColourWhite
Fixed Or PortableFixed
For Rooms Upto m225 M²
Maximum Set Temperature30 CELSIUS
Minimum Set Temperature17 CELSIUS
Noise Level Maximum38 Db
Noise Level Minimum30 Db
Pipe SuppliedYes
Remote ControlYes (Supplied)
Supplied Pipe Length4 METER
Voltage240 v
Wi Fi CompatibleYes
