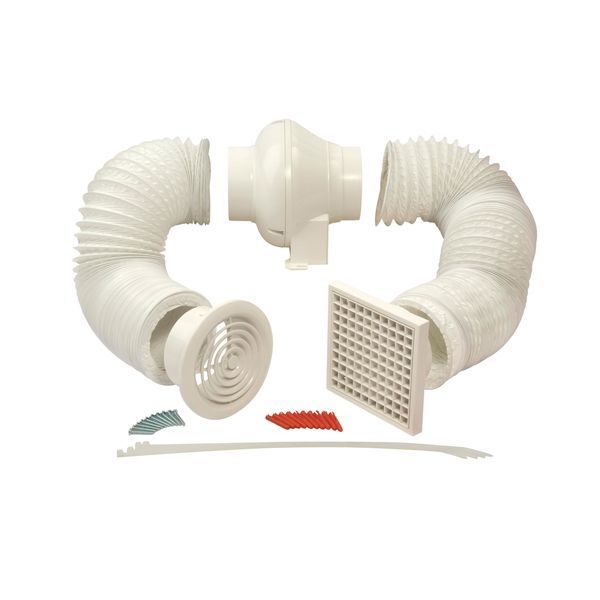

Manrose 100mm (4") In-Line Centrifugal Extractor Fan Kit With Timer - SCF200TN

Product Overview

The SCF200TN is an in-line centrifugal extractor fan kit designed for bathrooms, en-suites, utility rooms or long duct runs. It’s built with a 100 mm (4") spigot and a backward-curved impeller, which means it’s engineered to move a good volume of air even through longer lengths of ducting. With an extraction capacity of around 110 m³/h (31 L/s) it’s capable of handling ventilation needs while remaining relatively quiet.

One of its standout features is a built-in adjustable over-run timer: once the light or switched live is turned off, the fan continues to run for a preset interval (typically 1-20 minutes) to clear remaining moisture or stale air. This ensures better air quality and helps reduce mould or condensation concerns. The fan also includes a non-return back-draught flap to prevent outside air or cold draughts from entering when it’s off.

From a build perspective, the unit is constructed using high-impact ABS thermoplastic for durability and ease of cleaning, and is powered by a single phase induction motor with pre-oiled bearings for maintenance-free life. It is also compliant with UK ventilation regulations for domestic bathrooms (Ventilation F1) and is suitable for mounting in ceilings or loft/void spaces out of the way.

Downloads

Download cfd200-spec-sheet

Specification

Applicable Area	Bathroom
Domestic or Commercial	Domestic
Finish Or Colour	White
Material	Polycarbonate
MPN	SCF200TN
Old GTIN	5020953523765
Height	175 mm
Length	190 mm
Weight	2.18 kg
Width	170 mm
