Manrose MF150S 150mm In-Line Mixed Flow Extractor Fan - Return Unit

Quick Find Code: MF150S/RETB

3 Year Warranty
Free Delivery on orders over £50 (excluding Highlands and Islands)
  • Built-in electronic timer adjustable up to 20 minutes
  • Compact Overall Dimensions - Easy to Install
  • Double Insulation – No Earth Required for Installation
  • High Quality Ball Bearing & Long Life Motors
  • Warranted for A Minimum of 30,000 Hours or 3 Years

Manrose MF150S 150mm In-Line Mixed Flow Extractor Fan - Return Unit

Quick Find Code: MF150S/RETB

3 Year Warranty
Free Delivery on orders over £50 (excluding Highlands and Islands)
  • Built-in electronic timer adjustable up to 20 minutes
  • Compact Overall Dimensions - Easy to Install
  • Double Insulation – No Earth Required for Installation
  • High Quality Ball Bearing & Long Life Motors
  • Warranted for A Minimum of 30,000 Hours or 3 Years

£98.95
£60.09 (inc. VAT)

Show ex. VAT

Used Grades Explained

Grade A Unit in excellent condition, possible light use, all extras included, packaging intact but may be marked. full warranty
Grade B Unit used but fully functional, possible light cosmetic damage to unit, all accessories included, packaging may be damaged. 6 months warranty
Grade C Unit used with cosmetic damage or dents, possible missing accessories, packaging damaged or unoriginal. 6 months warranty

Product Overview

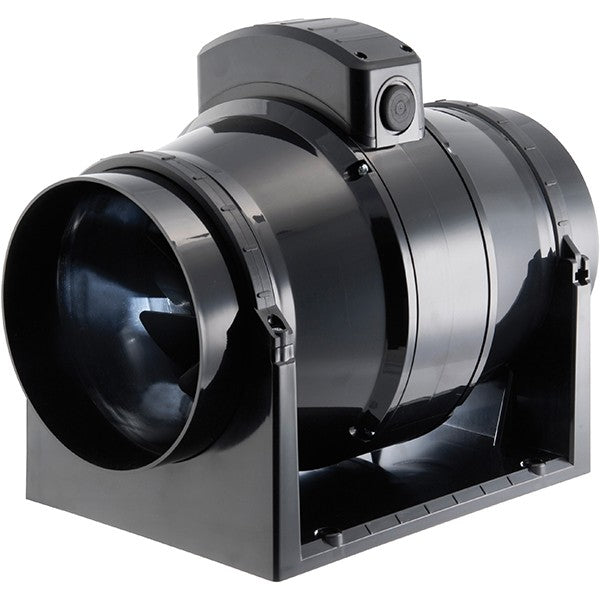

Manrose MF150S 150mm In-Line Mixed Flow Extractor Fan


This Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.


It features high-quality ball bearings, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.


Specifications

  • RPM High: 2400
  • RPM Low: 1700
  • Wattage High: 48
  • Wattage Low: 42
  • Maximum Airflow (m3/hr) High: 520
  • Maximum Airflow (m3/hr) Low: 400
  • Maximum Airflow (l/s) High: 138
  • Maximum Airflow (l/s) Low: 111
  • Maximum Pressure (Pa) High: 360
  • Maximum Pressure (Pa) Low: 320
  • dB(A) 3m* High: 35
  • dB(A) 3m* Low: 31
  • Max Operating Temp ºC: 40
  • Hole Size: 6"

Specification

Airflow520m³/h
Applicable AreaBathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Collection NameMix-Flo
Extraction Rate Litres Second111L/s
Extractor TypeInline
Fan Size Diameter6in
Finish Or ColourBlack
Installation KitYes
IP RatingIP44
Minimum Voltage220V
MountingCeiling
MPNMF150S
Number Of Speeds3
power consumption42W
TimerNo
Voltage240V
Height252mm
Length307mm
Weight0.01kg
Width192mm
