Product Overview

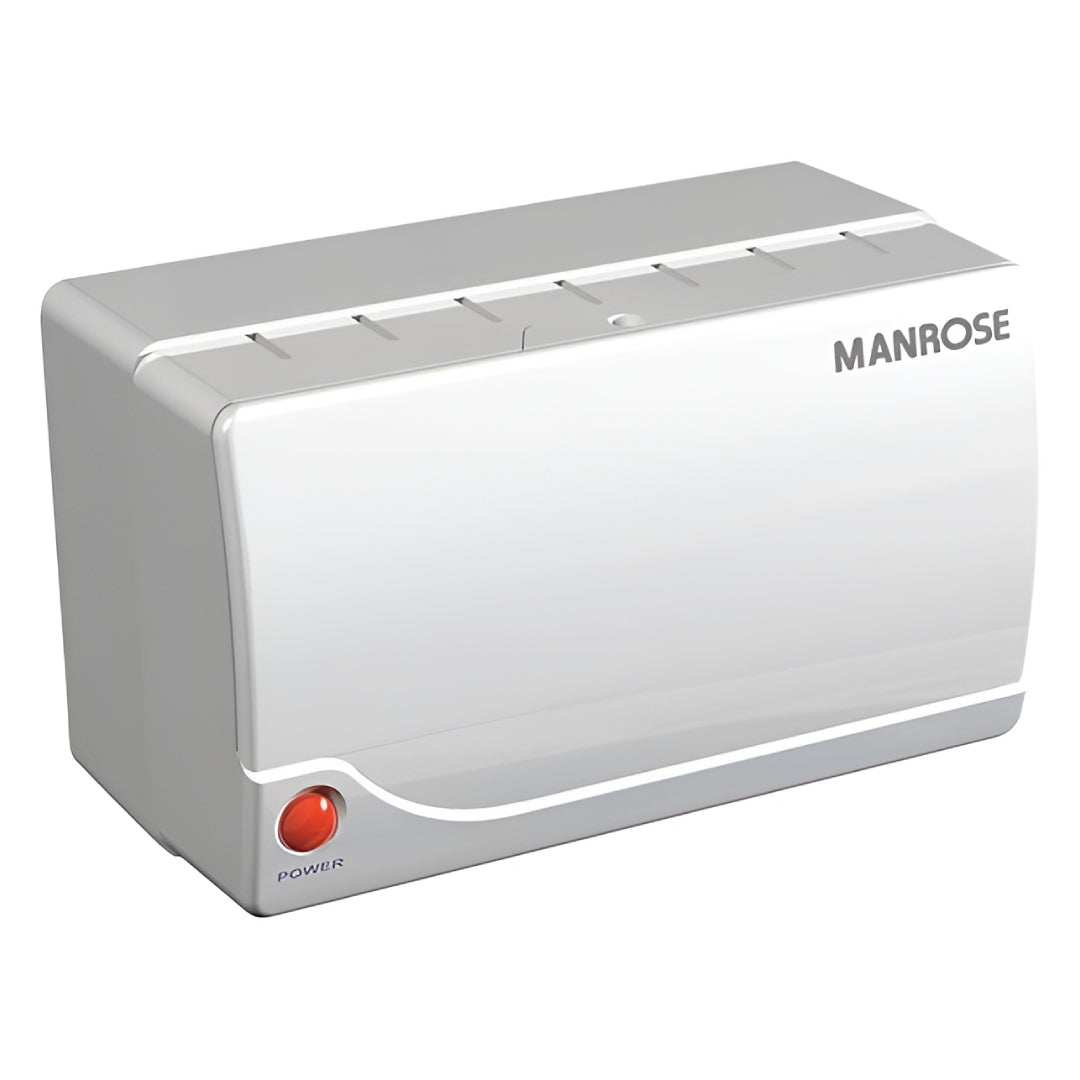

Manrose T12HP Remote Humidistat Transformer With Pullcord For XF100LV SELV Extractor Fan 12V,Designed to power 12V low voltage fans installed in the splash area of the shower or bath. This transformer can be mounted in the loft area or high-up on the ceiling next to the pullcord light switch. All models are fitted with a neon light and supplied complete with pattress. The units are manufactured using impact resistant, high gloss ABS thermoplastics for strength, durability and easy cleaning. Transformer with cover removed showing adjuster knobs.

• Input: 220-240V - 50Hz
• Output: 12V AC 50Hz 25VA
• Integral timer (adjustable 1-20 minutes)
• Integral pull cord override switch
• Humidity controlled (adjustable between 40 and 95% RH)
• Fitted on standard 25mm deep double pattress
• For use with the low voltage Manrose extractor fans
• Height: 82mm
• Length: 145mm
• Depth: 65mm

Features

• Integral pull cord override switch
• Integral timer (adjustable 1-20 minutes)
• Humidity controlled (adjustable between 40 and 95% RH)
• Fitted on standard 25mm deep double pattress
• For use with the low voltage Manrose extractor fans

Short Description

Manrose Remote Humidistat Transformer with Pullcord

Specification

• Input: 220-240V - 50Hz
• Output: 12V AC 50Hz 25VA
• Height: 82mm
• Length: 145mm
• Depth: 65mm

Specification

Finish Or Colour	White
Humidistat	Yes
IP Rating	IP24
Lip Depth	65 mm
Minimum Voltage	220 v
Mounting	Wall
Pull Cord	Yes
SELV	Yes
Timer	Yes
Voltage	240 v
Height	82 mm
Weight	0.82 KG
Width	145 mm
