Product Overview

The Manrose Showerlite is a distinctive Showerlite which is incorporated into a circular diffuser, suitable for showers and bathrooms. The Showerlite can be used with the splash area of the shower bath and is powered by a S.E.L.V remote safety isolating transformer. Designed to be ceiling mounted through 4" (100mm) diameter flexible ducting or rigid pipe. Extract rate 85m³/hr, 23 litres per second.

• Single phase consuming 17w, 220-240V - AC. 50Hz
• Installed in loft or Roof Space
• IPX4
• Adjustable Timer Up To 20min
• Chrome & White Bezels
• Suitable for larger bathrooms, utility rooms, shops, offices, restaurants
• Pre oiled bearings for long and maintenance-free life

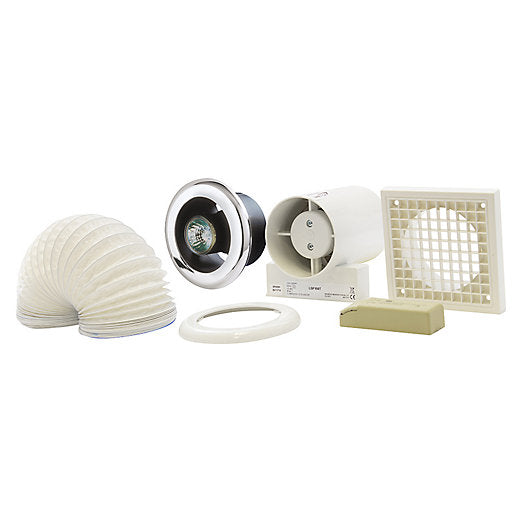

• Supplied With LV Transformer, 1 Length of PVC Flexible Ducting, Internal Grille, Grille, Screws, Plugs and Straps to Secure Duct to Grille


Features

• Installed in loft or Roof Space
• IPX4
• Adjustable Timer Up To 20min
• Chrome & White Bezels
• Suitable for larger bathrooms, utility rooms, shops, offices, restaurants
• Pre oiled bearings for long and maintenance-free life
• Supplied With LV Transformer, 1 Length of PVC Flexible Ducting, Internal Grille, Grille, Screws, Plugs and Straps to Secure Duct to Grille

Short Description

Manrose 4" Chrome Showerlite/Fan Kit

Specification

• Extraction of up to 85m³/hr, 23 litres per second
• Single phase consuming 17w, 220-240V - AC. 50Hz
• 35W Halogen bulb included

Specification

Applicable Area	Bathroom, Shower, Toilet
Extractor Type	Shower Fan Kit
Fan Size Diameter	100 mm
Finish Or Colour	White
Minimum Voltage	220 v
Mounting	Ceiling
Voltage	240 v
Height	130 mm
Width	155 mm
