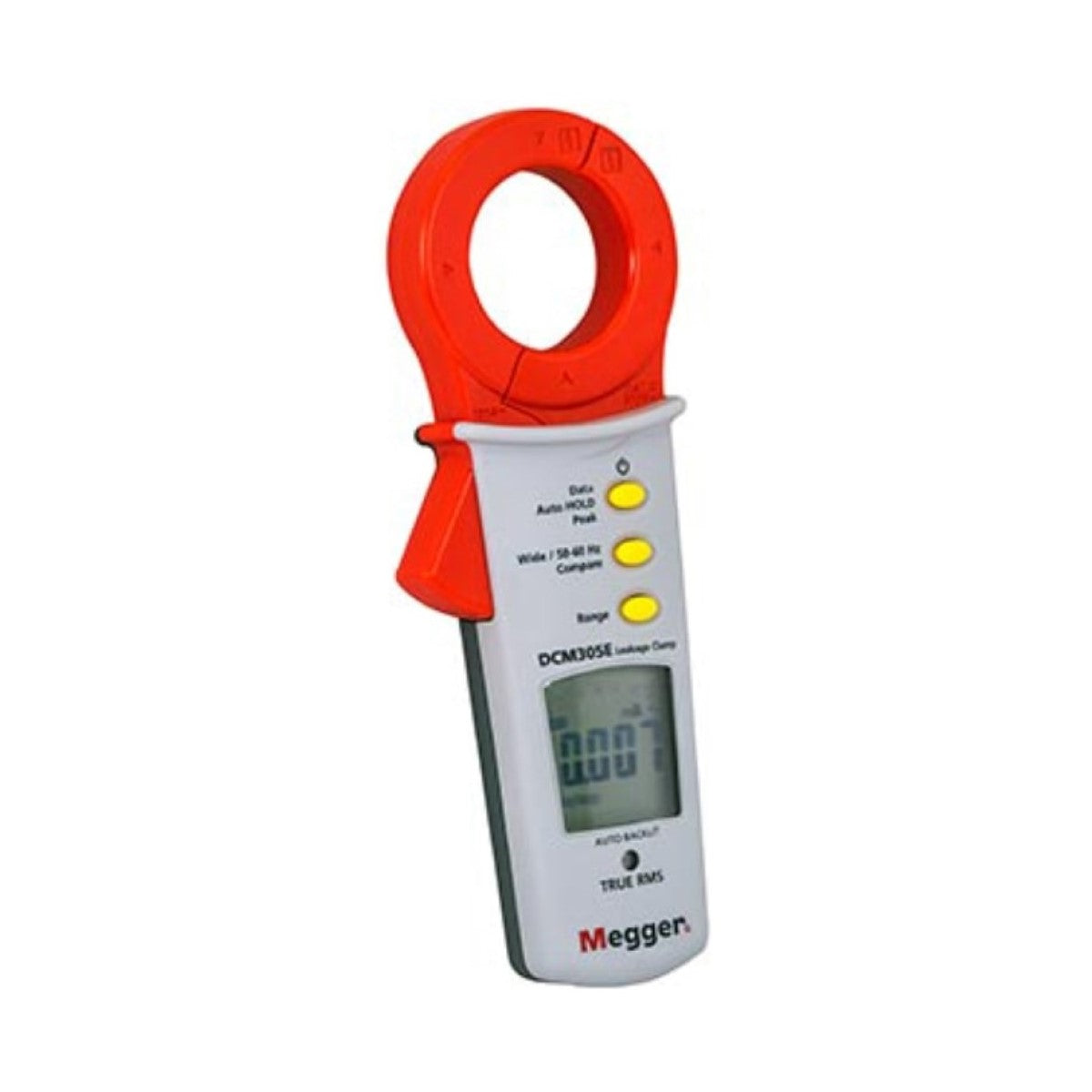

Megger DCM305E Earth Leakage Clamp Meter - 2009-574

The Megger DCM305E is designed for measuring the earth leakage current in a circuit where the RCD is tripping out. The clamp meter will quickly determine if the earth leakage current is causing the RCD to trip, or if it is sensitive or faulty. It features a 40mm jaw and can be sued to measure both insulated and non-insulated conductors. It also enables TRMS AC current measurements of up to 100A. The device can measure pure, undistorted, sinusodial and non-sinusodial AC waveforms which contain pulse trains, triangles, spikes and ragged waves.

Product Overview:

• TRMS Readings
• Manual or Auto Ranging
• Auto-Backlit 6000 Count Display
• Analogue Bar Graph Display for Trending
• Low Pass Filter (50-60Hz)
• Six Ranges: 6mA, 60mA, 600mA, 6A, 60A, 100A
• Minimum Resolution of 0.001 mA on the 6m A Range
• Pre-set Leakage Limits (0.25, 0.5, 3.5mA) Visual and Audible Indication if Limit is Exceeded
