Product Overview

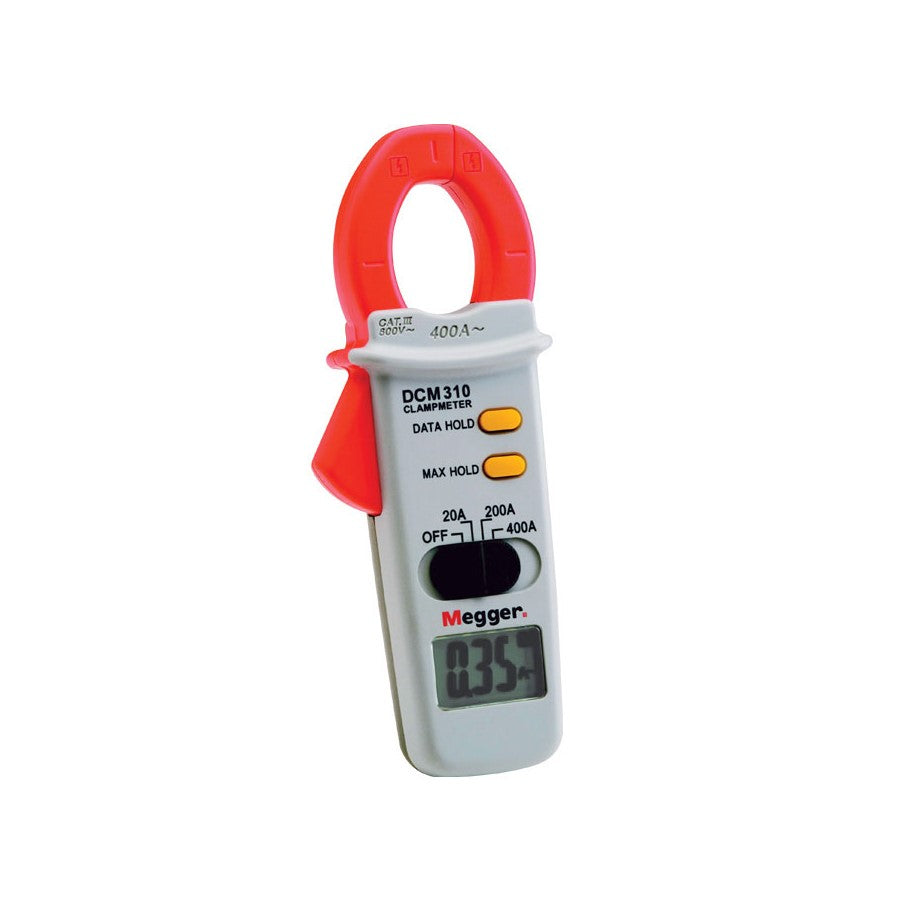

Megger DCM310 AC Digital Clamp Meter - 1000-303

The Megger DCM310 is a clamp meter than will measure AC current (50-60Hz) up to 400A, with a data-hold feature to freeze the displayed value, which is convenient in confined situations where the area may be poorly lit. It is ideal for use by electriciants for installation, maintenance or checking of electrical systems and equipment. It also has a max-hold button which is used to automatically store and display the maximum amps value flowing in the cable measured over a period of time.

The device offers a high level of protection being IEC 61010 CATIII 600 V rated. It comes with a convenient carry case for storing and transportation ease. It can withstand a drop of 1.2m onto a hard surface without sustaining damage. The clamp jaw enables cables to be measured with as large as 27mm diameter, which covers the majority of applications within the electrical system installation industry.

Product Overview:

• Data Hold Feature
• Max Hold Feature
• Compact Pocket-Sized Design
• Supplied with Carry Case
• IEC61010 CAT III 600 V Rated
• Measures to 400 amps AC with low Current Ranges for Better Resolution

Downloads

Download 1000-303-304-Datasheet
