Megger DPM1000 Power clamp meter - 1013-356

Product Overview

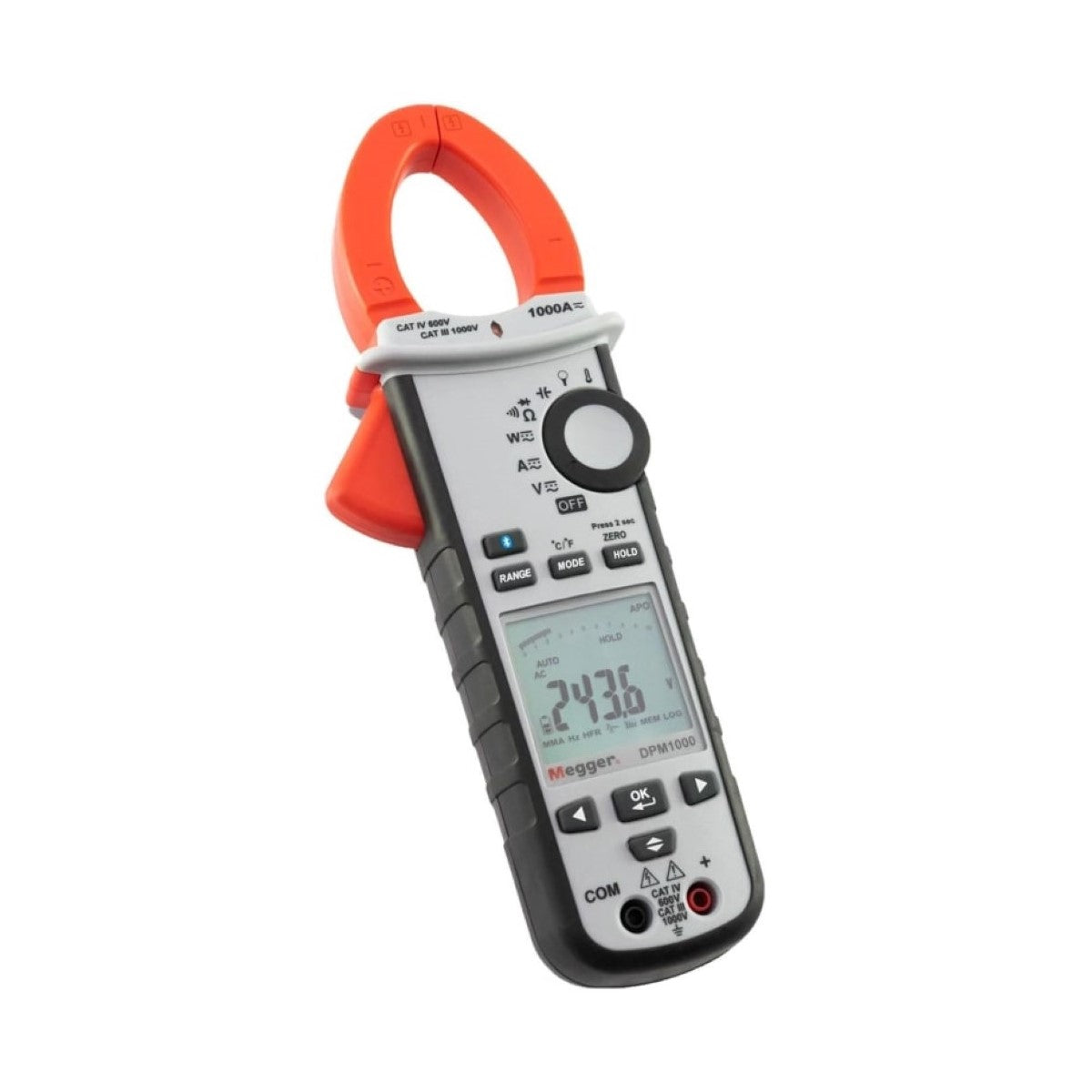

Megger DPM1000 Power Clamp Meter - 1013-356

The Megger DPM1000 combines the functionality of a power meter, harmonics meter and data logger in one easy to use device. It meets the requirements of BSEN 61010-1 CAT IV 600V for supply side applications. It has a large, backlit LCD screen that clearly displays all measurements that can be selected at the touch of a button or when rotating the selection dial. It also features auto-ranging and has three-phase rotation indication. It promotes prolonged battery life by automatically switching off after being inactive.

The device can measure DC, AC, pulsed and mixed currents up to 1000 A simply by clamping the jaws around the appropriate conductor, whilst voltages up to 1000 V AC or DC may be measured by the supplied test leads.

The instrument can make temperature measurements up to 1000 °C using the thermocouple provided, has an internal torch that can be used during the operation of the clamp, and has automatic non-contact voltage detection for identification of live circuits.

The DCM1000 is ideally suited to measuring mains power quality and applications in the development, installation, maintenance, and repair of equipment and devices used in power electronics and power engineering.

Product overview:

• True RMS
• Bright LED Torch
• CAT IV 600 V Rating
• Resistance 100kΩ
• Continuity Beeper
• Phase Rotation Indication
• AC/DC voltage to 1000V
• AC/DC current to 1000 A
• Data Hol Min/Max/Peak Hold
• Bluetooth Link to the Megger Link App

Downloads

Download 1013-356-Datasheet
