Product Overview

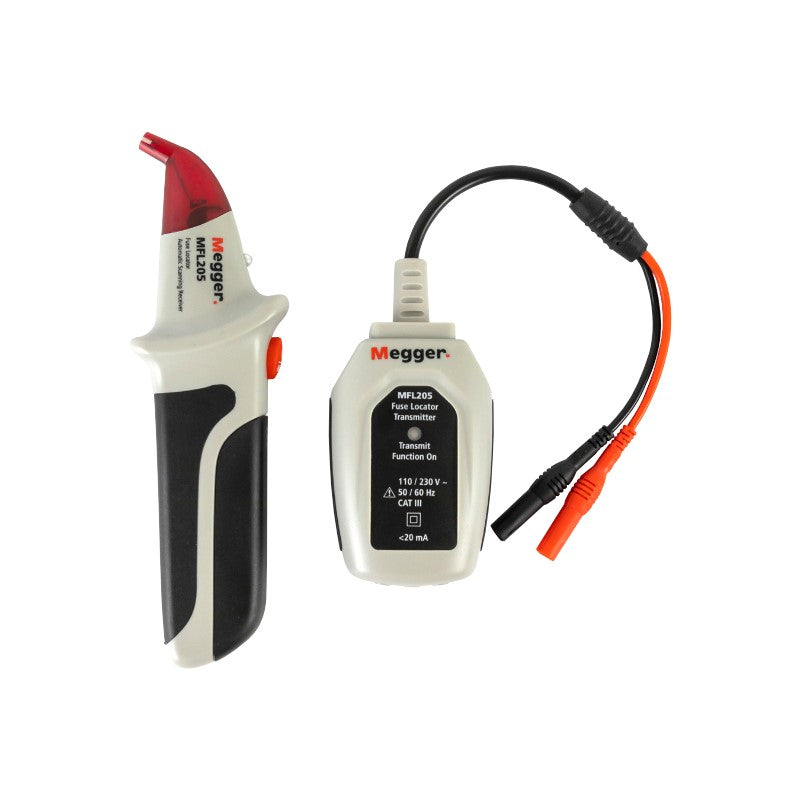

Megger MFL205 Fuse Locator - 1013-835

The Megger MFL205 is designed to help users identify an individual fuse or circuit breaker on a fuse board or within a consumer unit. It has automatic sensitivity adjustment, individual breakers or fuses are identified with both audible and visual alarms. When the device is connected to a live circuit it automatically initiates the output signal. The receiver adjusts the sensitivity automatically on the transmitted signal to allow the breaker or fuse to be easily identified. Using relevant adaptors, the unit can also be connected to mains socket outlet or light socket, that the fuse or breaker to be identified is protecting. It has a battery life of up to 40 hours and will automatically switch off after 3 inactive minutes. The fuse locator has a safety rating of CATIII 300V and an IP50 protection rating.

Product Overview:

• Simple to Operate
• 110/230V Operation
• Carry Case Included
• Audible and Visual Alarm
• Auto-sensitivity Adjustment
• Identify Circuit Breakers of Fuses
• Industry Standard 4mm Connectors

Downloads

Download 1013-835-Datasheet
