Megger PVM210 Solar Irradiance Meter - 1002-548

Product Overview

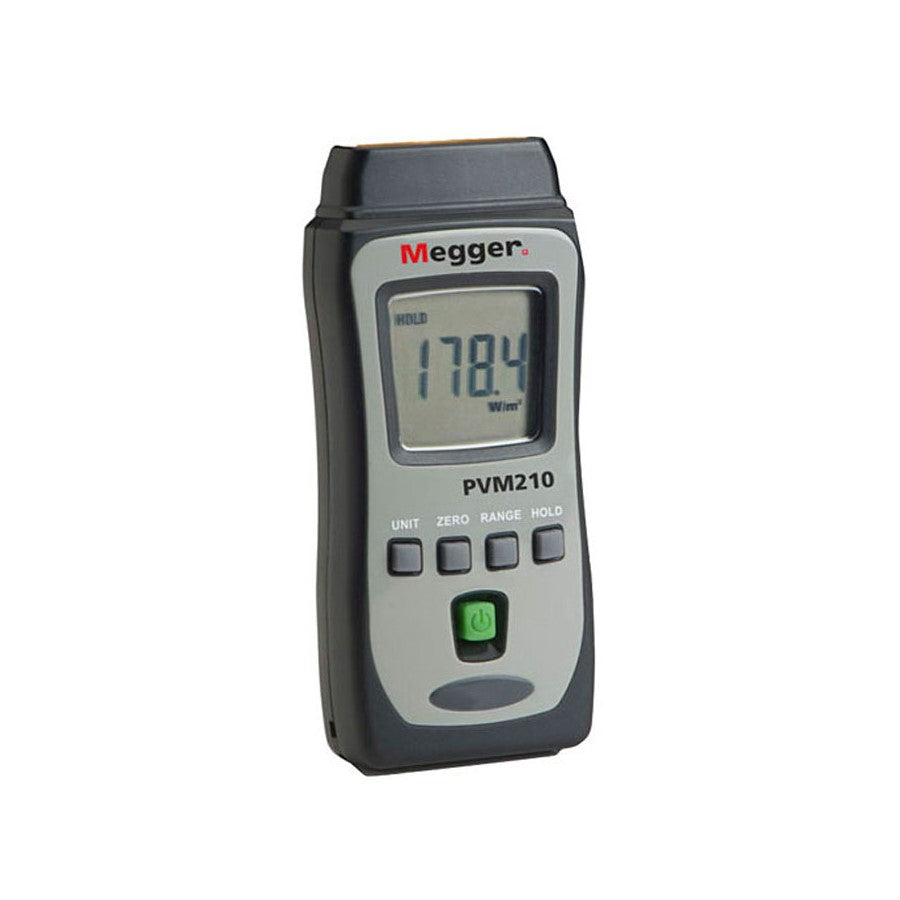

Megger PVM210 Solar Irradiance Meter - 1002-548

The Megger PVM210 is the perfect tool for measurements in tricky locations such as up a ladder or on a roof. It is pocket size so easy to hold, transport and store when not in use. With it's easy to read display and measurement hold feature the meter gives fast, accurate readings of solar power for initially choosing the optimum position for the photovoltaic panel. It can also provide the vital measurement for the calculation of short circuit current in conjunction with a suitable ammeter to verify the stated short circuit current provided by the manufacturer of the panel. In addition, to W/m² measurements, a selectable BTU (British Thermal Unit) measurement range is also featured.

It promotes prolonged battery life by automatically switching off when inactive. On its rear there is a universal camera thread that allows mounting for precise readings, if required. A protective pouch is included with each instrument.

Product overview:

• Convenient Pocket Size Model
• Promotes Single-handed Use
• 3¾ digit LCD display with 1999 W/m² range
• Standard camera mount fixing for accurate placement
• Measurement of solar power for panel short circuit calculation
• Optimal incident angle and positioning of solar panels

Downloads

Download 1002-548-Datasheet

Specification

Estimated Battery Life	50 h
Finish Or Colour	Black/Grey
Fixed Or Portable	Portable
Operating Temperature Maximum	40 °C
Operating Temperature Minimum	5 °C
Depth	27 mm
Height	134 mm
Width	48 mm
