Megger TC3231 Thermal Imaging Camera - 1012-514

Product Overview

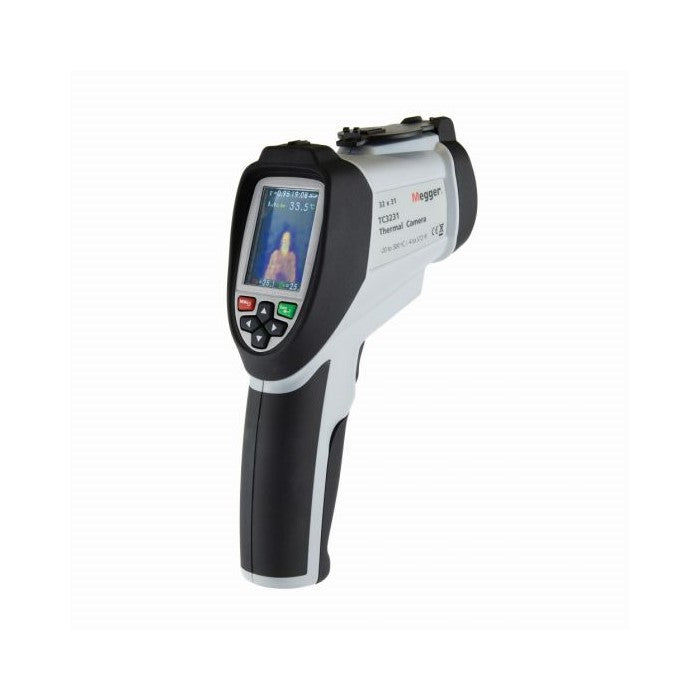

Megger TC3231 Thermal Imaging Camera - 1012-514

The Megger TC3231 is a thermal camera that offers a professional infrared 32 x 31 pixel image thermometer with a 2.2 inch colour TFT LCD display. The camera provides quick and accurate readings covering a wide range of surface temperature measurements. It is a combination of a infrared thermometer and a visual thermal imager, providing you with a troubleshooting camera with an infrared heat map.

The device features a range of thermal image colour palette options, along with high/low pre-set temperature alarms. The background colour of the display is also selectable for the users convenience. This tool makes identifying the problem much more efficient. It gives a centre spot measurement and the camera also offers simultaneous hot and cold spot tracking, with the results of these values and locations updated continuously on the display.

It can store up to 6000 images with the micro SD card provided, which can then be downloaded to a PC via the USB drive. An SD card adapter can also be used to transfer the files directly to the PC.

Product Overview:

• Selectable Colour Palette
• Adjustable Emissivity
• High and Low Alarm (Enable or Disable)
• Micro SD Memory for Storing up to 6000 Images
• 2.2 inch (55.88 mm) 320 x 240 TFT LCD display
• 32 x 31 Pixel Resolution IR Temperature Measurement
• Measurement Range -20 ° to 300 °C / -4 °F to 572 °F
• Image Blending with Selectable Distance of 0.5m, 1m, 2m, or 3m

Downloads

Download 1012-514-Datasheet
