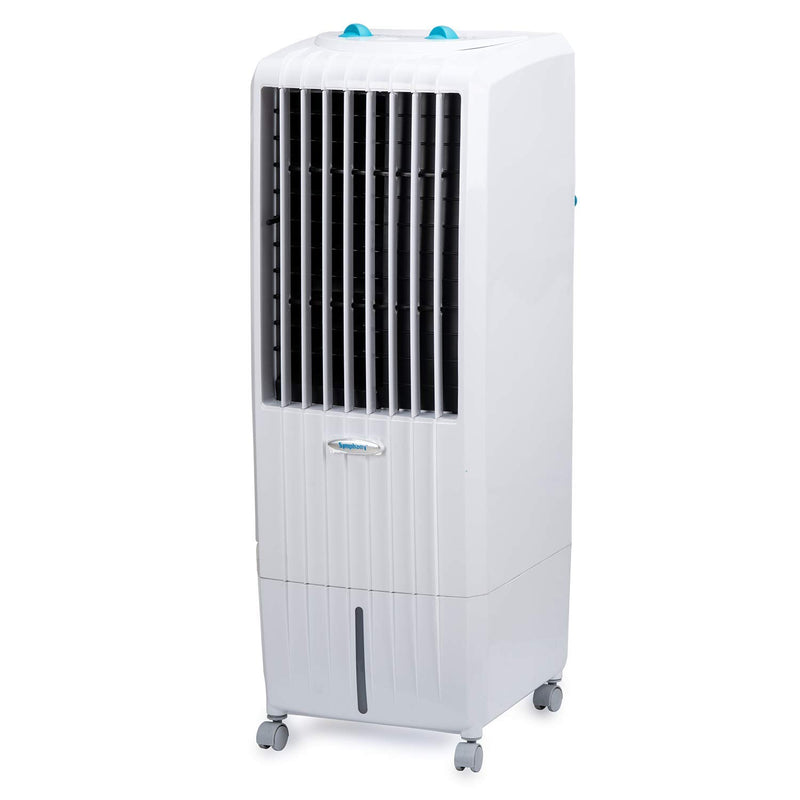

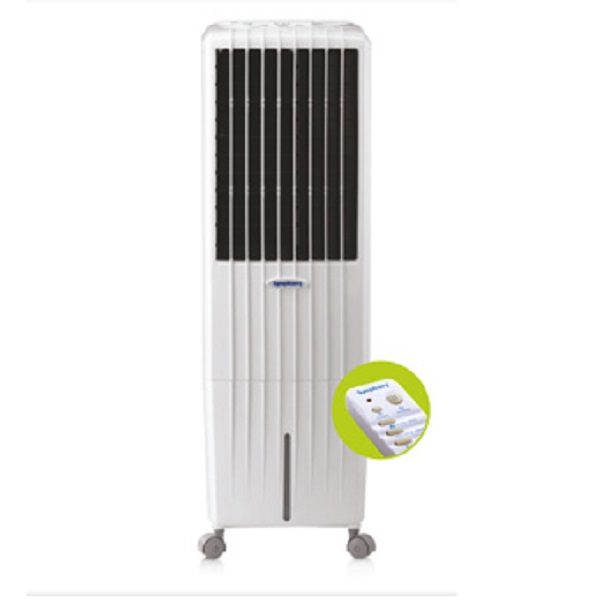

Product Overview

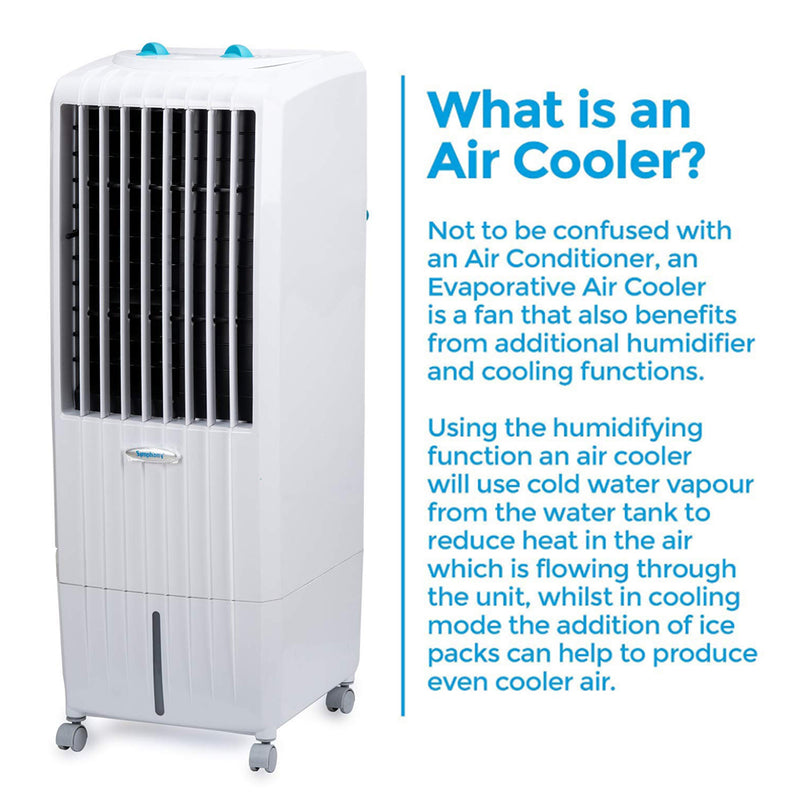

The Symphony Diet 22i evaporative air cooler is a sleek and stylish unit which thrives on very little energy and provides an air throw of 12 squared metres. With a 12 litre tank capacity, these chic models need very little space and its intelligent functions make it the most efficient in its category.

Please note that these units will require an air flow in the room of use.

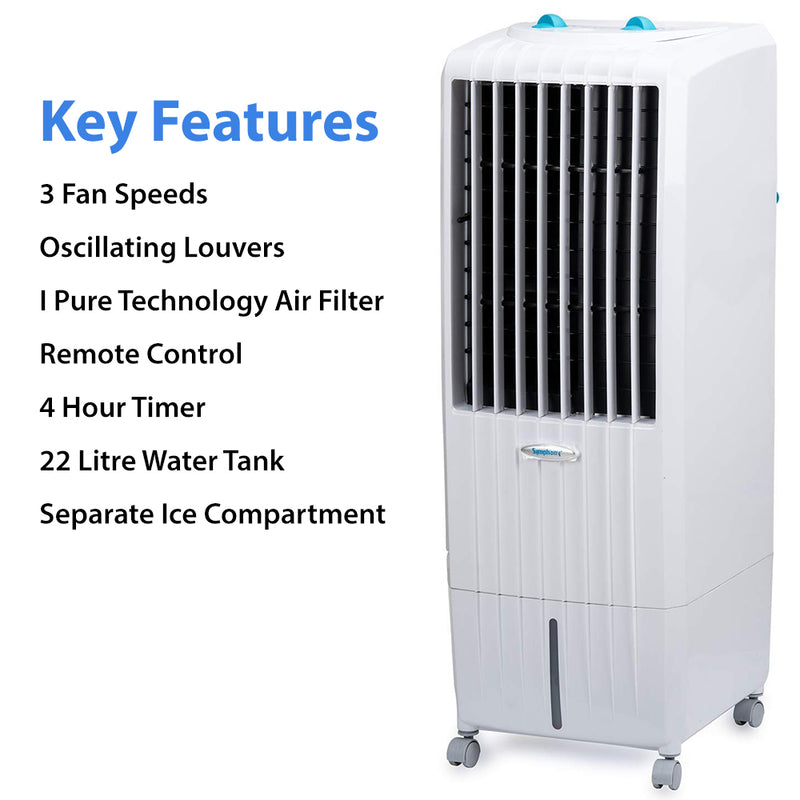

Features

• Dura-pump technology
• Empty water tank alarm
• System restore function
• High efficiency honeycomb pad

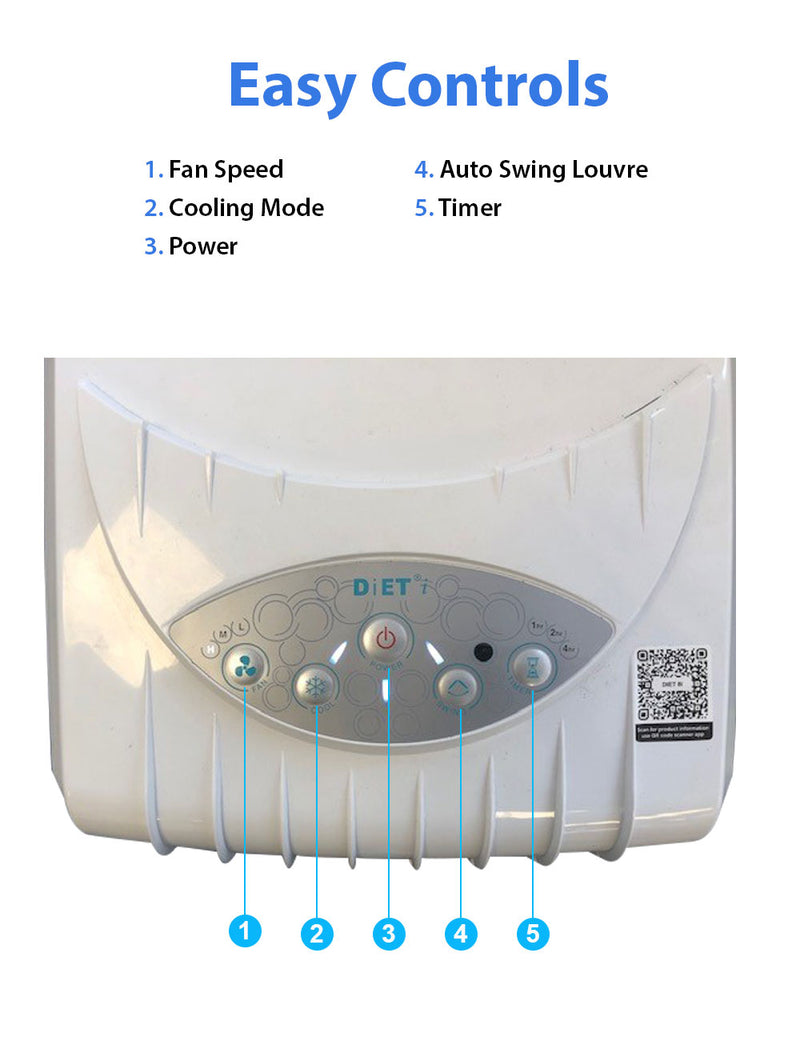

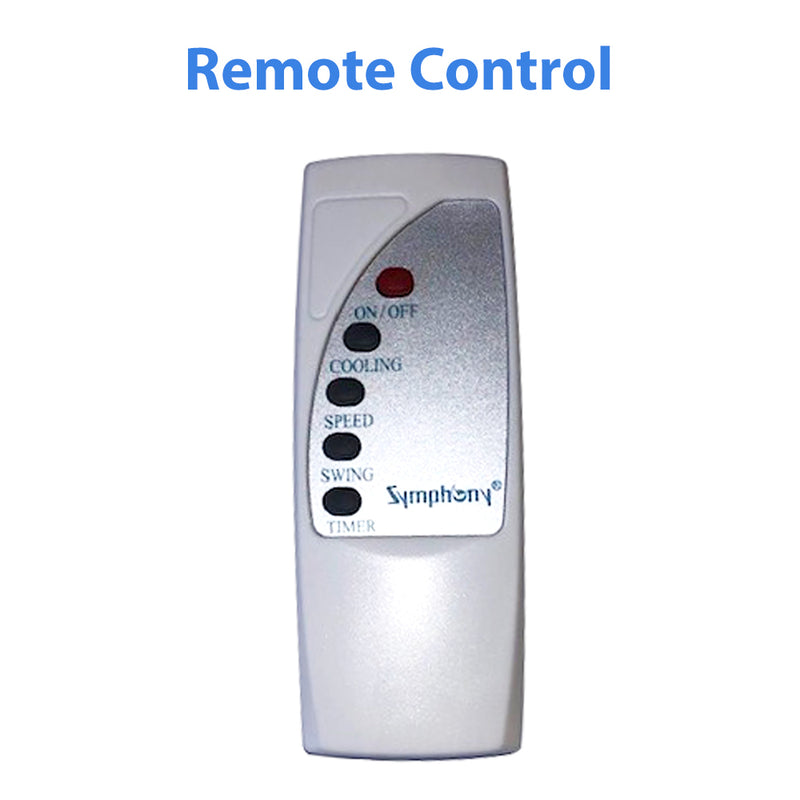

• Full function remote with 7 hour timer
• Powerful air throw with auto swing
• Ice chamber
• Large 18 ltr. tank capacity
• Inbuilt remote dock
• Cools up to 200 sq. ft.
• Quiet cooling
• Consumes less power
• Consumes less water
• High efficiency pad that cools 30% more than conventional pads
• Automatic louvers for better air distribution
• 12 month Warranty, can be extended to 18 months if registered with the manufacture within the first month.

Specification



• For rooms up to (mt.3 / ft.3 *)  42 / 1500
• Engg. Plastic (blower / fan)  Blower
• Blower/Fan diameter (mm / inch)  180 / 7
• Speed Control  3
• Wattage: 230V / 50HZ: 220V / 60HZ: 110V / 60HZ
• Tank capacity (up to brim- ltr.)  18
• Remote control  Yes
• Auto louver movement  Yes
• Ice chamber  Yes
• Mosquito net / Dust filter  Yes
• Cool flow dispenser  No
• Empty tank alarm  Yes
• Cooling media  Honeycomb
• Product dimensions (mm): Length: 300 x Breadth: 330 x Height: 943
• Carton dimensions (mm): Length: 340 x Breadth: 350 x Height: 932
• Product weight (kgs)  8
• Product weight incl. (pack) (kgs)  9.7
• No of units per 40ft container (hc)  630

Downloads

Download Symphony Owners Manual

Download Diet 22i PDF

Specification

Casters	Yes
Finish Or Colour	Grey
For Rooms Upto m2	12 M²
Louvre	Yes
Number Of Speeds	3
power consumption	0.17 kW
Remote Control	Yes (Supplied)
Tank Size	22 l
Timer	Yes
Voltage	240 v
Height	943 mm
Length	300 mm
Weight	8 KG
Width	330 mm
