Product Overview

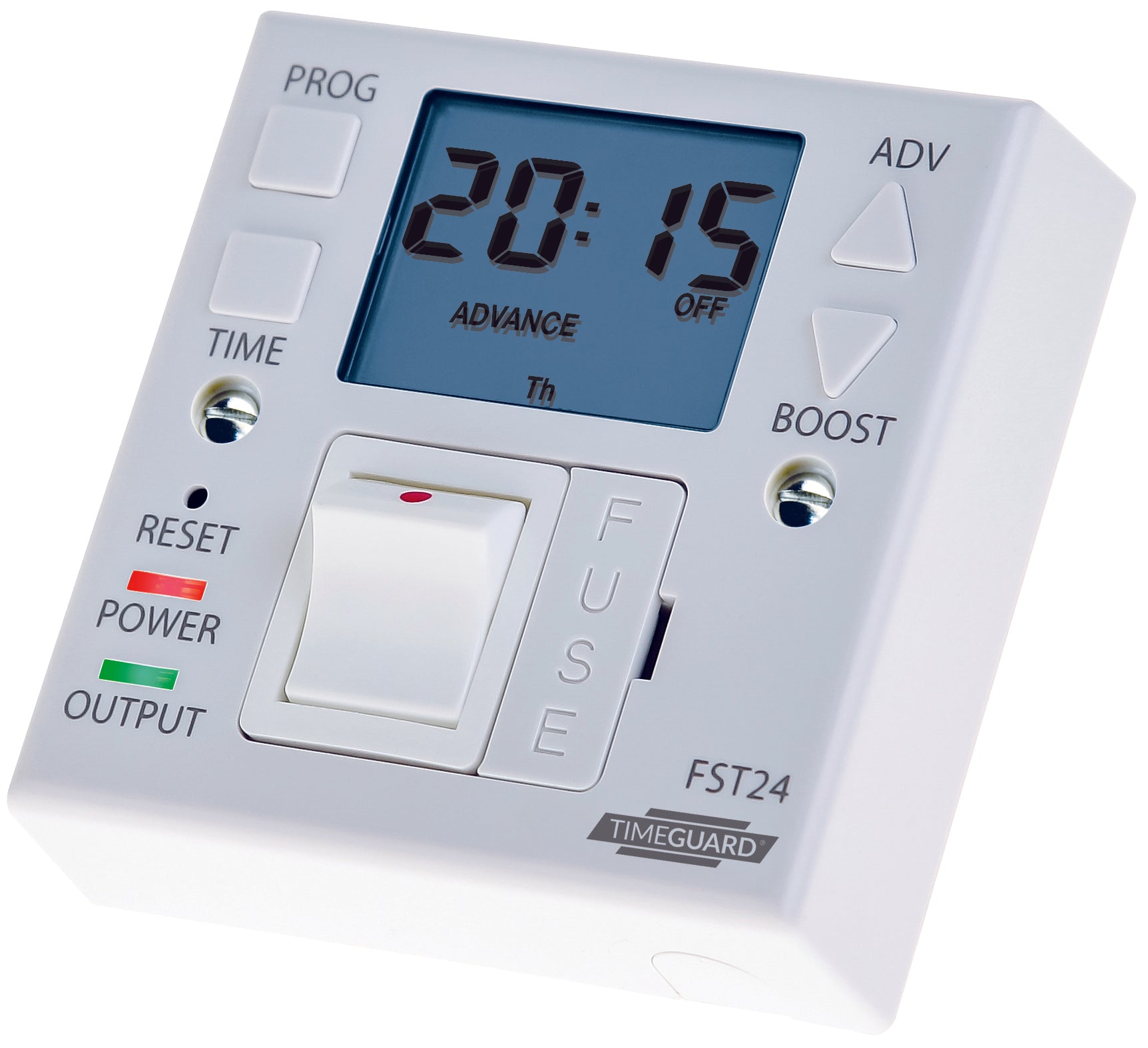

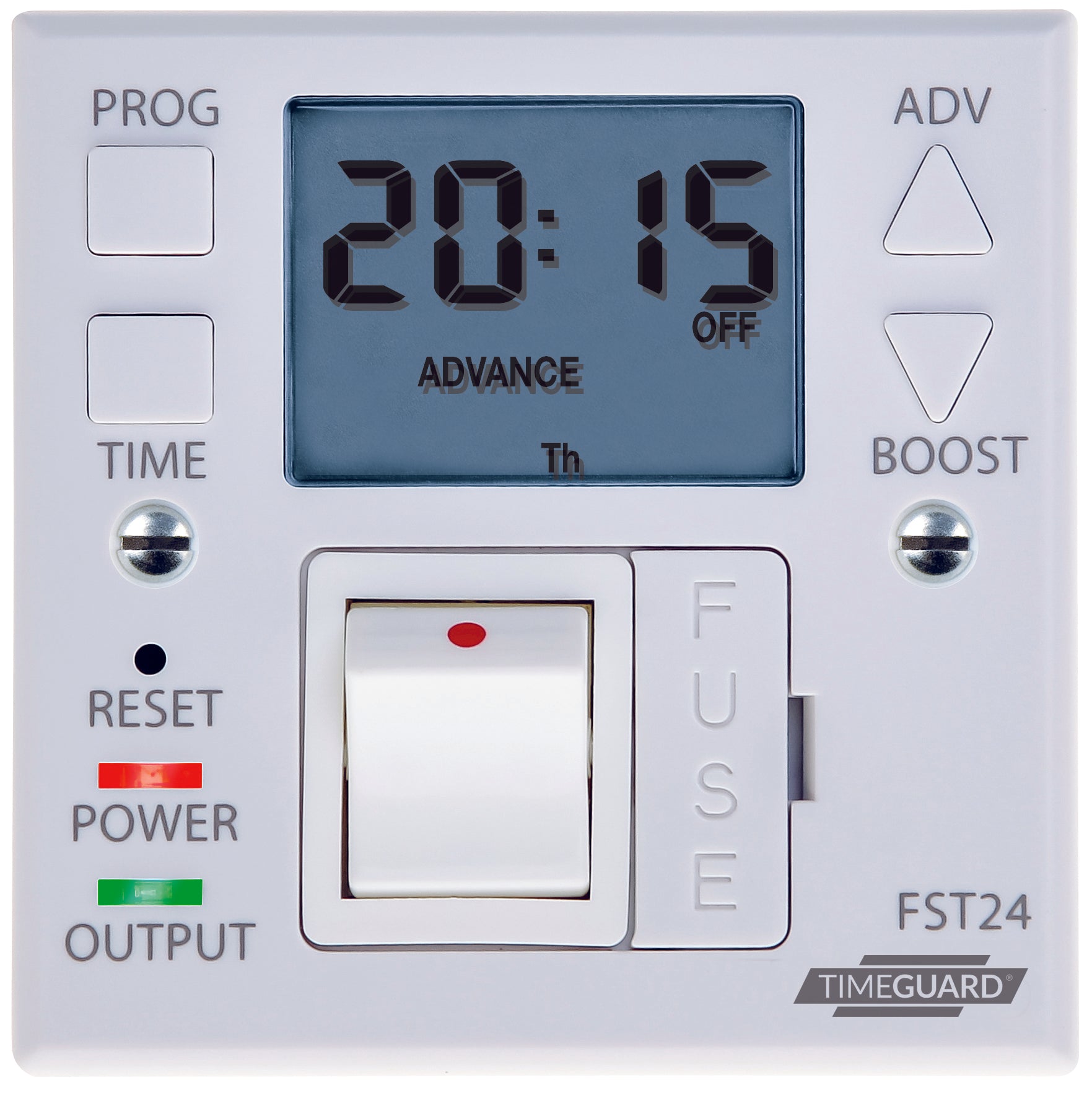

Timeguard’s new look Fused Spur Timeswitches with easy viewing display, optional 1 or 2 hour boost facility and automatic Summer/Winter time changeover. Clearly delivering the tried and trusted features you expect from the SupplyMaster range.

Features:

• Up to 4 ON and OFF programmes available daily
• Suitable for use with up to 3kW immersion heaters
• Switches the following lighting loads: 750W incandescent or halogen lighting, 500W fluorescent lighting, 100W compact fluorescent lighting (cfl’s) and 200W LED lighting. Not suitable for discharge lighting
• Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
• Permanent OFF and timed outputs available
• Easy view 24 hour digital clock/timer display
• Optional 1 or 2 hour boost facility
• Automatic summer/winter time changeover
• Self-cancelling override
• Shortest switching time 1 minute
• Programme advance and review options
• BS1362 fuse replaceable from front
• Double pole switch for ease of control
• Integral memory back up battery retains programmes in event of power failure
• Ideal for replacing single gang connection unit or fixed appliance outlets
• Fits a single gang wall box - minimum 25mm deep

Specifications:

• Timer Mode: 24 Hour
• Setting Type: Digital
• Switch Rating 230V AC: 13A Resistive (3kW)
• Operating Temperature: 0 to 40ºC
• Battery Back Up: 4 Weeks Rechargeable
• EC Directives: Conforms to Latest Directives
• Dimensions: Width: 85mm x Height: 85mm x Depth: 38mm

Criteria

• Warranty: 5 Years
• Voltage: 230V AC
• Width: 85
• Height: 85
• Manufacturer Code: FST24
• Barcode: 5012483012604

Downloads

Download Timeguard FST24 Installation

Download Timeguard FST24 Datasheet

Specification

24 Hour Digital Clock	Yes
Applicable Area	Home
Battery Backup	Yes
Battery Rechargeable	Yes
Domestic or Commercial	Domestic
Estimated Battery Life	720h
Gang	1
MPN	FST24
Old GTIN	5012483012604
Operating Temperature Maximum	40°C
Operating Temperature Minimum	-20°C
Shortest Switching Time	1min
Timer Mode	24 Hour
Type Of Switch Socket	Heater Boost Switch
Voltage	230V
Depth	38mm
Height	85mm
Width	85mm
