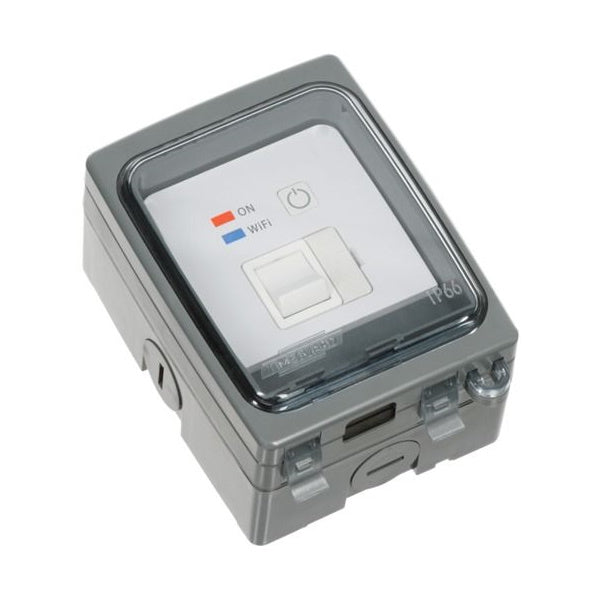

Timeguard Wi-Fi Controlled IP66 Fused Spur - FSTWIFITGV

Product Overview

WiFi enabled control for all manner of electrical applications connected to Time guard's FST WiFi 13A Fused Spur Time switch.

Ideal for switching lighting and electrical heaters with a Weather safe IP65 version FSTWIFITGV for outdoor uses. Programme settings are all activated via your mobile device, giving you access to control your installation at any time, no matter where you are. Total 13A 3kW control with confirmation of settings and switching status of the connected appliance via the on-screen app.

Product Information

• Supports additional programme sets, for half terms, holidays and seasonal programmes.
• 6 ON/OFF periods, with daily repeats.
• Positive ON/OFF status, with the colour coded display.
• Graphic representation and summary of output.
• Automatic summer/winter changeover.
• IP66 Weatherproof
• Operating voltage 230V 50Hz.
• 13A rated suitable for 3kW: Immersion heaters, 5A inductive load, 1000W tungsten, 500W LED, 100W CFL, and 500W Fluorescent.
• Manual override.
• Replaceable 13 Amp BS1362 fuse.
• Item pre-fitted into IP66 enclosure.
• A double pole isolating switch.
• Operating temperature 0ºC – 40°C

Criteria

Specification=

Operating voltage  - 230V 50Hz.

Manual override.

Fuse - replaceable 13 Amp BS1362 fuse.

Item pre-fitted into IP66 enclosure.

Double pole isolating switch.

Operating temperature 0 – 40°C.

Timer Mode - Wifi controlled fused spur

App: Available for Android and IOS only, works with WIfi and 4G.

Switch rating 230V AC - 13A Resistive (3kW): Immersion heaters, 5A inductive load, 1000W tungsten, 500W LED,
100W CFL and 500W Fluorescent

Domensions (WxHxDmm) 117 x 142.5 x 75.58 mm



,Features=

• Available for Android and IOS only.
• Works with WiFi and 4G.
• Can reduce running costs if unwanted programmes are cancelled.
• Supports multiple devices.
• Supports multiple users.
• Auto mode, with permanent ON, permanent OFF and holiday modes.
• Optional 1 and 2 hour boost.
• Advance function.
• Supports additional programme sets, for half terms, holidays and seasonal programmes.
• 6 ON/OFF periods, with daily repeats.
• Positive ON/OFF status, with colour coded display.
• Graphic representation and summary of output.
• Automatic summer/winter changeover.
• IP66 Weatherproof

,Guarantee=3 Years,Specification=

Operating voltage  - 230V 50Hz.

Manual override.

Fuse - replaceable 13 Amp BS1362 fuse.

Item pre-fitted into IP66 enclosure.

Double pole isolating switch.

Operating temperature 0 – 40°C.

Timer Mode - Wifi controlled fused spur

App: Available for Android and IOS only, works with WIfi and 4G.

Switch rating 230V AC - 13A Resistive (3kW): Immersion heaters, 5A inductive load, 1000W tungsten, 500W LED,
100W CFL and 500W Fluorescent

Domensions (WxHxDmm) 117 x 142.5 x 75.58 mm



,Features=

• Available for Android and IOS only.
• Works with WiFi and 4G.
• Can reduce running costs if unwanted programmes are cancelled.
• Supports multiple devices.
• Supports multiple users.
• Auto mode, with permanent ON, permanent OFF and holiday modes.
• Optional 1 and 2 hour boost.
• Advance function.
• Supports additional programme sets, for half terms, holidays and seasonal programmes.
• 6 ON/OFF periods, with daily repeats.
• Positive ON/OFF status, with colour coded display.
• Graphic representation and summary of output.
• Automatic summer/winter changeover.
• IP66 Weatherproof

,Guarantee=3 Years

Features

• Available for Android and IOS only.
• Works with WiFi and 4G.
• Can reduce running costs if unwanted programmes are cancelled.
• Supports multiple devices.
• Supports multiple users.
• Auto mode, with permanent ON, permanent OFF and holiday modes.
• Optional 1 and 2 hour boost.
• Advance function.
• Supports additional programme sets, for half terms, holidays and seasonal programmes.
• 6 ON/OFF periods, with daily repeats.
• Positive ON/OFF status, with colour coded display.
• Graphic representation and summary of output.
• Automatic summer/winter changeover.
• IP66 Weatherproof

Short Description

Timeguard Wi-Fi Controlled IP66 Fused Spur Connection Unit FSTWIFITGV

Specification

Operating voltage  - 230V 50Hz.

Manual override.

Fuse - replaceable 13 Amp BS1362 fuse.

Item pre-fitted into IP66 enclosure.

Double pole isolating switch.

Operating temperature 0 – 40°C.

Timer Mode - Wifi controlled fused spur

App: Available for Android and IOS only, works with WIfi and 4G.

Switch rating 230V AC - 13A Resistive (3kW): Immersion heaters, 5A inductive load, 1000W tungsten, 500W LED,
100W CFL and 500W Fluorescent

Domensions (WxHxDmm) 117 x 142.5 x 75.58 mm



Downloads

Download FSTWIFITGV Product Brochure

Specification

Gang	1 Gang
Timer Mode	App Controlled
Depth	44 mm
Height	85 mm
Width	85 mm
