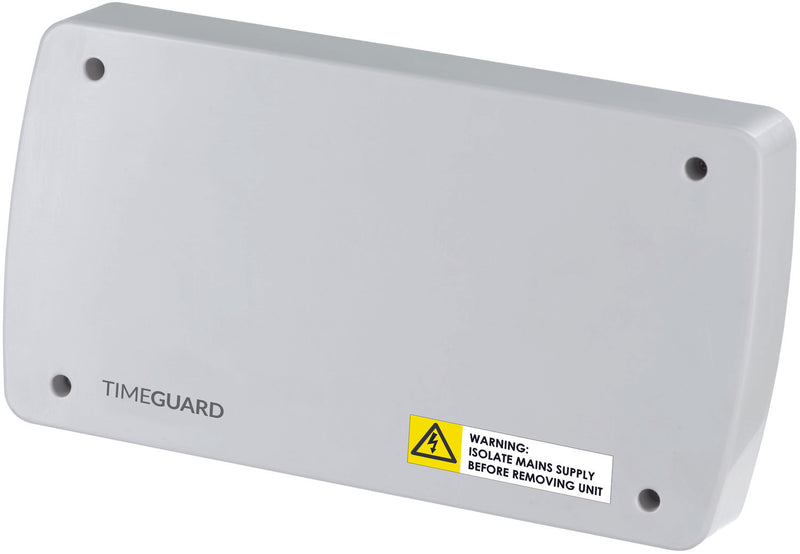

Timeguard Wiring Centre Box - TRT049N

Product Overview

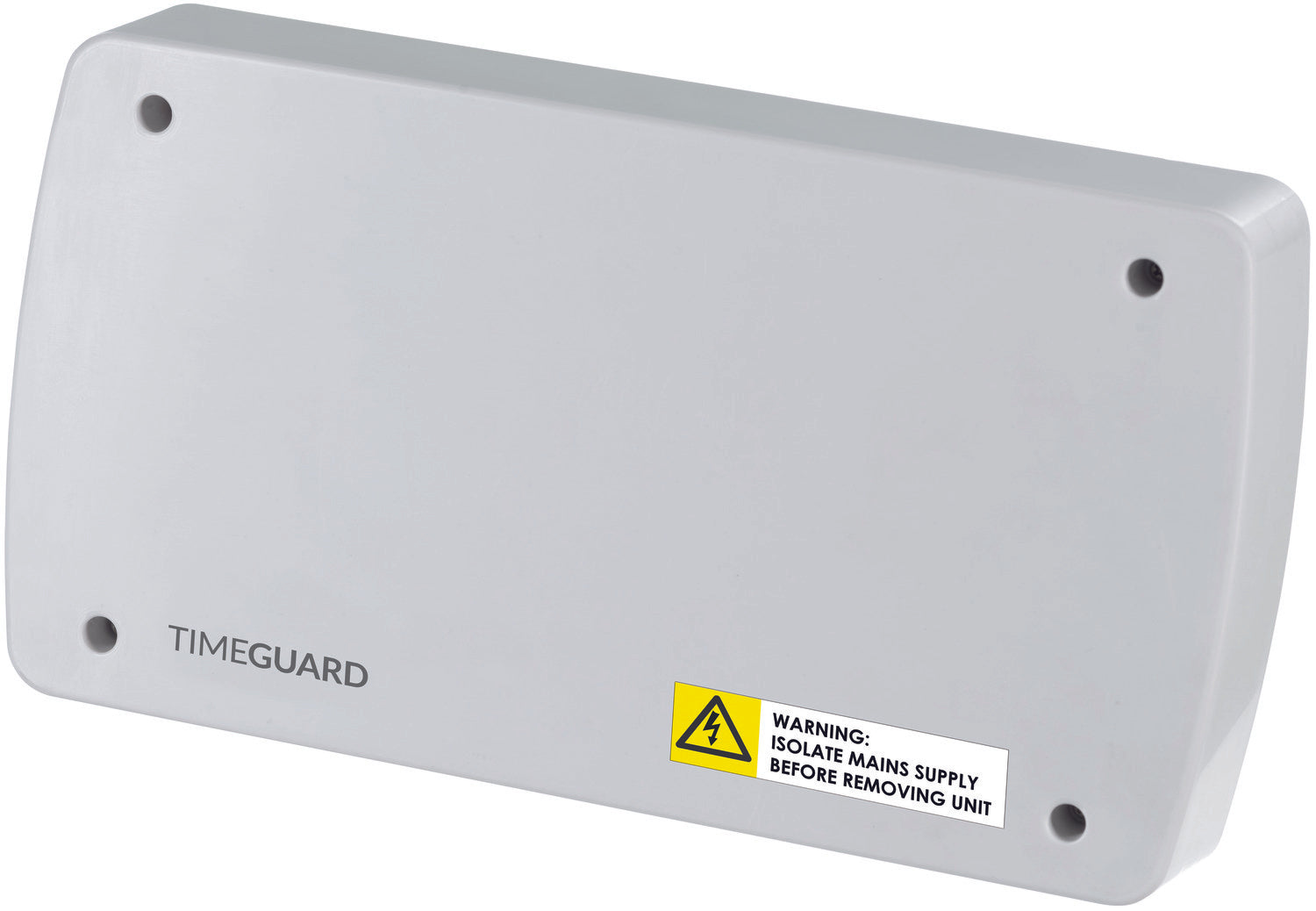

The TRT049N wiring centre box is designed as a centralised control hub for heating and hot-water systems, offering a clean, organised platform for interconnecting multiple controls and components. It features a robust plastic enclosure that mounts neatly in utility rooms, boiler rooms or service cupboards and provides space for up to multiple low-voltage and mains device terminations. The box includes pre-arranged knock-outs for cables and accessible internal rail mounting, allowing installers to secure relays, timers, thermostats and junctions in one easily managed location.

During operation, the wiring centre supports both low-voltage and loads up to 16 A (depending on the internal equipment fitted), making it suitable for managing multiple heating zones, boiler interlocks and switch-gear arrangements. Its design helps reduce installation time, improve cable routing clarity, and maintain a tidy and safe layout in accordance with wiring regulations. The enclosure is lockable or screw-secured for safety and is sized to accommodate a variety of standard controls while maintaining service access.

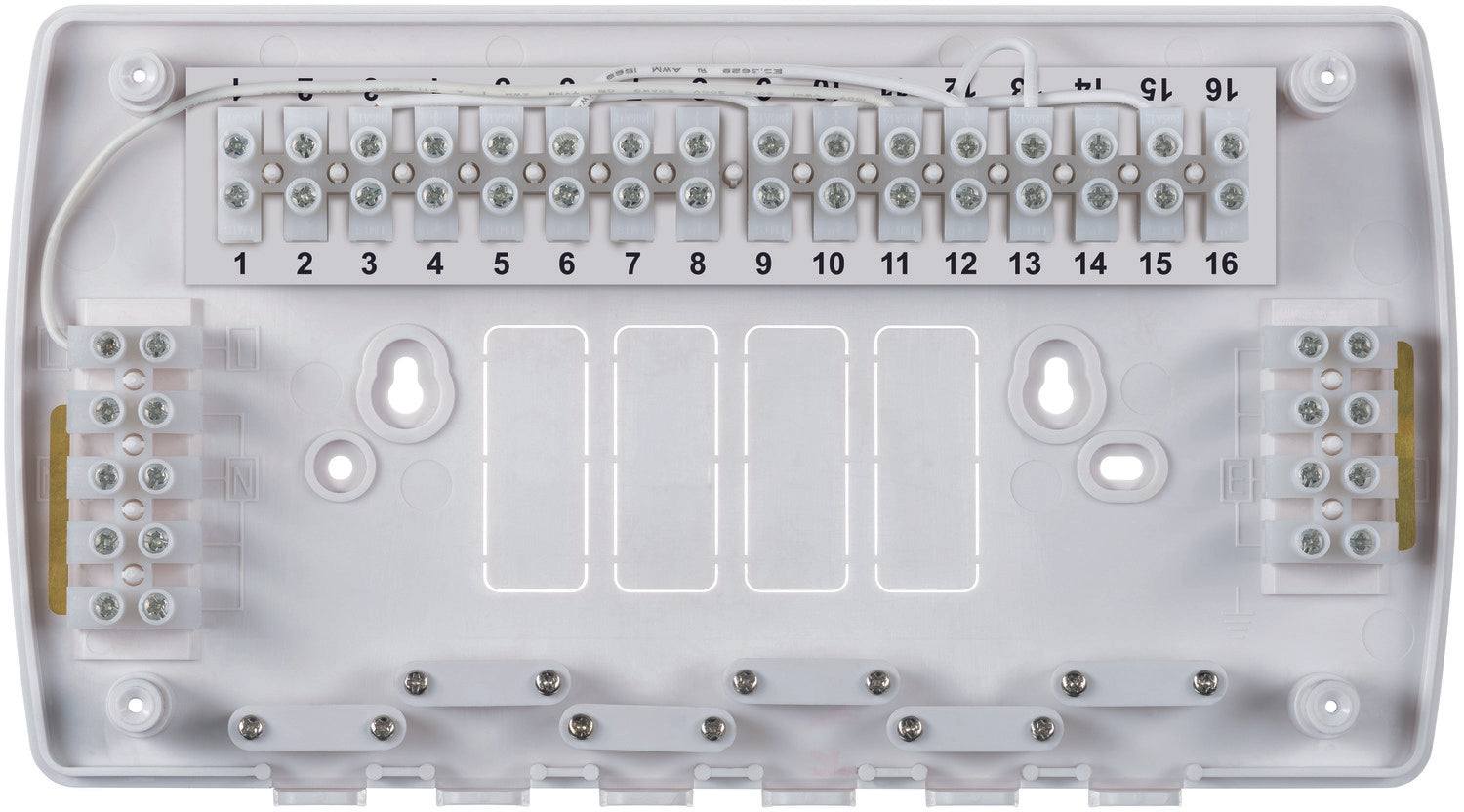

For future flexibility, the TRT049N supports the addition of timed programmers, zone valves and ancillary control devices. With clear internal labelling, provision for DIN-rail mounting, and terminal rows segregated for live, neutral and control circuits, it simplifies complex installations. The wiring centre is compatible with standard UK wiring practices and helps installers standardise setup across multiple projects or zones.

Downloads

Download trt049n-spec-sheet

Specification
