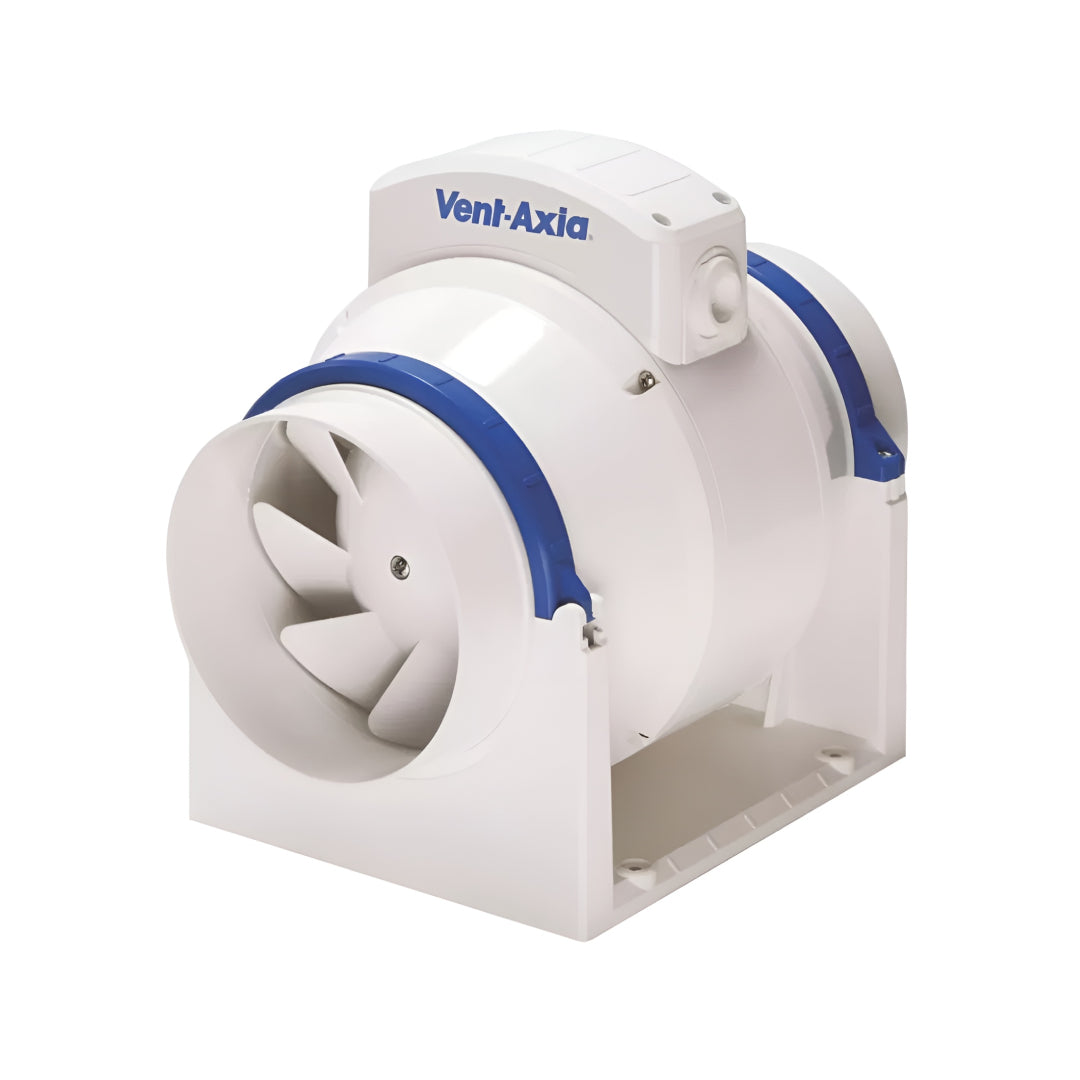

Vent-Axia Acm 125T Mixed Flow Fan Erp Version - 17105020
Tap to zoom Tap to exit zoom

Vent-Axia Acm 125T Mixed Flow Fan Erp Version - 17105020

Quick Find Code: 17105020

2 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)
  • Aesthetically pleasing with wipe clean polymer
  • Two speed selectable motor
  • Designed to meet IP44
  • Simple Installation
  • Optimise fan performance by using an approved Vent

Vent-Axia Acm 125T Mixed Flow Fan Erp Version - 17105020

Quick Find Code: 17105020

2 Year Warranty
Free Delivery on orders over £30 (excluding Highlands and Islands)
  • Aesthetically pleasing with wipe clean polymer
  • Two speed selectable motor
  • Designed to meet IP44
  • Simple Installation
  • Optimise fan performance by using an approved Vent

£129.95 (inc. VAT)

Show ex. VAT

Vent Axia

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
3+£127.36Save 2%
6+£126.06Save 3%

Product Overview

The Vent-Axia ACM 125T MIXED FLOW FAN ERP VERSION is an energy efficient Mixed Flow In-Line fan, quieter than any other product on the market.

ACM is now in a range of six products in the range which have been designed for use with rigid and flexible ducting. In Line Mixed Flow fans offer two and half times the pressure of conventional axial fans, are dimensionally more compact making them ideal for many ducted applications.

The impeller blade design with guide vanes provides optimum pressure characteristics and simple connectivity and quieter more efficient running provides the complete solution.

The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions and can be mounted to meet its optimum performance.


Technical Specifications
  • Length: 259mm
  • Colour: White
  • Voltage: 220-240
  • IP Rating: IP44
  • Diameter: 178mm
  • Power Consumption: 30
  • Noise Level: 25
  • Pull Cord: Yes
  • Hole size: 120+153.5
  • Number Of Speeds: 3
  • Maximum Input Current: 1.5

Features:
  • Three speed motor
  • Removable motor core assembly
  • Rotating motor chassis assembly
  • IP44 rated
  • Aesthetically pleasing with wipe clean polymer casing
  • Sound data from independent testing
  • Running speed selected on installation

Downloads

Download ACM Instruction Manual

Specification

Applicable AreaBathroom, Commercial, Laundry Room, Office, Toilet, Warehouse
Extractor TypeInline
Fan Size Diameter125 mm
Fan Size Diameter Inches5 INCH
Fan Speeds3
Finish Or ColourWhite
IP RatingIP44
Minimum Voltage220 v
MountingCeiling
Noise Level25 Db
Number Of Speeds3
power consumption30 w
Pull CordYes
Voltage240 v
Diameter178 mm
Length259 mm
