Product Overview

Vent-Axia has designed a complete range of Mixed Flow In-Line fans that are now quieter than any other product on the market.  The impeller blade design with guide vanes provides optimum pressure characteristics and simple connectivity and quieter more efficient running provides the complete solution. The product is mounted using two straps that secure the motor chassis assembly to the footplate. The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions and can be mounted to meet its optimum performance.

Criteria

• Specification:
• 0.145 (FID, m³/h) Extract Performance
• 36 (dB(A) @3m) Sound Pressure Level
• 48W Electrical Power Rating
• 0.21Amps
• Features:
  • New up to 8dBA quieter
  • Available in six sizes
  • Designed and manufactured in UK
  • Two speed selectable motor
  • 100,125,150 New models
  • Timer versions 100T & 150T (not speed controllable)
  • Simple Installation
  • Detachable duct spigots
  • Rotating motor chassis assembly
  • Supplied complete for installation
  • Optimise fan performance by using an approved Vent Axia
    controller
  • Designed to meet IP44
  • Aesthetically pleasing with wipe clean polymer
  • Easy accessible terminal block with 20mm entry
• Guarantee: 2 Years
• Manufacturer Code: 17106020

Features

Short Description

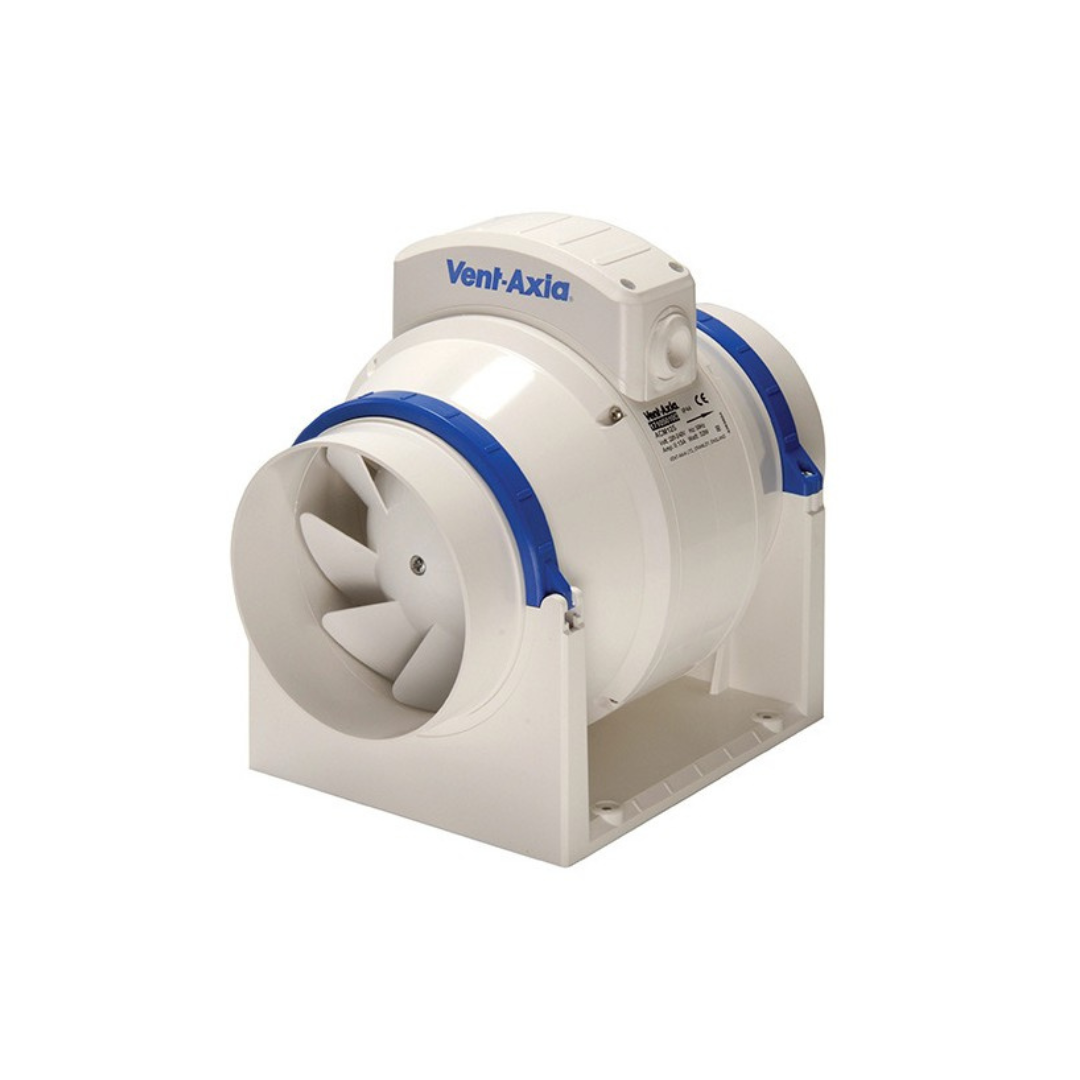

Vent-Axia ACM150T Inline Mixed Flow Fan with Timer (17106020)

Specification

• 0.145 (FID, m³/h) Extract Performance
• 35 (dB(A) @3m) Sound Pressure Level
• 48W Electrical Power Rating
• 0.21Amps



Downloads

Download 17106020 Product Manual

Specification

Applicable Area	Bathroom, Commercial, Laundry Room, Office, Toilet, Warehouse
Collection Name	ACM
Duct Size Diameter	150 mm
Extractor Type	Inline
Fan Size Diameter	6 INCH
Fan Speeds	3
Finish Or Colour	White
IP Rating	IP44
Mounting	Ceiling
Noise Level	36 Db
Noise Level Average	36 Db
power consumption	48 w
Timer	Yes
Voltage	240 v
Depth	270 mm
Height	210 mm
Width	270 mm
