Vent-Axia ACM200 Mixed Flow 200mm (8") In-line Extractor Fan - 17108010 has a rating of 5 stars based on 1 reviews.
Vent-Axia ACM200 Mixed Flow 200mm (8") In-line Extractor Fan - 17108010, Image of 1
SALE

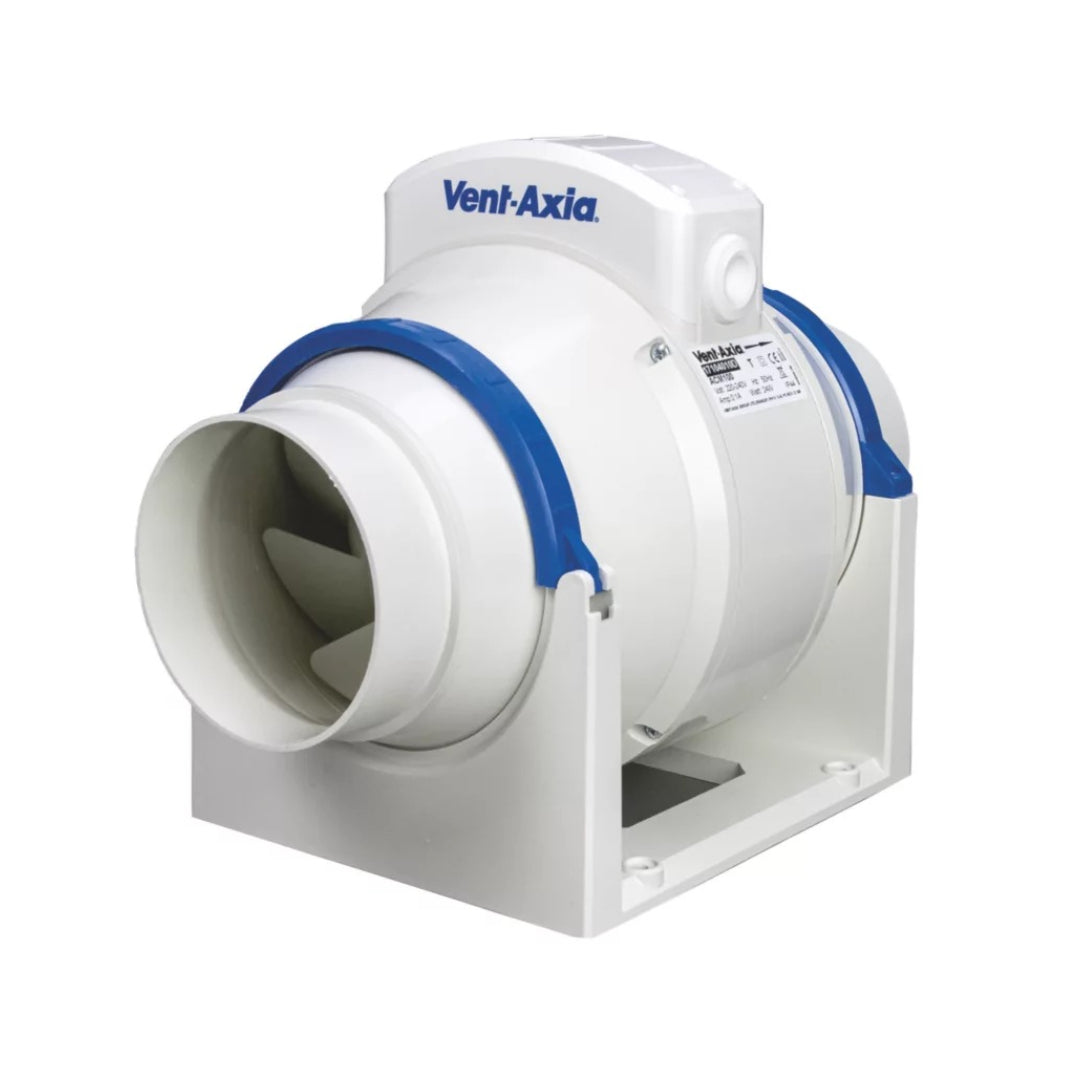

Vent-Axia ACM200 Mixed Flow 200mm (8") In-line Extractor Fan - 17108010

Quick Find Code: 17108010

2 Year Warranty
Free Next Day Delivery!*
  • Three speed motor
  • Removable motor core
  • Rotating motor chassis
  • Running speed selected on installation
  • Designed and manufactured in the UK

Vent-Axia ACM200 Mixed Flow 200mm (8") In-line Extractor Fan - 17108010

Quick Find Code: 17108010

2 Year Warranty
Free Next Day Delivery!*
  • Three speed motor
  • Removable motor core
  • Rotating motor chassis
  • Running speed selected on installation
  • Designed and manufactured in the UK

£395.25
£263.50 (inc. VAT)

You save: £131.75

Show ex. VAT

Vent Axia

Buy more, save more!

QuantityPrice (inc. VAT)Saving Per Item
10+£258.23Save 2%
20+£252.96Save 4%
30+£247.69Save 6%

Product Overview

This in-line mixed-flow extractor fan features a 200 mm (8″) duct connection and is engineered for larger ducted ventilation systems in domestic or light commercial spaces. Its mixed-flow impeller generates significantly higher pressure than typical axial fans, making it capable of maintaining airflow through longer or more complex duct runs.

Installation flexibility is a key strength: the ACM200 allows both horizontal and vertical mounting, and comes with a removable motor core and a rotating chassis to accommodate confined or awkward spaces. It is finished in a wipe-clean polymer casing and rated to IP44, suitable for many indoor applications including bathrooms or utility spaces.

Performance-wise, this model is rated for airflow up to about 240 litres per second (≈ 864 m³/h) under certain conditions, with noise levels around 40-42 dB(A) at 3 m at higher speed settings. The motor is selectable in three speeds at installation, and the unit is built for installation simplicity and long-term reliability.

Downloads

Download 17108010 Product Manual

Specification

Applicable AreaBathroom, Commercial, Laundry Room, Office, Toilet, Warehouse
Collection NameACM
Domestic or CommercialCommercial
Duct Size Diameter200 mm
Extraction Rate Litres Second240 L/s
Extractor TypeInline
Fan Size Diameter8 in
Finish Or ColourWhite
IP RatingIP44
MountingCeiling
MPN17108010
Noise Level Maximum41 dB
Number Of Speeds3
Old GTIN5015135094010
power consumption110 W
Voltage240 V
Depth300 mm
Height276 mm
Width223 mm
