Product Overview

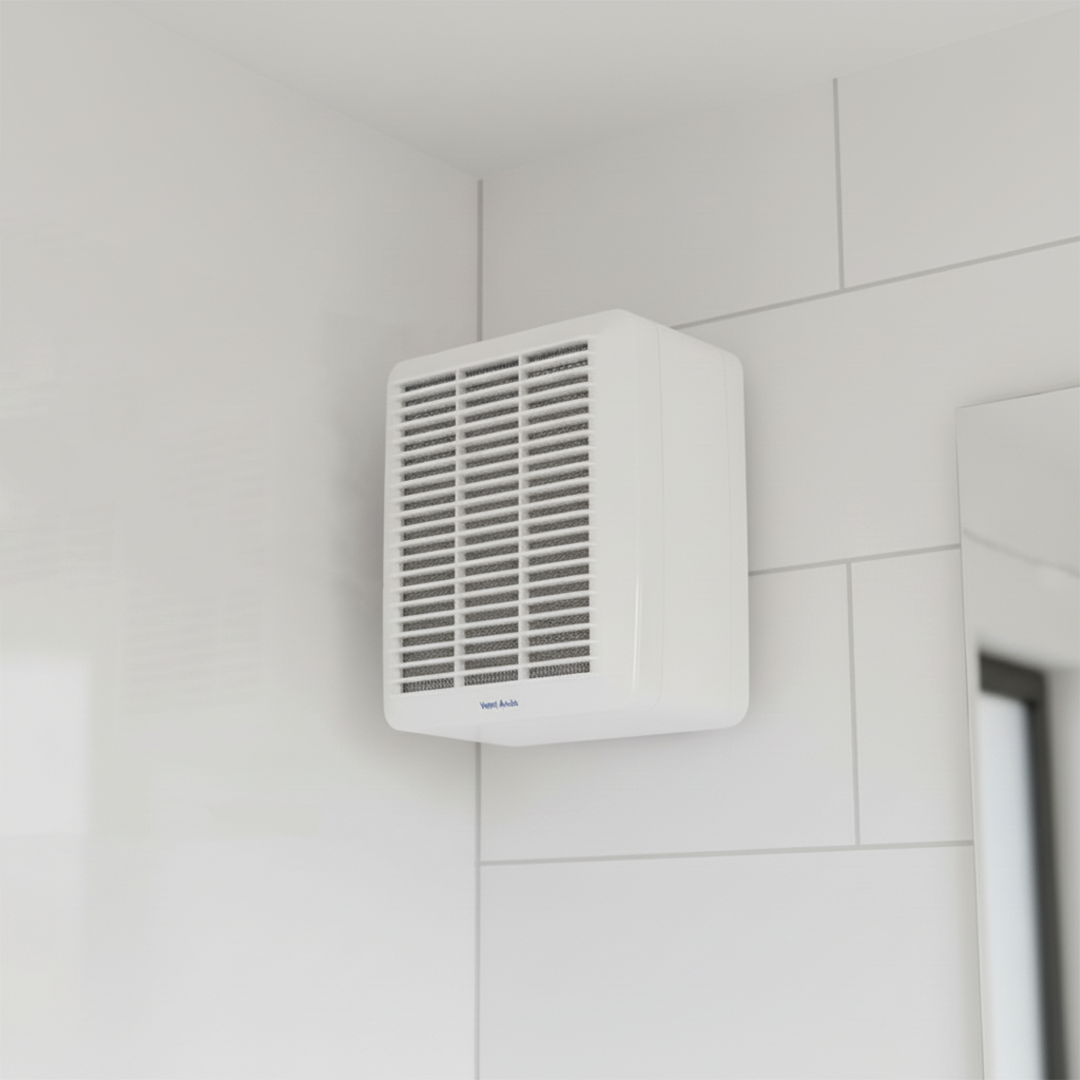

The Vent-Axia Centrif Duo Humidity Timer Pullcord is part of a series of 100mm centrifugal extract or fans for designed for the domestic environment and perfect for use in kitchens, utility rooms and large bathrooms. Surface mounting directly into standard 100mm diameter ducting, through the wall or ceiling installation.

The range is designed to provide extraction levels that comply with Building Regulation requirements, with special humidity sensing variants for local authority use.

The Centrif Duo Humidity Timer Pullcord is Intermittent on 1 of 2 speeds (Utility or Kitchen selectable at installation). Operation by integral humidity sensor or pullcord. Separate speeds selectable for humidistat and pullcord. Optional continuous trickle speed available at installation.

The motor features greased-for-life ball bearings which allow the fan to be installed at any angle. Insulation is Class E. Double insulated appliance. Supply voltage 220- 240V/1/50Hz.

The Centrif Duo has a 100mm circular spigot. The Flush mounting kit enables the spigot to be converted to a side outlet. The spigot also encloses a built-in, spring operated back-draught shutter. The Centrif Duo Range can be wall mounted using a telescopic wall fitting kit available as an accessory (requires a 115mm diameter hole).

Criteria

• Colour: White
• IP Rating: IPX4
• Width: 231mm
• Features:
  • Humidity sensing model for automatic operation
  • Includes washable grease filter and removable grille assembly for easy cleaning
  • Meets current Building Regulations Approved Document F
• Warranty: 5 Years
• Barcode: Timer
• Timer: Yes
• Humidistat: Yes
• Mounting: Wall / Ceiling
• Pull Cord: Yes
• Hole size: 100
• Ceiling/Wall: Yes
• Number Of Speeds: 2
• With Shutters: Yes
• Depth: 137mm
• Height: 261mm

Features

• Humidity sensing model for automatic operation
• Includes washable grease filter and removable grille assembly for easy cleaning
• Meets current Building Regulations Approved Document F

Short Description

Vent-Axia Centrif Duo Humitdity Timer Pullcord

Downloads

Download 256420 Product Manual

Specification

Airflow	220
Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Backdraft Shutter	Yes
Bathroom Zones	Zone 1
Collection Name	Centrif Duo
Duct Size Diameter	100 mm
Extractor Type	Centrifugal
Fan Speeds	2
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX4
Mounting	Panel, Wall
Noise Level Average	38 Db
Noise Level Maximum	38 Db
Number Of Speeds	2
power consumption	41 w
Pull Cord	Yes
Voltage	240 v
Depth	264 mm
Height	246 mm
Width	264 mm
