Product Overview

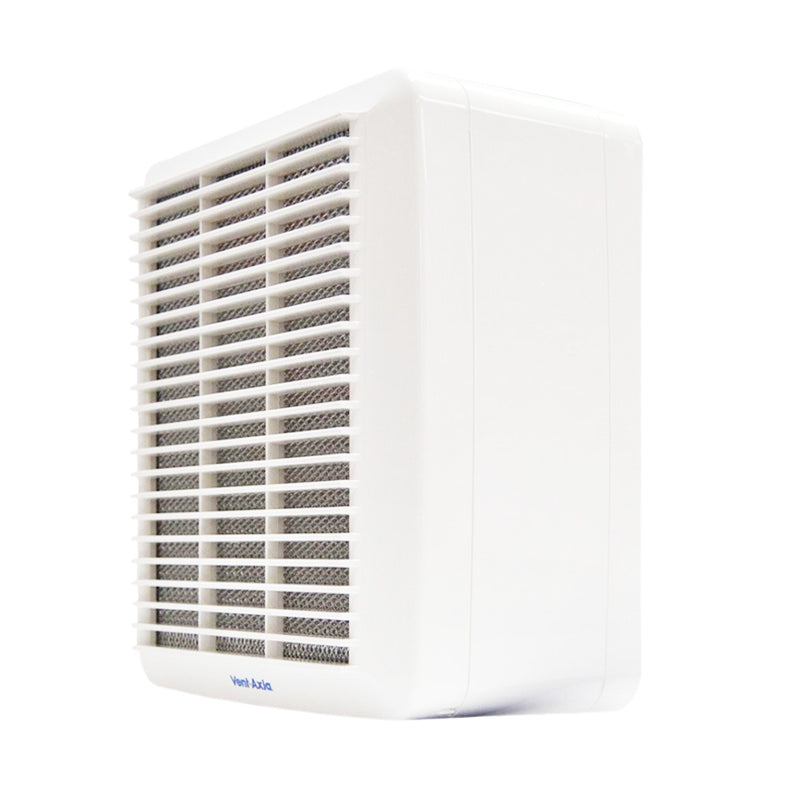

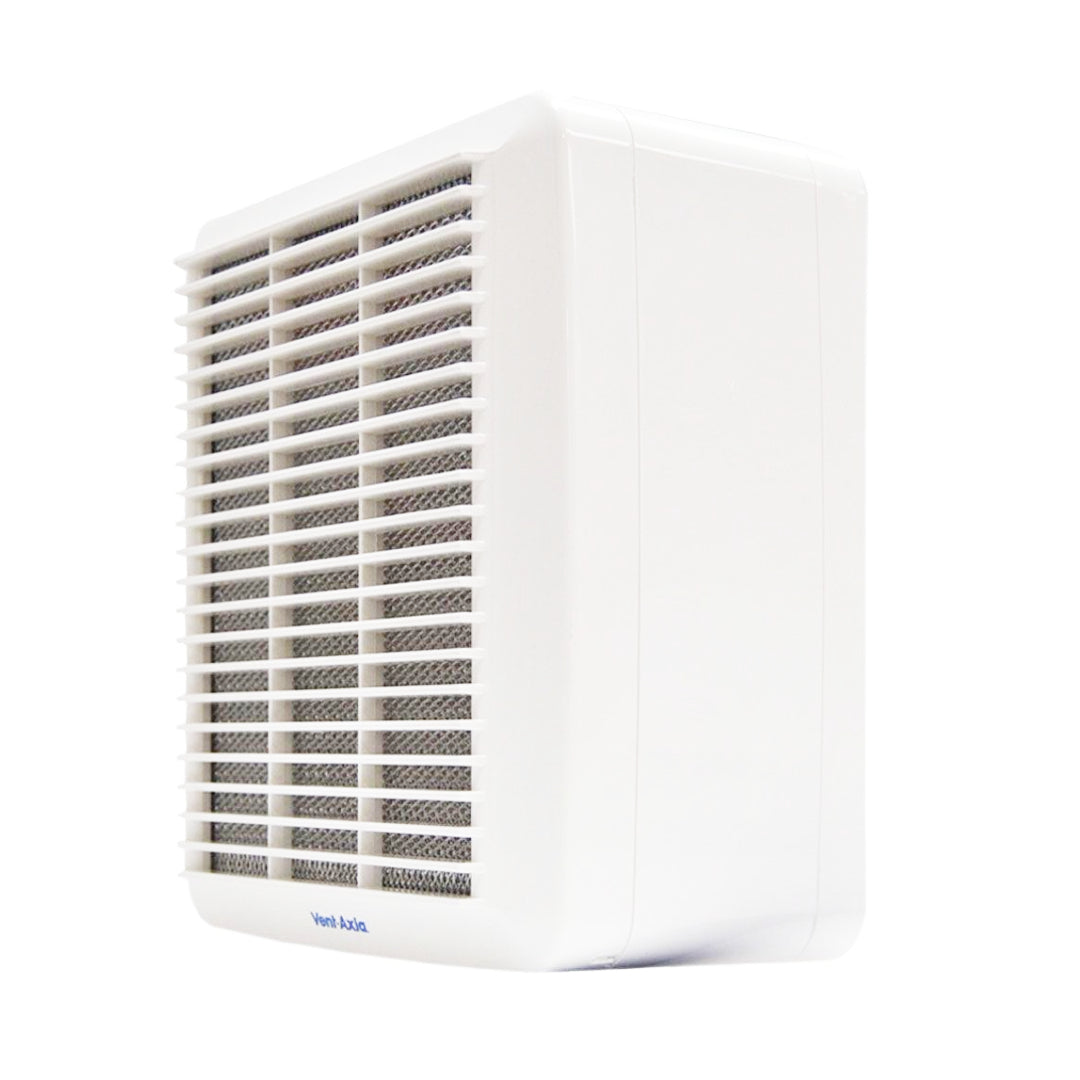

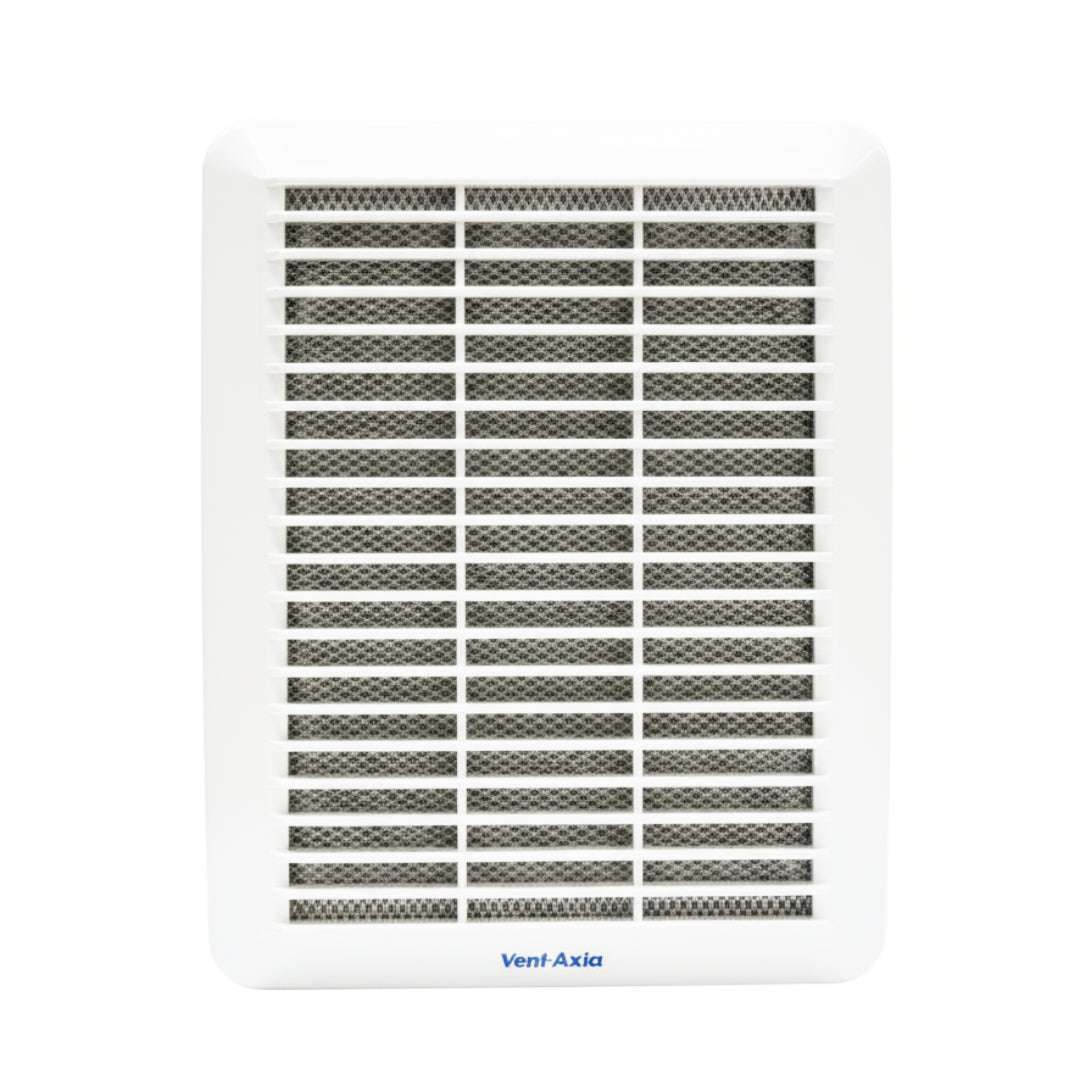

The Vent-Axia Centrif Duo Pullcord Standard Model is part of a series of 100mm centrifugal extractor fans for the domestic environment and use in kitchens, utility rooms and large bathrooms. Surface mounting directly into standard 100mm diameter ducting, through the wall or ceiling installation.

The range is designed to provide extraction levels that comply with Building Regulation requirements, with special humidity sensing variants for local authority use.

The Centrif Duo Humidity Timer Pullcord is Intermittent on 1 of 2 speeds (Utility or Kitchen selectable at installation). Operation by integral humidity sensor or pullcord. Separate speeds selectable for humidistat and pullcord. Optional continuous trickle speed available at installation.

The motor features greased-for-life ball bearings which allow the fan to be installed at any angle. Insulation is Class E. Double insulated appliance. Supply voltage 220- 240V/1/50Hz.

The Centrif Duo has a 100mm circular spigot. The Flush mounting kit enables the spigot to be converted to a side outlet. The spigot also encloses a built-in, spring operated back draught shutter. The Centrif Duo Range can be wall mounted using a telescopic wall fitting kit available as an accessory (requires a 115mm diameter hole).

Criteria

• Warranty: 5 Year
• Dimensions (W x D x H): 231x137x261mm
• Colour: White
• Timer: Yes
• Hole Diameter: 100
• Mounting: Wall / Ceiling
• Pullcord: Yes

Short Description

Vent-Axia Centrif Duo Pullcord Standard Model

Downloads

Download 256120 Product Manual

Specification

Airflow	220
Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Bathroom Zones	Zone 1
Collection Name	Centrif Duo
Duct Size Diameter	100 mm
Extractor Type	Centrifugal
Fan Size Diameter	120 mm
Fan Speeds	2
Finish Or Colour	White
IP Rating	IPX4
Mounting	Panel, Wall
Noise Level	38 Db
Noise Level Average	38 Db
Noise Level Maximum	38 Db
Number Of Speeds	2
power consumption	41 w
Pull Cord	Yes
Voltage	240 v
Depth	270 mm
Height	246 mm
Width	270 mm
