Product Overview

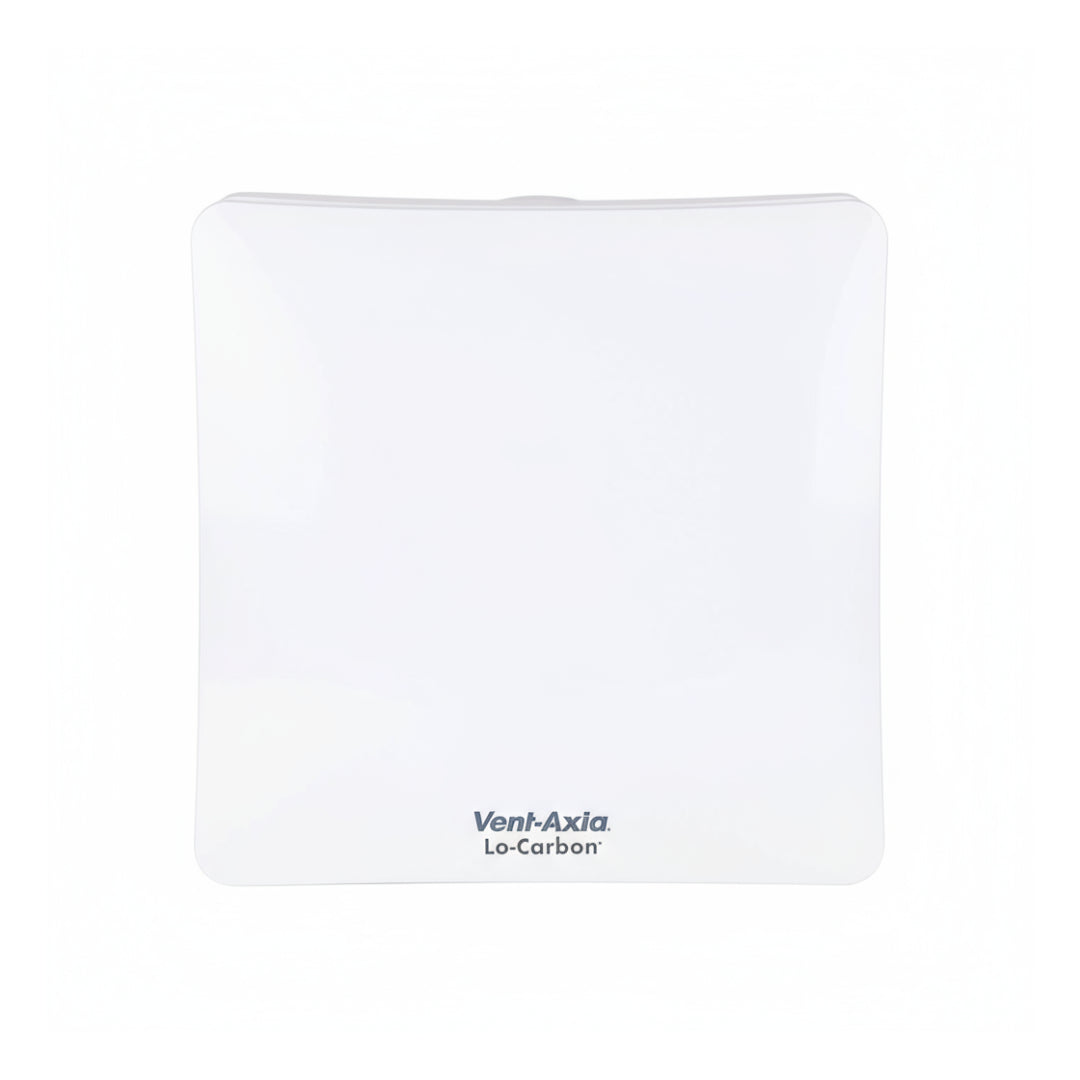

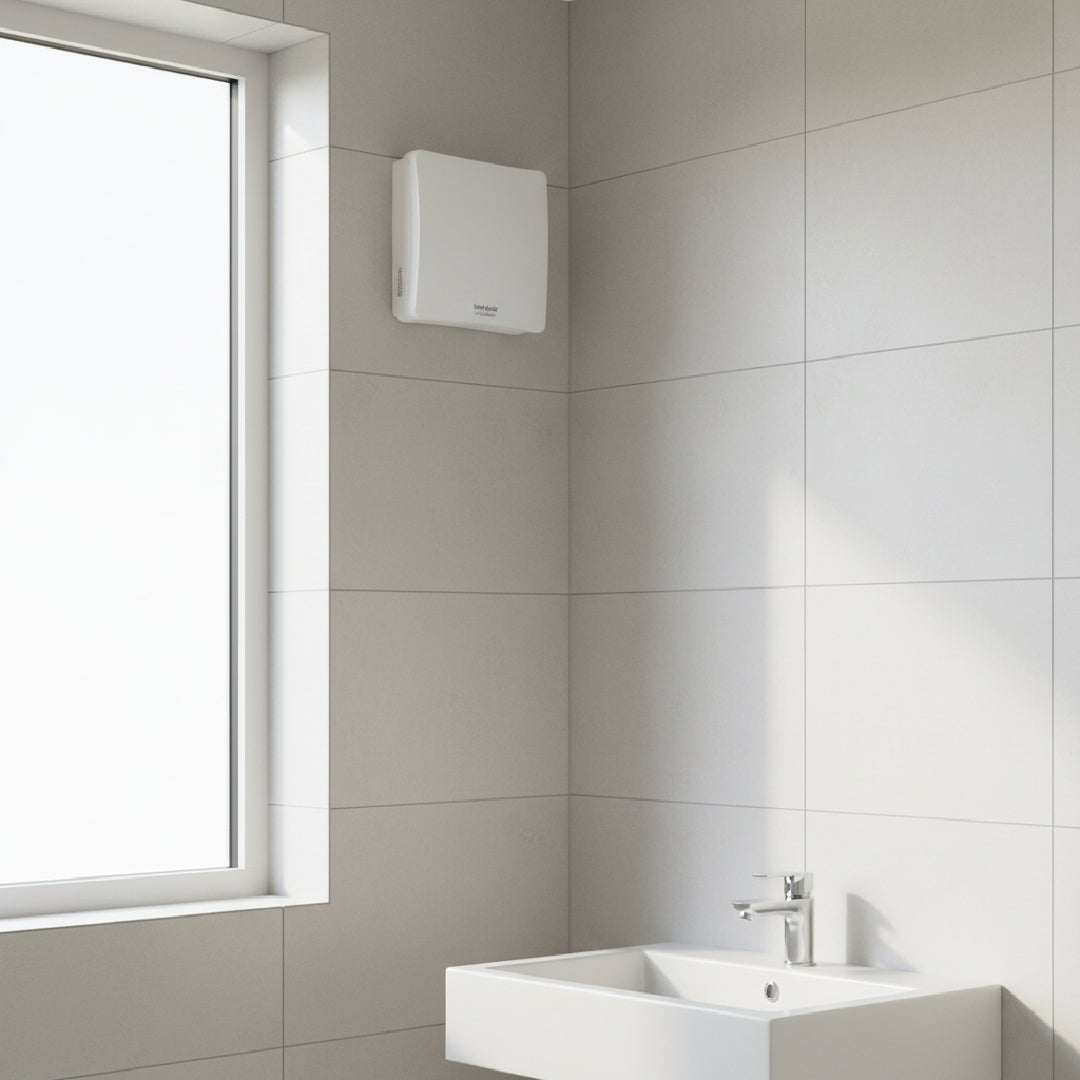

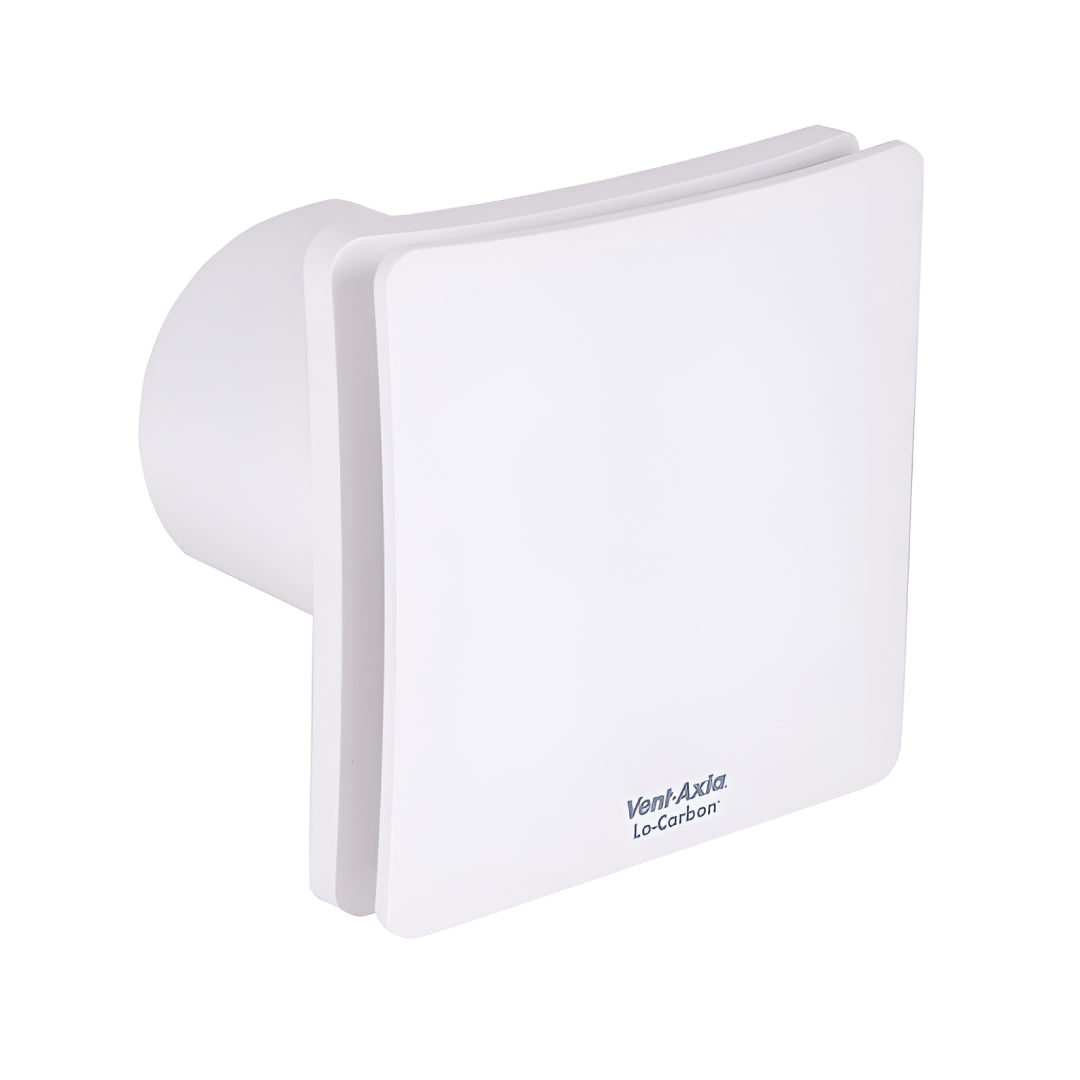

The Vent-Axia Lo Carbon Centra Extractor Fan is low voltage and has a humidistat, timer and pull cord. It is a dual speed continuous running fan for kitchens, utility rooms, bathrooms and toilet, with trickle speed selection at installation. Automatically boosted by the built in humidistat or the built in pullcord which activates the overrun timer (adjustable up to 30 minutes). SELV (Safety Extra Low Voltage).

Criteria

• Specification:
  • Extract Performance (l/s) Low: 6
  • Extract Performance (l/s) High: 9
  • Power consumption Low: 1.4W
  • Power consumption High: 1.6W
  • Power consumption Boost: 15W
  • Sound dB(A)@ 3m Low: 10.8
  • Sound dB(A)@ 3m High: 15.5
  • Sound dB(A)@ 3m Boost: 2.4
  • Boost: 25.2
  • Dimensions: H: 160mm x W: 160mm x D: 150mm
• Features:
  • Part F compliant, System 3 Continuous mechanical extract
  • SAP Appendix Q eligible - Low SFP on SAP Q
  • Quietest dMEV available
  • Discreet, tasteful styling
  • Single fan for use in all applications
  • IPX4 rated - IPX7 rated (SELV)
  • Constant volume option
  • Normal and Boost speeds
  • Lo-Carbon motor offering 90% energy savings and long life
  • 5 Year Motor Guarantee
  • Suitable for wall, ceiling, panel and window mounting
  • SELV Models - Supplied with a remote transformer
  • Suitable for ‘Zone 1’ installation
• Guarantee: 5 Years
• Manufacturer Code: 443177

Features

• Part F compliant, System 3 Continuous mechanical extract
• SAP Appendix Q eligible - Low SFP on SAP Q
• Quietest dMEV available
• Discreet, tasteful styling
• Single fan for use in all applications
• IPX4 rated - IPX7 rated (SELV)
• Constant volume option
• Normal and Boost speeds
• Lo-Carbon motor offering 90% energy savings and long life
• 5 Year Motor Guarantee
• Suitable for wall, ceiling, panel and window mounting
• SELV Models - Supplied with a remote transformer
• Suitable for ‘Zone 1’ installation

Specification

• Extract Performance (l/s) Low: 6
• Extract Performance (l/s) High: 9
• Power consumption Low: 1.4W
• Power consumption High: 1.6W
• Power consumption Boost: 15W
• Sound dB(A)@ 3m Low: 10.8
• Sound dB(A)@ 3m High: 15.5
• Sound dB(A)@ 3m Boost: 2.4
• Boost: 25.2
• Dimensions: H: 160mm x W: 160mm x D: 150mm

Specification

Applicable Area	Bathroom, Toilet
Collection Name	Lo-Carbon Centra
Duct Size Diameter	105 mm
Extractor Type	Axial
Fan Size Diameter	100 mm
Fan Size Diameter Inches	4 INCH
Fan Speeds	3
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX7
Mounting	Ceiling, Panel, Wall, Window
Pull Cord	Yes
Timer	Yes
Voltage	12 v
Depth	168 mm
Height	162 mm
Width	168 mm
