Product Overview

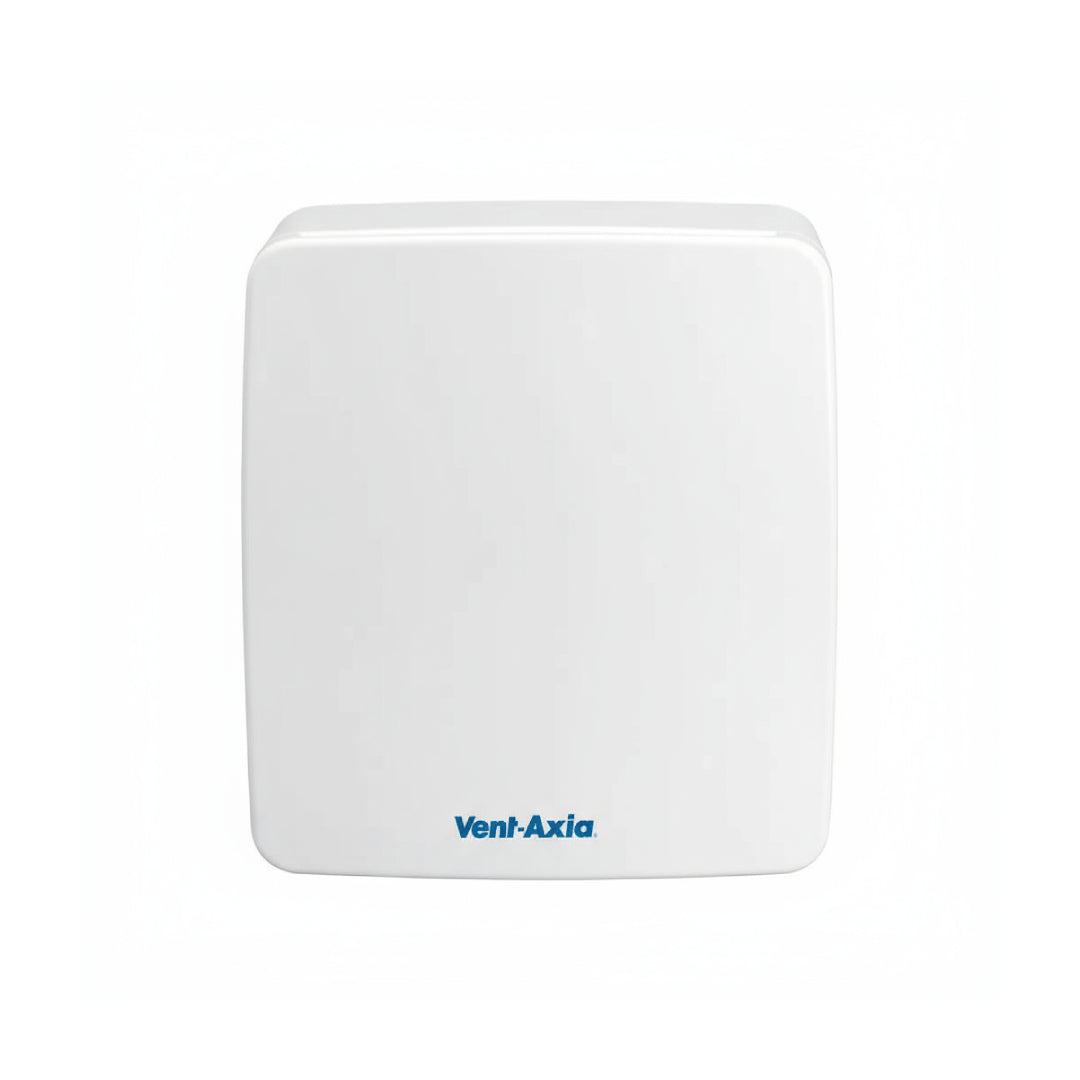

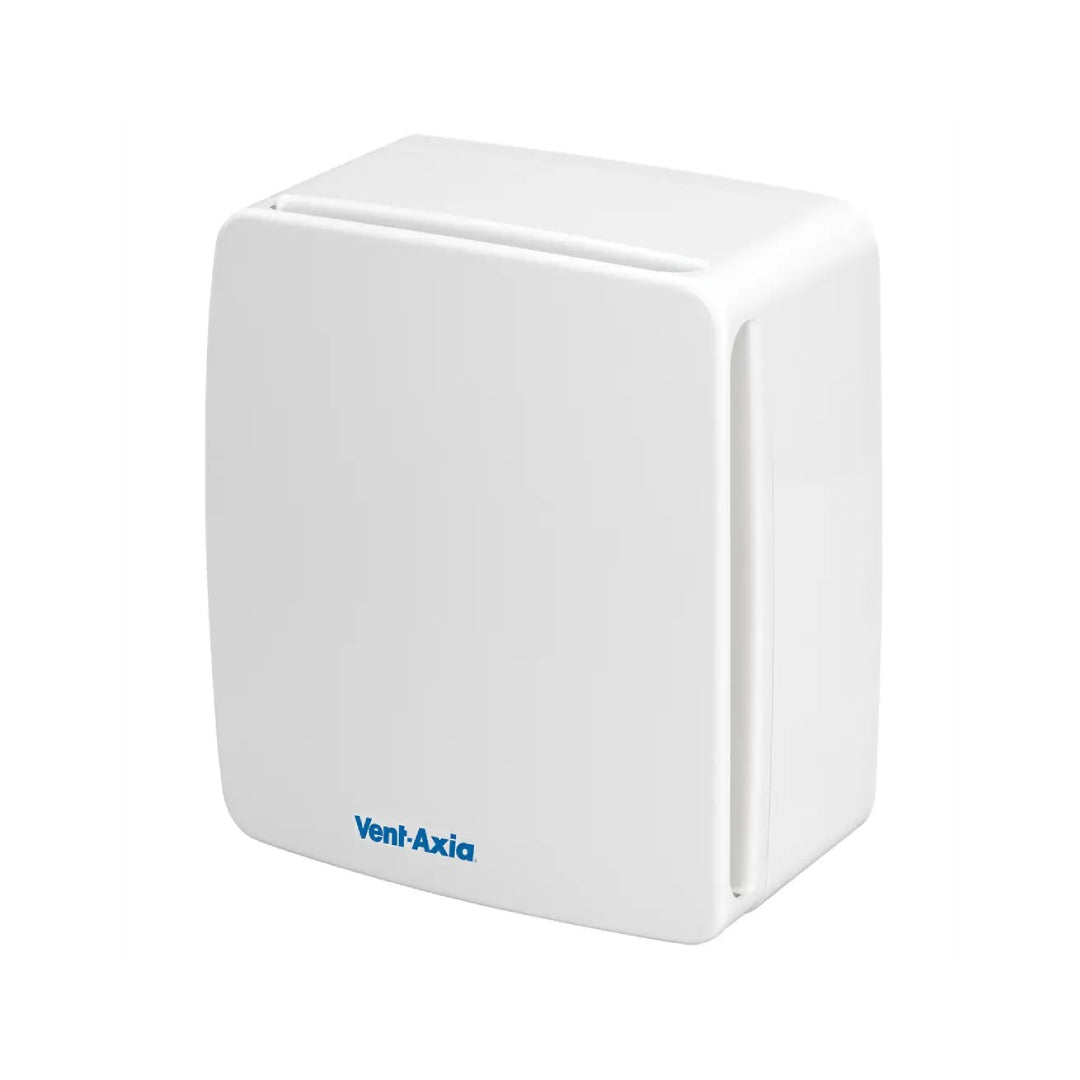

The Vent-Axia Lo-Carbon Quadra Timer & Pullcord offers a single fan suitable for surface or flush mounting.

Low speed selectable between 6, 9 and 12l/s and high between 15, 30 and 60l/s all with through the wall or two ducted selections to ensure installed performance is met. The Lo-Carbon Quadra has been designed with ventilation for every room in mind.

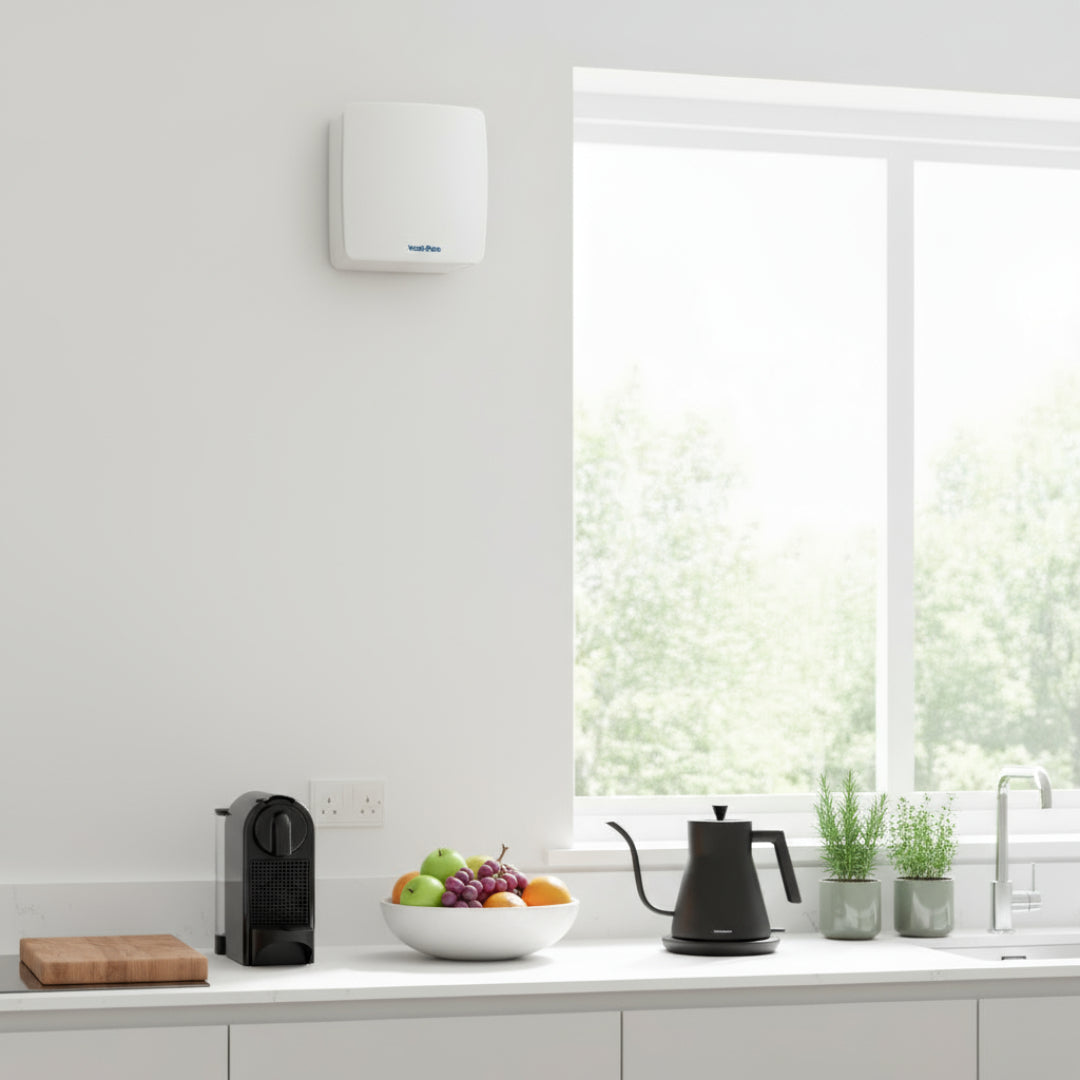

With discrete aesthetics and low noise levels due to an accurately balanced impeller, the Lo-Carbon Quadra is also one of the most unobtrusive centrifugal kitchen fans available.

The front cover design also provides no area for dirt to build-up, so it stays looking cleaner for longer.



Criteria

• Warranty: 5 Year
• Dimensions (W x D x H): 230X112x260mm
• Features:
  • Reduces the home’s carbon footprint, Long life Lo-Carbon motor lasts up to 5 times longer than conventional motors - Up to 60% energy saving
  • Meets current Building Regulations Approved Document F & L for intermittent or continuous use
  • Multi-orientation grille – grille can be rotated by 90/180 degrees to suit ceiling configuration requirements
  • Datalogger feature on Humidistat models
  • Recognised in SAP Appendix Q - Low SFP on SAP Q 0.38 W/l/
• Voltage: 220-240
• IP Rating: IPX4 & IPX7
• Colour: White
• Timer: Yes
• Water extraction rate: 6l/s to 60l/s
• Hole Diameter: 100
• Mounting: Wall / Ceiling
• Pullcord: Yes
• Trickle speeds: 6l/s to 60l/s
• Building Regulations Approved: F&L Compliant for intermitted or continuous use, System 3 Continous Mechanical Extract

Features

• Reduces the home’s carbon footprint, Long life Lo-Carbon motor lasts up to 5 times longer than conventional motors - Up to 60% energy saving
• Meets current Building Regulations Approved Document F & L for intermittent or continuous use
• Multi-orientation grille – grille can be rotated by 90/180 degrees to suit ceiling configuration requirements
• Datalogger feature on Humidistat models
• Recognised in SAP Appendix Q - Low SFP on SAP Q 0.38 W/l/

Key Features

• Reduces the home’s carbon footprint, Long life Lo-Carbon motor lasts up to 5 times longer than conventional motors - Up to 60% energy saving
• Meets current Building Regulations Approved Document F & L for intermittent or continuous use
• Multi-orientation grille – grille can be rotated by 90/180 degrees to suit ceiling configuration requirements
• Datalogger feature on Humidistat models
• Recognised in SAP Appendix Q - Low SFP on SAP Q 0.38 W/l/

Short Description

Vent-Axia Lo-Carbon Quadra Timer & Pullcord

Specification

Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Extractor Type	Centrifugal
Fan Speeds	6
Finish Or Colour	White
Minimum Voltage	220 v
Mounting	Ceiling, Panel, Wall
Pull Cord	Yes
Voltage	240 v
Depth	112 mm
Height	260 mm
Width	230 mm
